DIN Rail Mounted Power Supply

Specifications:
Model	IRM-20-5	IRM-20-12	IRM-20-24
Output Voltage	5Vdc	12Vdc ± 3%
Current	4000mA	1800mA	900mA
Supply	85 -264Vac	85 - 264Vac	85 - 264Vac
Dimensions	36 x 90 x 57mm	36 x 90 x 57mm	36 x 90 x 57mm
Weight	g	g	g

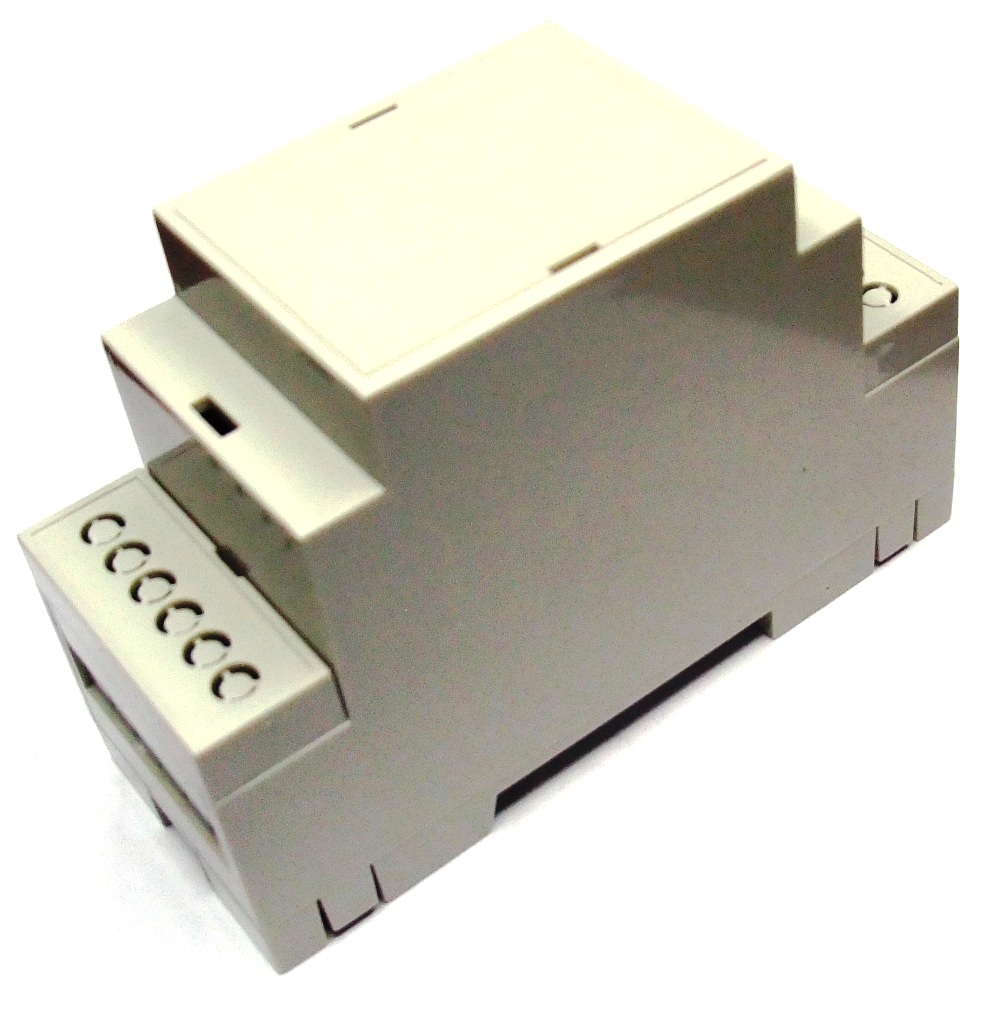

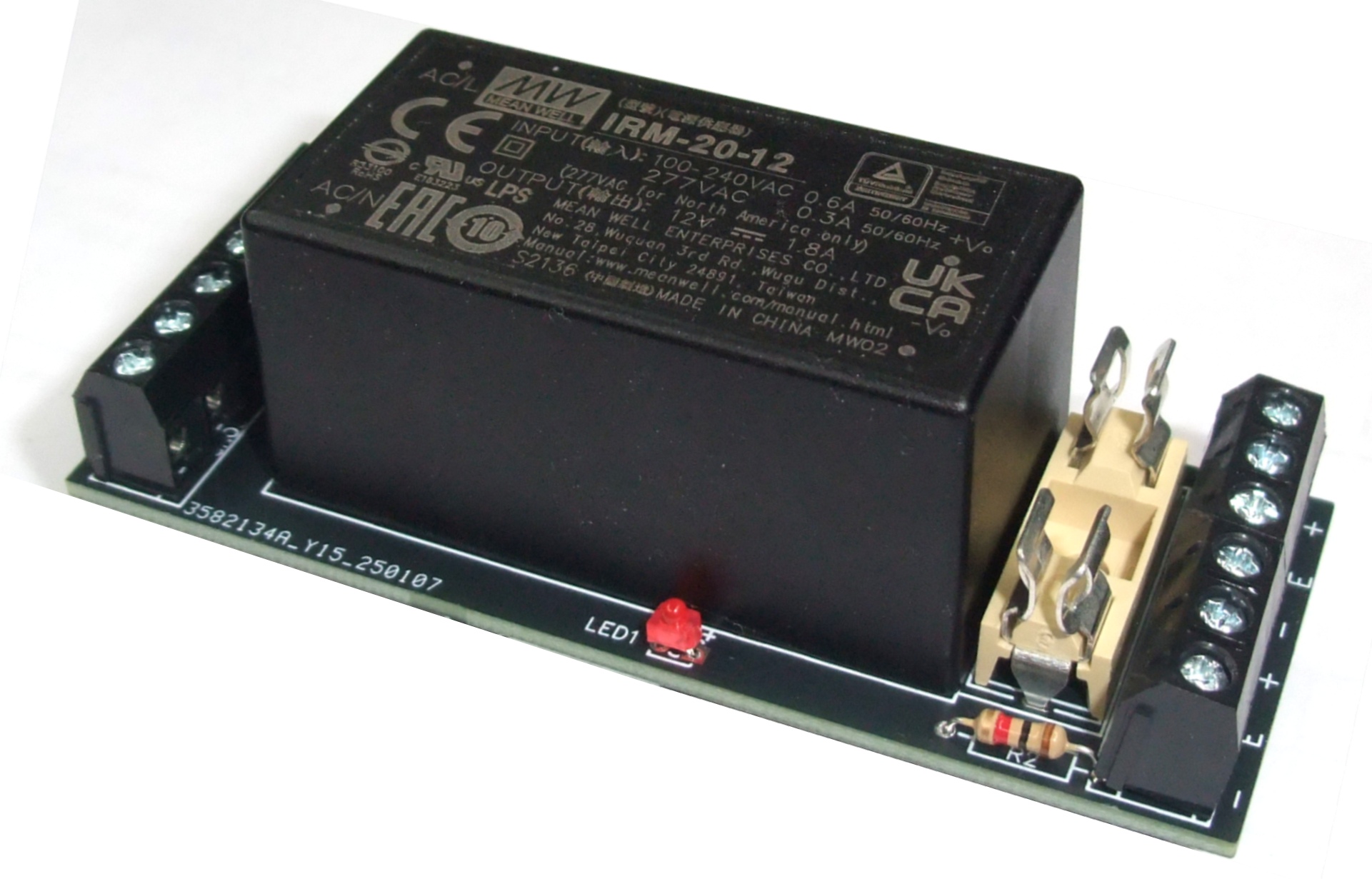

A compact switch mode power supply, based on MeanWell IRM-20 module. Designed for direct mounting on DIN rail. Available for 5 Volt, 12 Volt or 24 Volt DC operation. LED to indicate output voltage and suitable fused output.

Order Code		Each
425-305	DIN Rail Power Supply 5 Vdc	13.88
425-304	DIN Rail Power Supply 12 Vdc	14.00
425-306	DIN Rail Power Supply 24 Vdc	13.94
