Open Frame Chassis Transformers

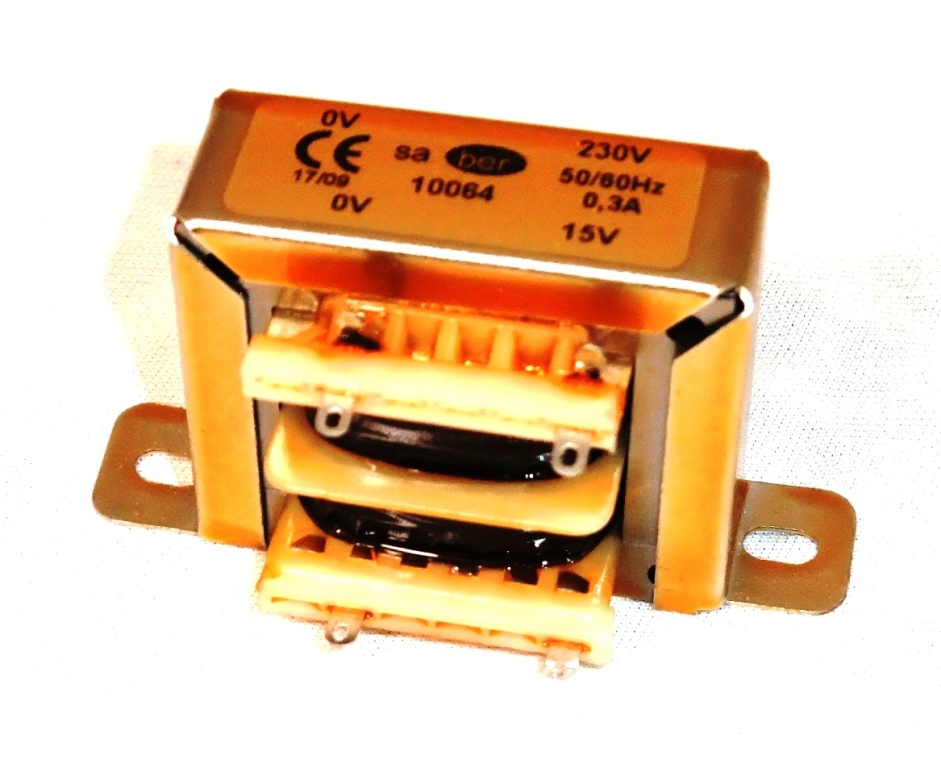

0 - 15v 0.3A 4.5VA Open Frame Transformer
Specifications:
Model 10064
Voltage 0 - 15v
Current 300mA
Rating 4.5VA
Dimensions 73 x 43 x 43mm
Fixing Centres 59mm
Weight 280g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and single secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-000 0 - 15v 0.3A 4.5VA Open Frame Transformer 7.73

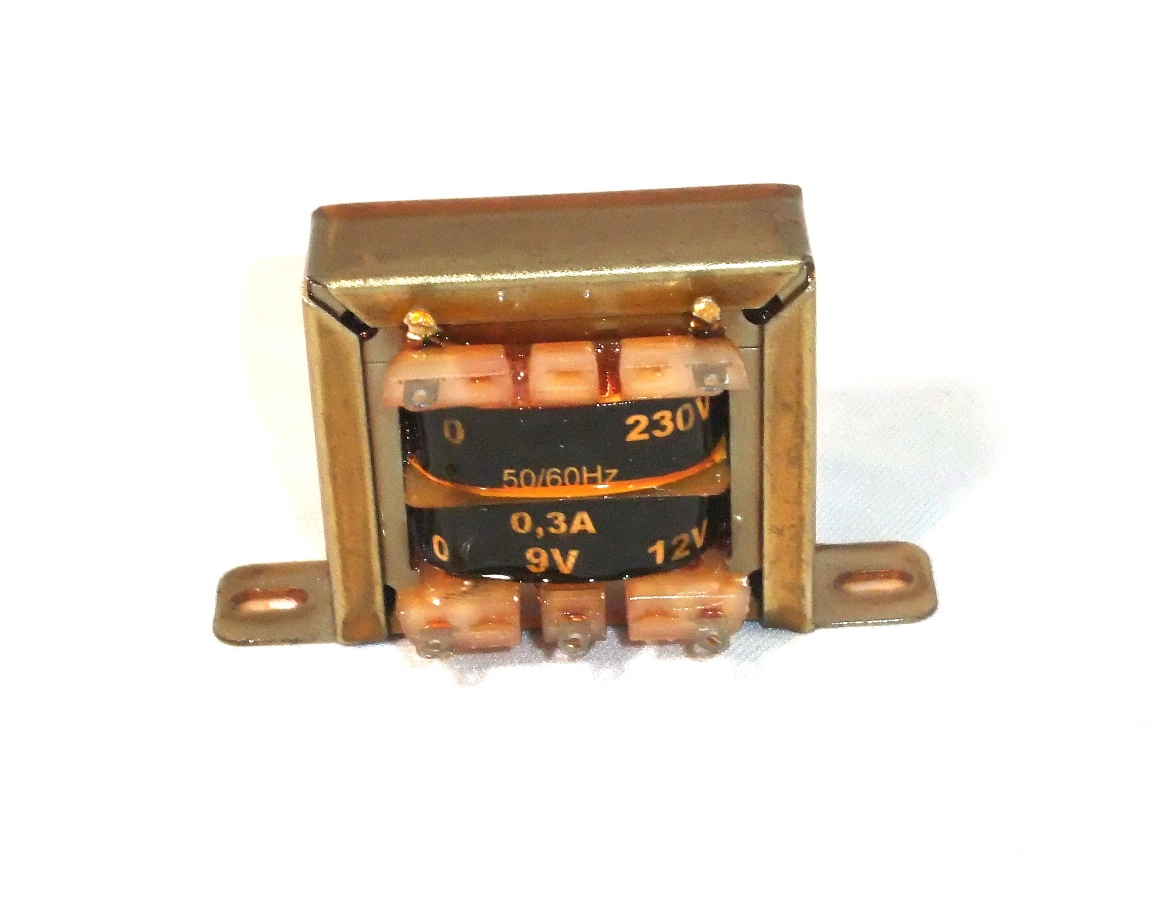

0 - 9 - 12v 0.3A 3.6VA Open Frame Transformer
Specifications:
Model 15976
Voltage 0 - 9 - 12v
Current 300mA
Rating 3.6VA
Dimensions 70 x 37 x 38mm
Fixing Centres 59mm
Weight 208g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and two secondary windings. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-005 0 - 9 - 12v 0.3A 3.6VA Open Frame Transformer 5.43

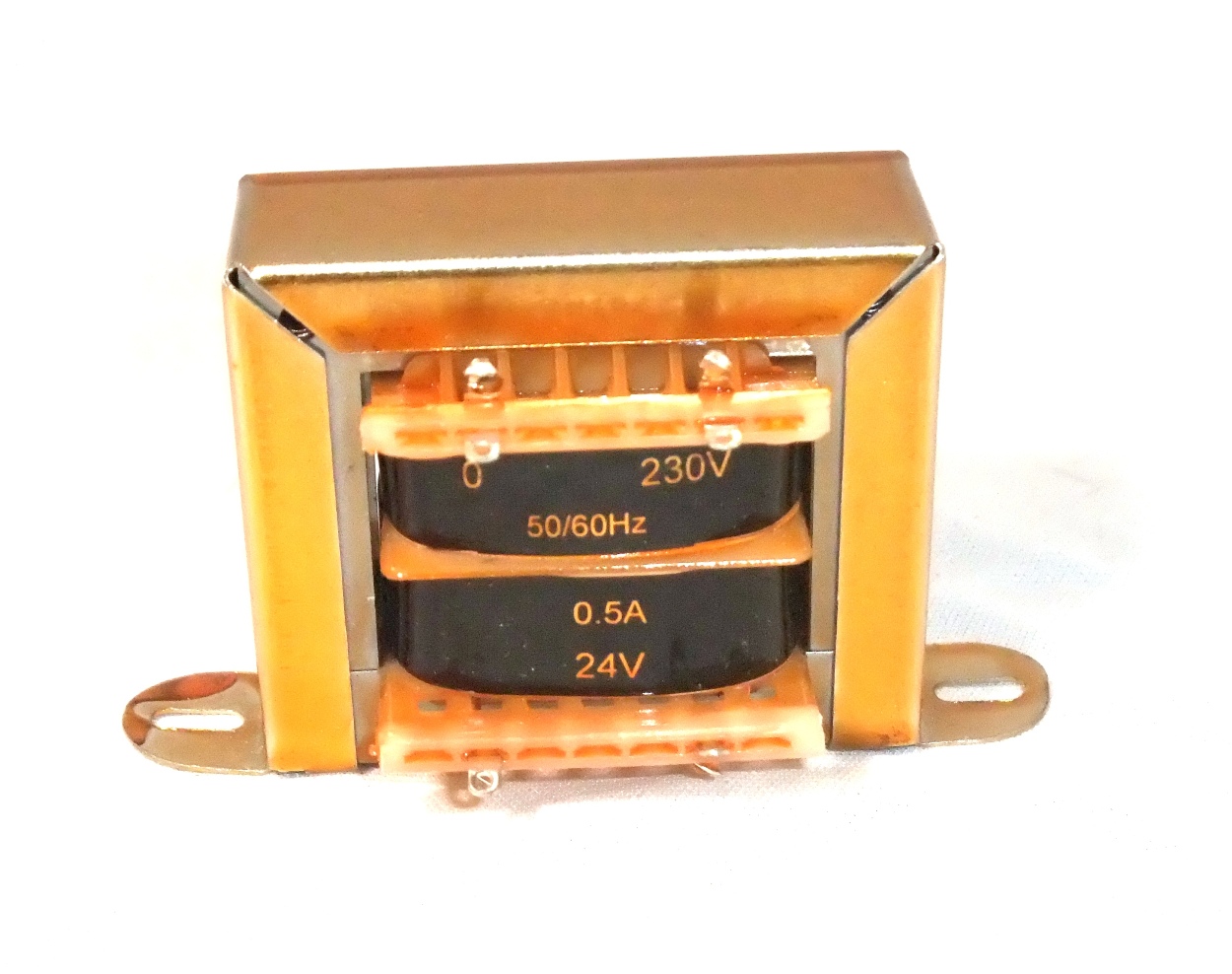

0 - 24v 0.5A 12VA Open Frame Transformer
Specifications:
Model 10040
Voltage 0 - 24v
Current 500mA
Rating 12VA
Dimensions 90 x 50 x 53mm
Fixing Centres 76mm
Weight 545g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and single secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-010 0 - 24v 0.5A 12VA Open Frame Transformer 9.86

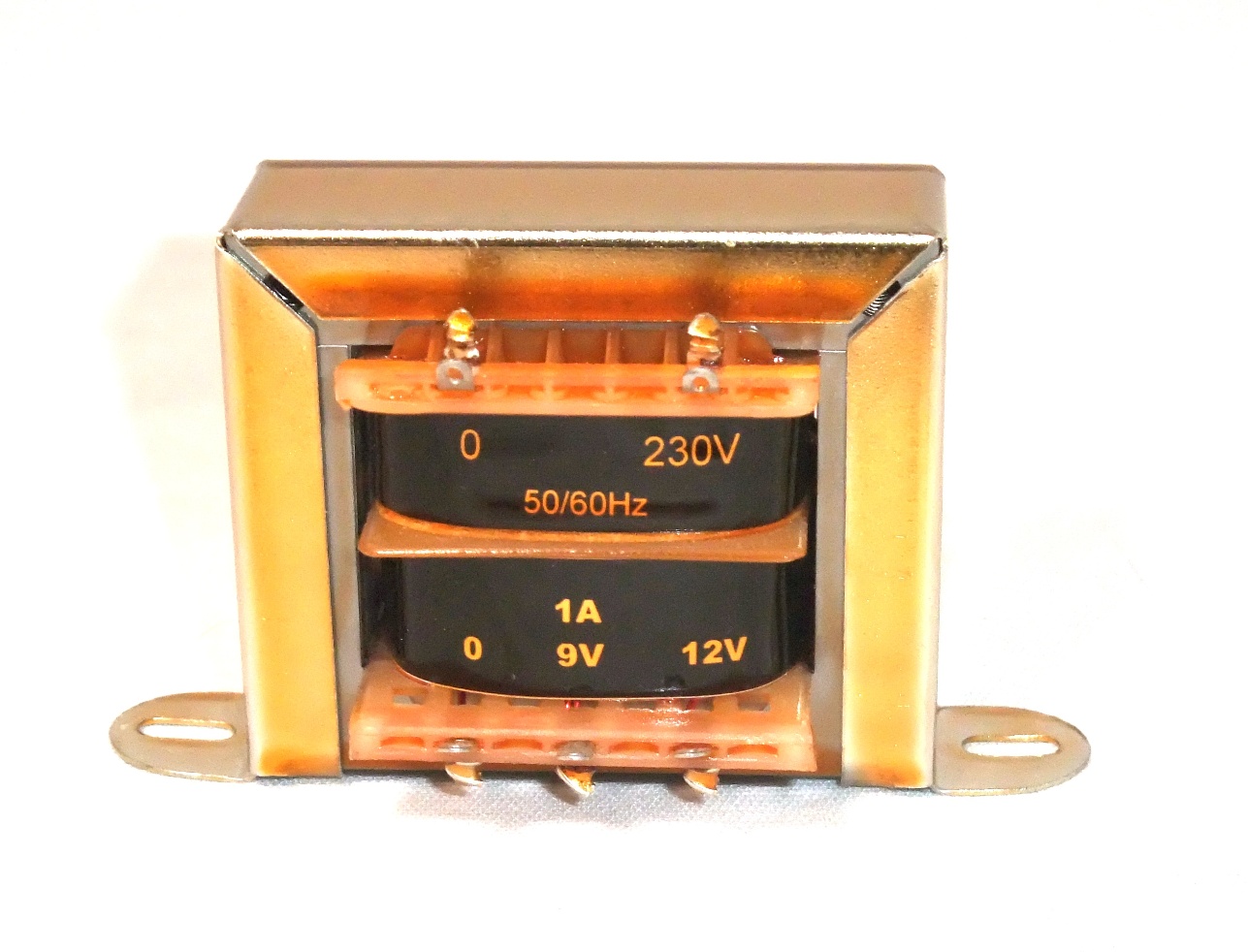

0 - 9 - 12v 1.0A 12VA Open Frame Transformer
Specifications:
Model 15966
Voltage 0 - 9 - 12v
Current 1A
Rating 12VA
Dimensions 90 x 50 x 53mm
Fixing Centres 77mm
Weight 518g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and two secondary windings. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-015 0 - 9 - 12v 1.0A 12VA Open Frame Transformer 9.84

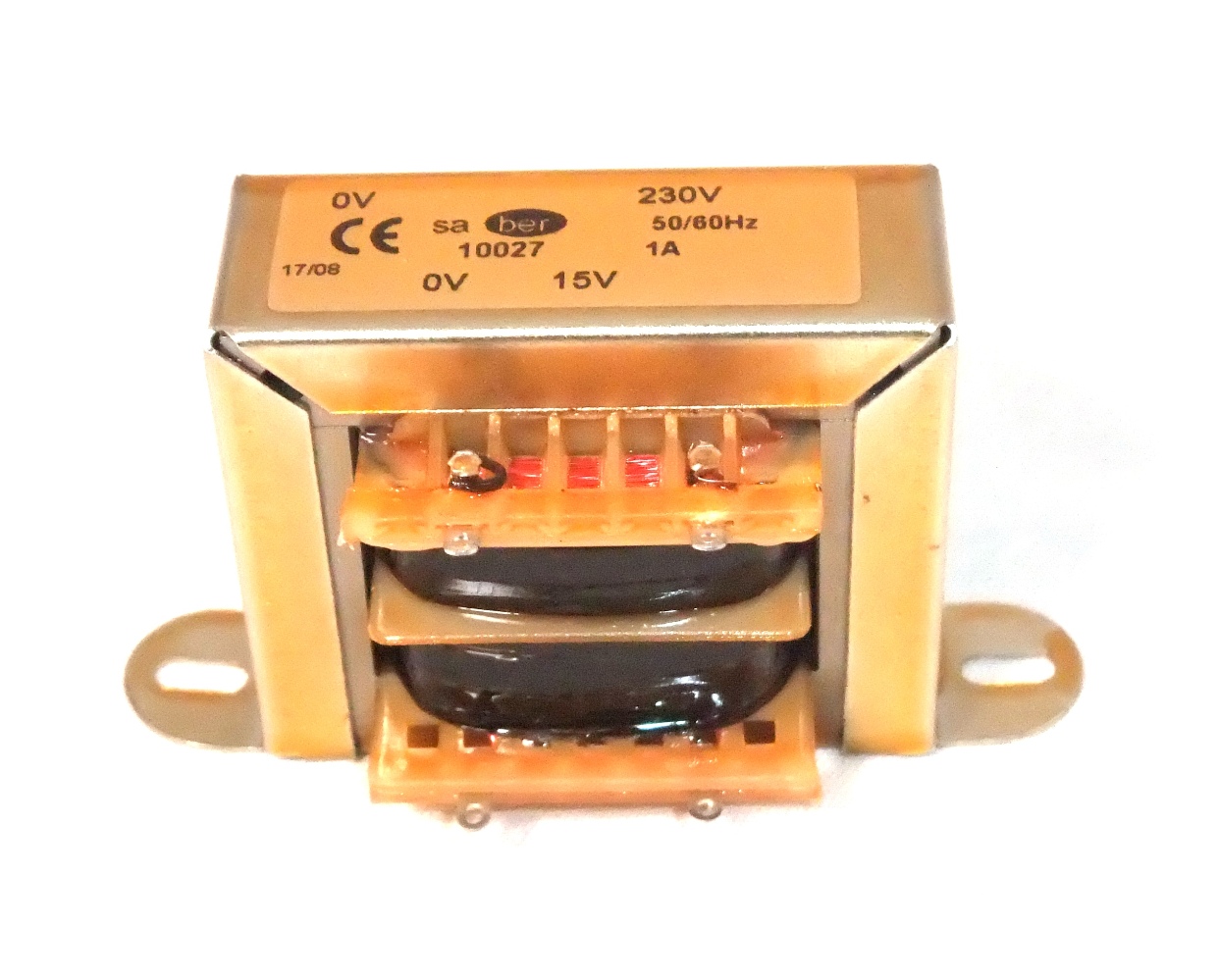

0 - 15v 1.0A 15VA Open Frame Transformer
Specifications:
Model 10027
Voltage 0 - 15v
Current 1A
Rating 15VA
Dimensions 90 x 50 x 53mm
Fixing Centres 76mm
Weight 532g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and single secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-020 0 - 15v 1.0A 15VA Open Frame Transformer 9.84

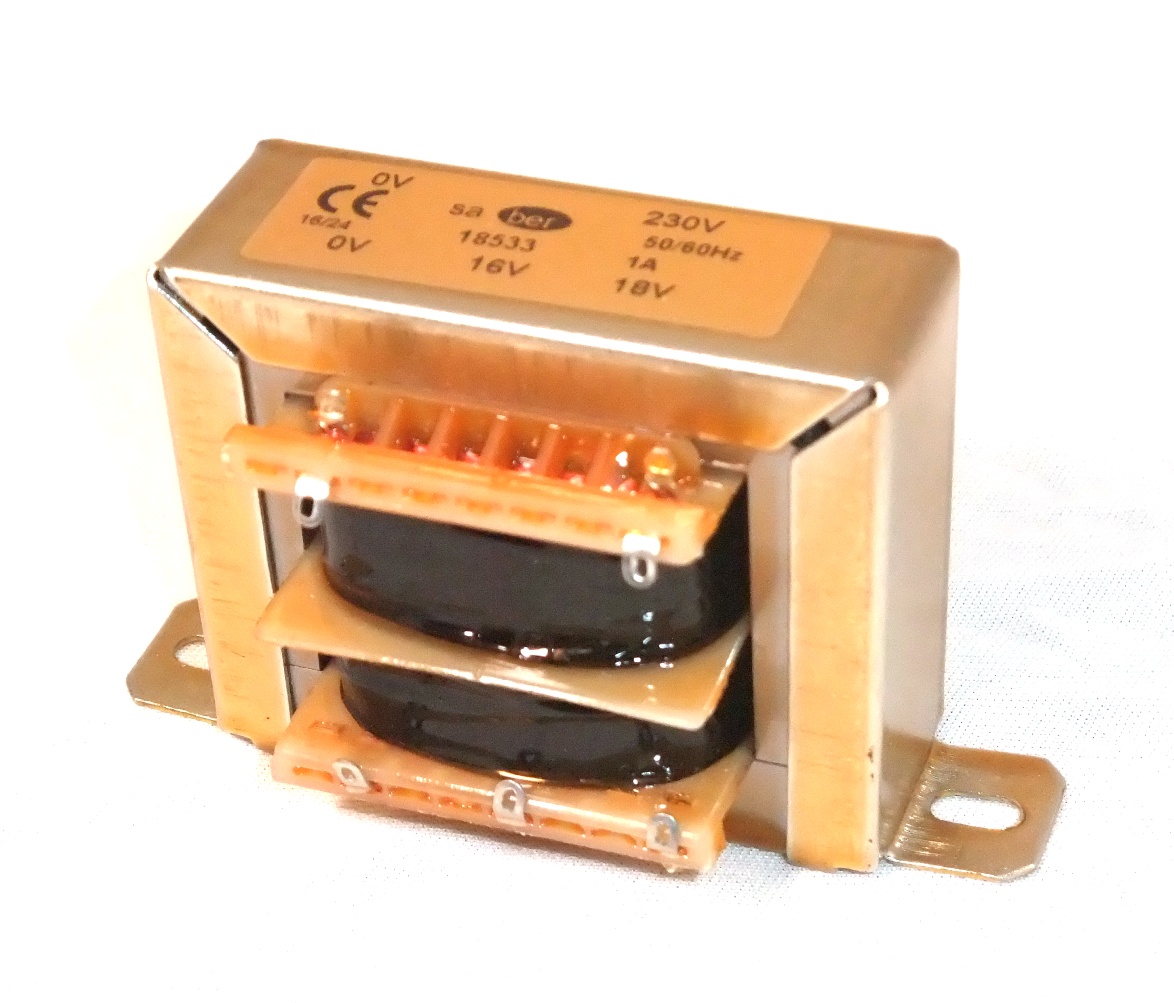

0 - 16 - 18v 1.0A 18VA Open Frame Transformer
Specifications:
Model 18533
Voltage 0 - 16 - 18v
Current 1A
Rating 18VA
Dimensions 95 x 48 x 57mm
Fixing Centres 80mm
Weight 697g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and two secondary windings. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-025 0 - 16 - 18v 1.0A 18VA Open Frame Transformer 13.15

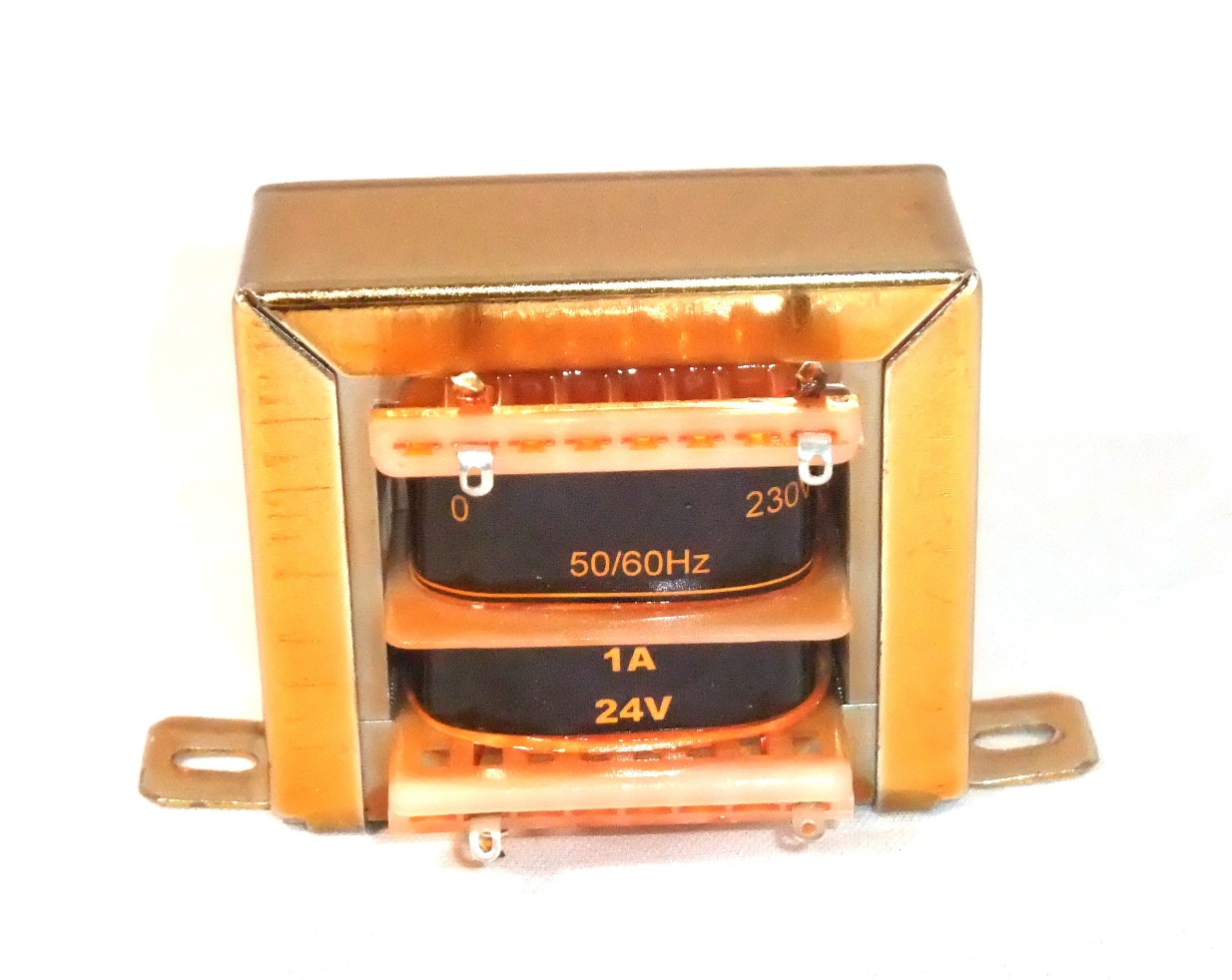

0 - 24v 1.0A 24VA Open Frame Transformer
Specifications:
Model 10041
Voltage 0 - 24v
Current 1A
Rating 24VA
Dimensions 96 x 54 x 57mm
Fixing Centres 82mm
Weight 836g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and single secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-030 0 - 24v 1.0A 24VA Open Frame Transformer 15.68



9 - 0 - 9v 1.0A 18VA Open Frame Transformer
Specifications:
Model 16021
Voltage 9 - 0 - 9v
Current 1A
Rating 18VA
Dimensions 93 x 45 x 53mm
Fixing Centres 77mm
Weight 525g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and centre tapped secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-035 9 - 0 - 9v 1.0A 18VA Open Frame Transformer 11.20



15 - 0 - 15v 1.0A 30VA Open Frame Transformer
Specifications:
Model 16037
Voltage 15 - 0 - 15v
Current 1A
Rating 30VA
Dimensions 90 x 45 x 52mm
Fixing Centres 75mm
Weight 539g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and centre tapped secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-040 15 - 0 - 15v 1.0A 30VA Open Frame Transformer 11.84



18 - 0 - 18v 1.0A 36VA Open Frame Transformer
Specifications:
Model 16044
Voltage 18 - 0 - 18v
Current 1A
Rating 36VA
Dimensions 96 x 55 x 57mm
Fixing Centres 80mm
Weight 700g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and centre tapped secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-050 18 - 0 - 18v 1.0A 36VA Open Frame Transformer 11.87

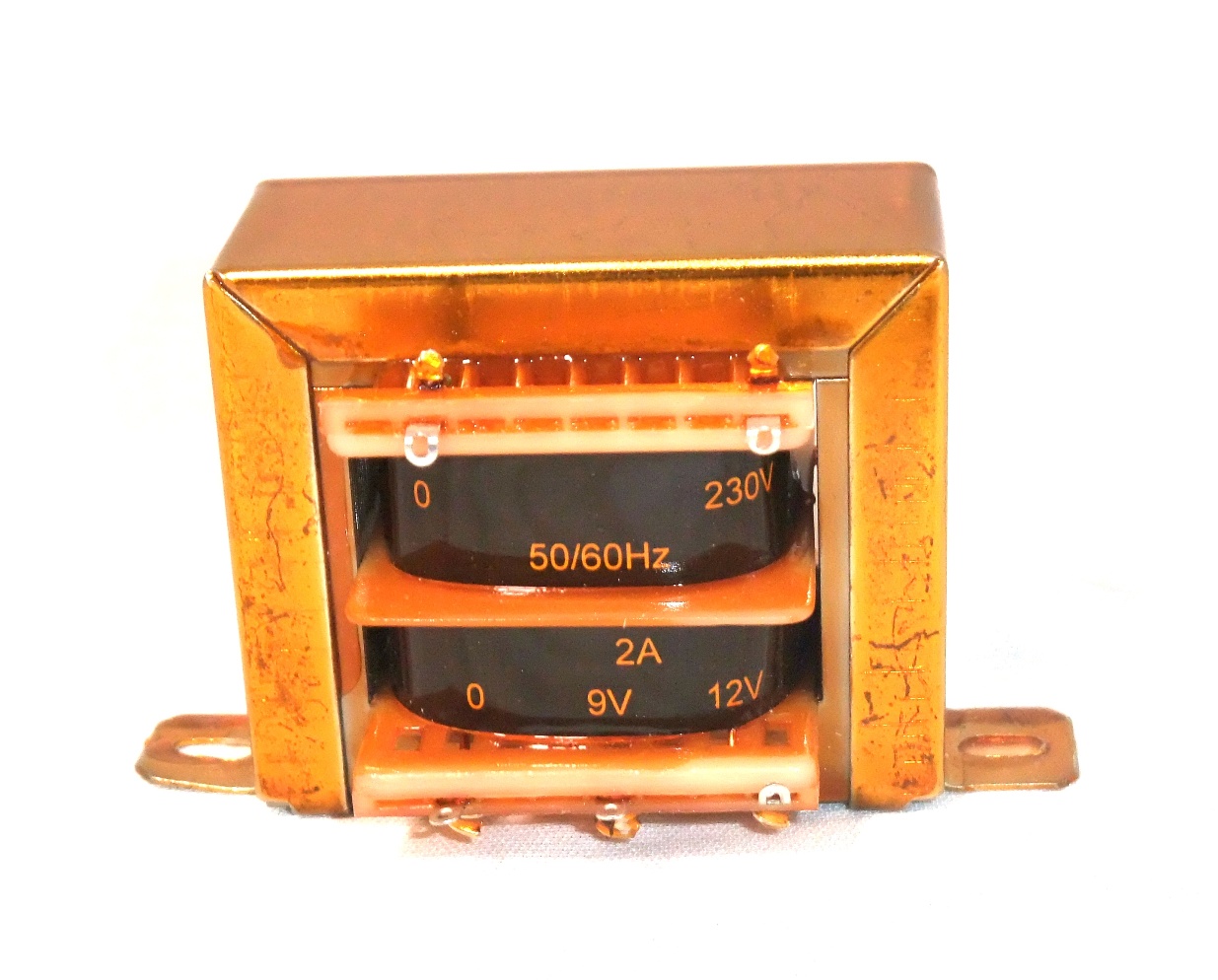

0 - 9 - 12v 2.0A 24VA Open Frame Transformer
Specifications:
Model 15994
Voltage 0 - 9 - 12v
Current 2A
Rating 24VA
Dimensions 96 x 55 x 57mm
Fixing Centres 80mm
Weight 817g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and two secondary windings. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-055 0 - 9 - 12v 2.0A 24VA Open Frame Transformer 13.90



0 - 15 - 18v 2.0A 36VA Open Frame Transformer
Specifications:
Model 15967
Voltage 0 - 15 - 18v
Current 1A
Rating 36VA
Dimensions 58 x 75 x 64mm
Fixing Centres 45 x 62mm
Weight 1045g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and two secondary windings. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-060 0 - 15 - 18v 2.0A 36VA Open Frame Transformer 16.90

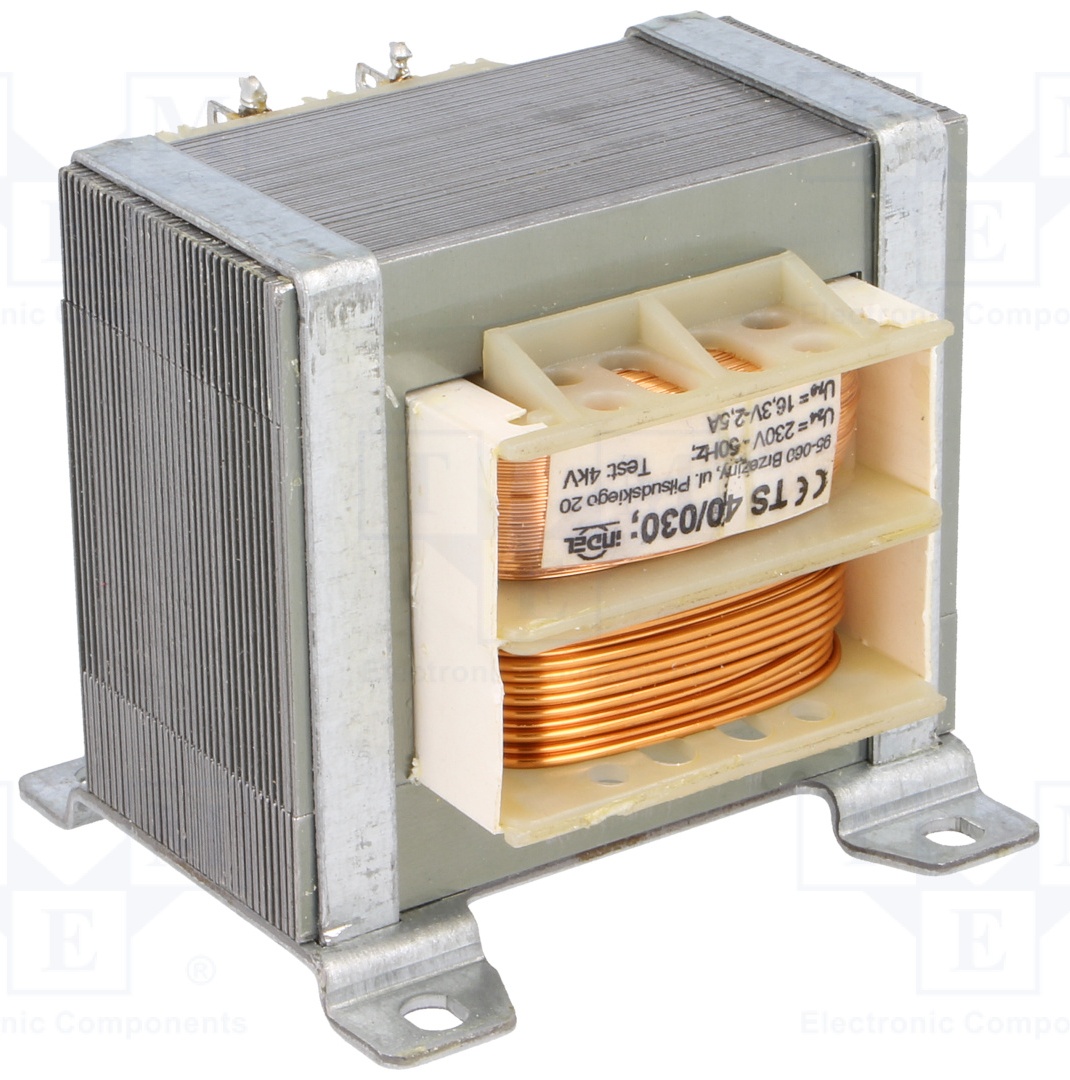

16v AC Transformer
Specifications:
Model KK66/EI 10-02
Voltage 0 - 16.3
Current 2.5A
Rating 40VA
Dimensions 66 x 62 x 60mm
Fixing Centres 51 x 52mm (4mmØ)
Weight 960g
Download Data Sheet >
General purpose chassis mounting mains transformer. Transformer has 230V primary winding (Terminals 2 and 4) and single secondary winding (Terminals 7 and 9). The transformer has 2.8mm crimp tags on both the primary and secondary windings. Ideal for Model Railway CD units and speed controllers. Suitable ABS enclosure is MB7
Order Code   Each
312-216 0 - 16.3v 2.5A 40VA Chassis Transformer 22.71

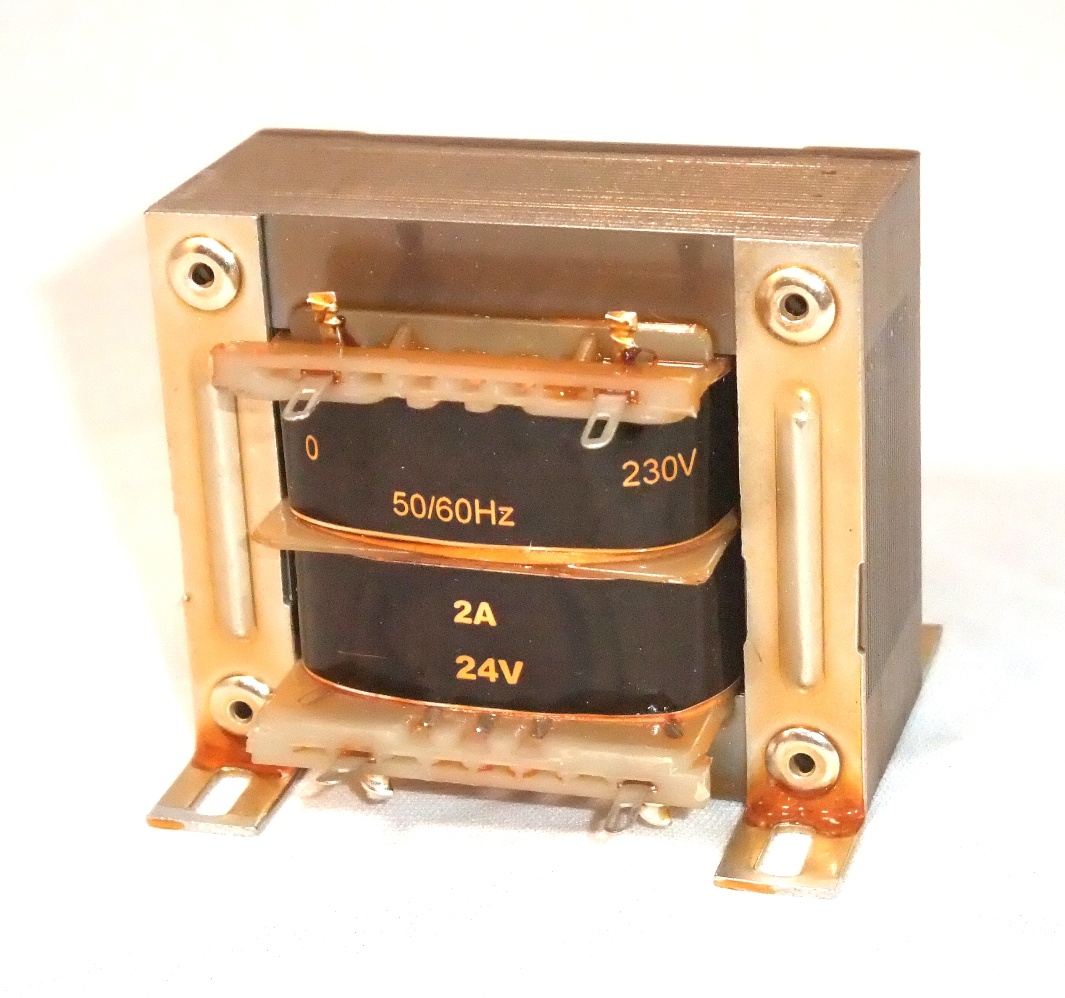

0 - 24v 2.0A 48VA Open Frame Transformer
Specifications:
Model 10042
Voltage 0 - 24v
Current 2A
Rating 48VA
Dimensions 75 x 63 x 63mm
Fixing Centres 50 x 62mm
Weight 1222g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and single secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-065 0 - 24v 2.0A 48VA Open Frame Transformer 17.65

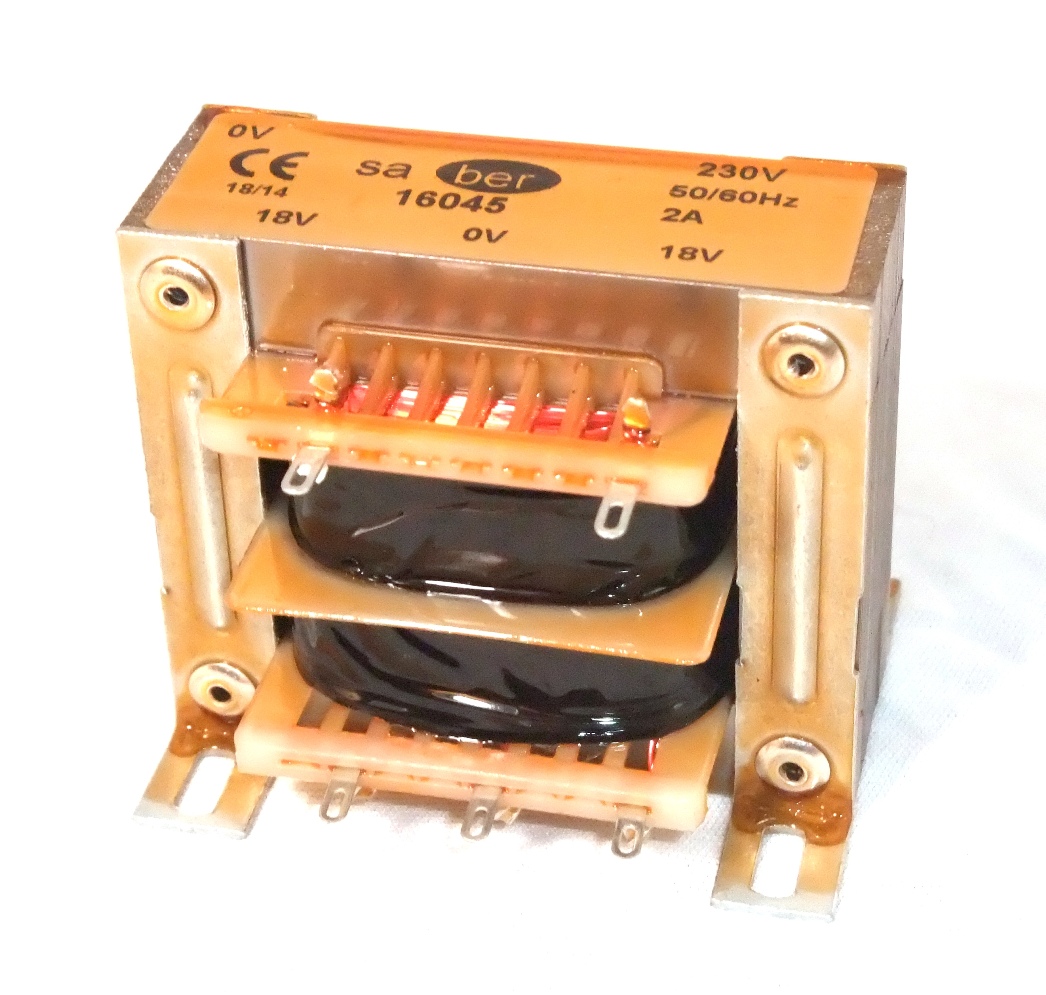

18 - 0 - 18v 2.0A 72VA Open Frame Transformer
Specifications:
Model 16045
Voltage 18 - 0 - 18v
Current 2A
Rating 72VA
Dimensions 76 x 58 x 64mm
Fixing Centres 48 x 62mm
Weight 975g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and centre tapped secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-070 18 - 0 - 18v 2.0A 72VA Open Frame Transformer 23.78



15 - 0 - 15v 2.0A 30VA Open Frame Transformer
Specifications:
Model 16039
Voltage 15 - 0 - 15v
Current 2A
Rating 60VA
Dimensions 75 x 58 62mm
Fixing Centres 62 x 48mm
Weight 1050g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and centre tapped secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-075 15 - 0 - 15v 2.0A 30VA Open Frame Transformer 18.75

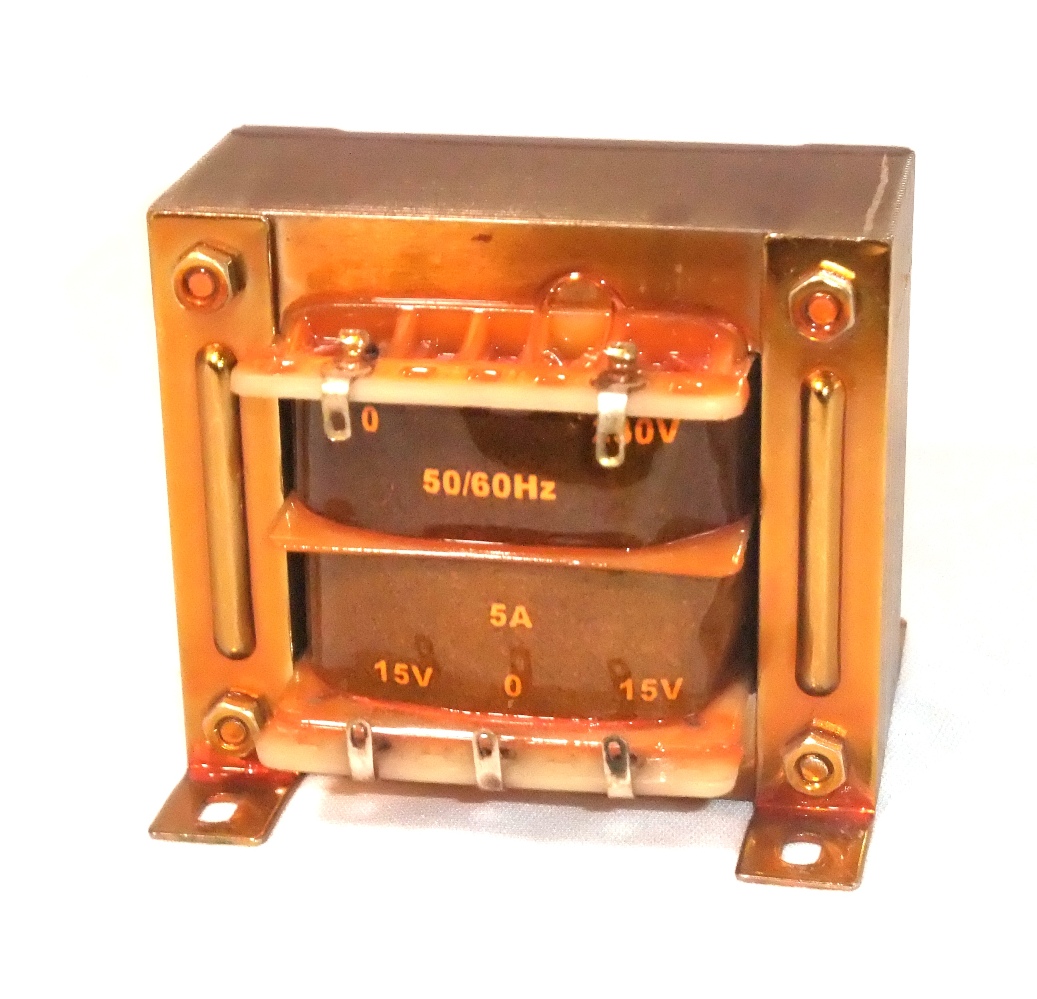

15 - 0 - 15v 5.0A 150VA Open Frame Transformer
Specifications:
Model 16042
Voltage 15 - 0 - 15v
Current 5A
Rating 150VA
Dimensions 95 x 70 x 70mm
Fixing Centres 57 x 70mm
Weight 1550g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and centre tapped secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-080 15 - 0 - 15v 5.0A 150VA Open Frame Transformer 24.69

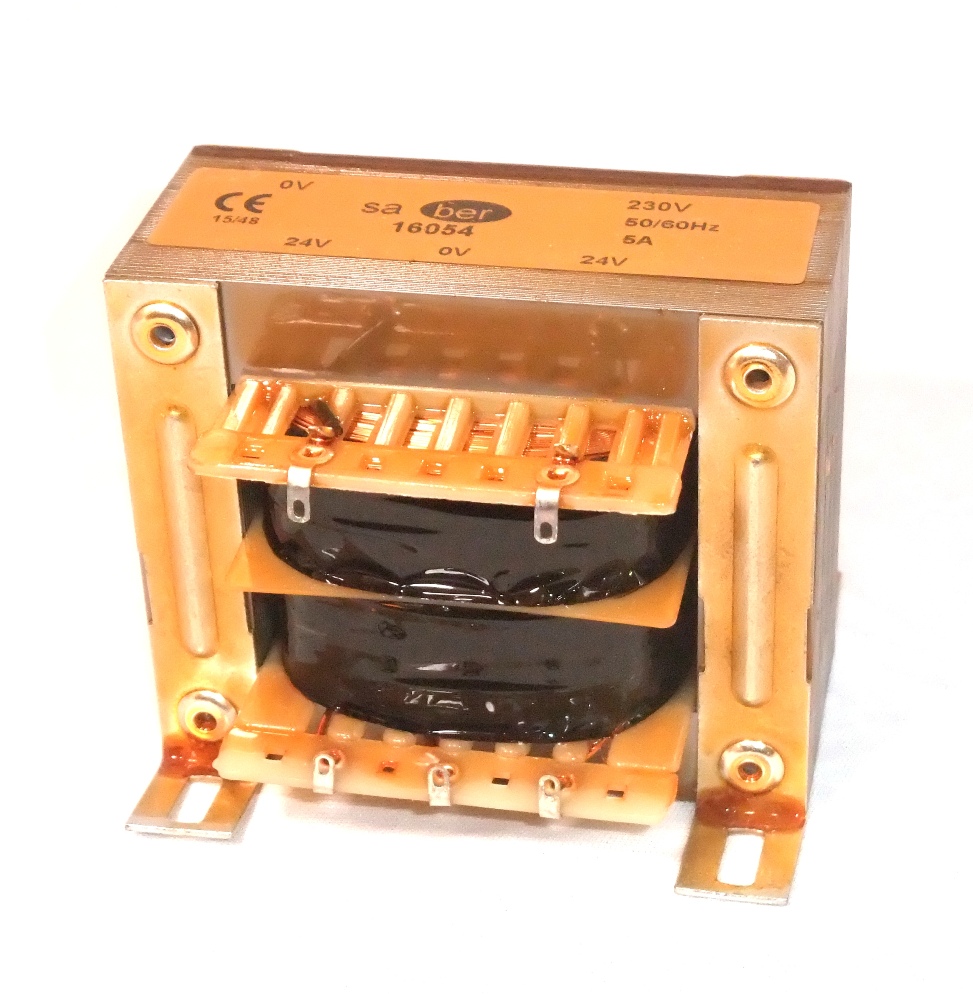

24 - 0 - 24v 5.0A 240VA Open Frame Transformer
Specifications:
Model 16054
Voltage 24 - 0 - 24v
Current 5A
Rating 240VA
Dimensions 97 x 85 x 80mm
Fixing Centres 66 x 78
Weight 1560g
General purpose open frame chassis mounting mains transformer. Transformer has 230V primary windings and centre tapped secondary winding. The transformer has solder tags for both primary and secondary windings.
Order Code   Each
319-085 24 - 0 - 24v 5.0A 240VA Open Frame Transformer 42.50
