100V Line Transformers

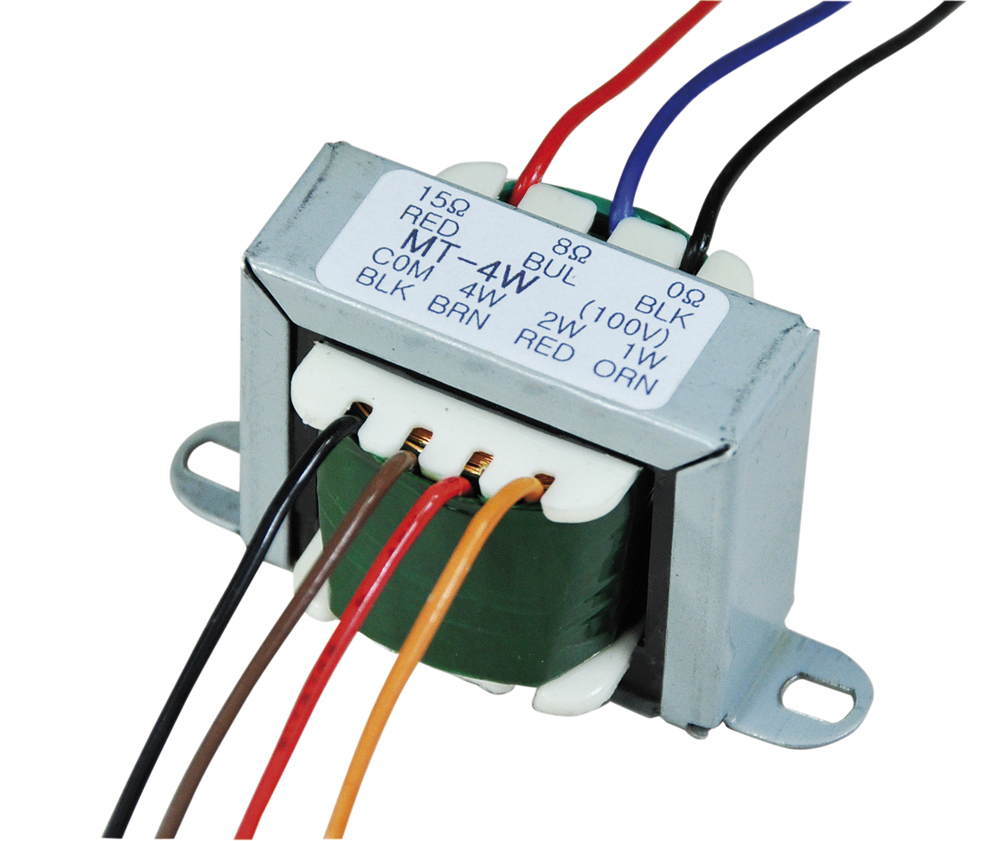

4 Watt 100V Line Transformer
Specifications:
Model P037S
Primary Tapped 1,2 and 4 Watts
Secondary 8Ω and 16Ω

Dimensions mm
Weight g
4 Watt 100V line transformer, used to convert low impedance speakers 8 or 16 Ohms to allow them to be used in 100V line PA installations.
Order Code   Each
308-434 4 Watt 100V Line Transformer 7.73

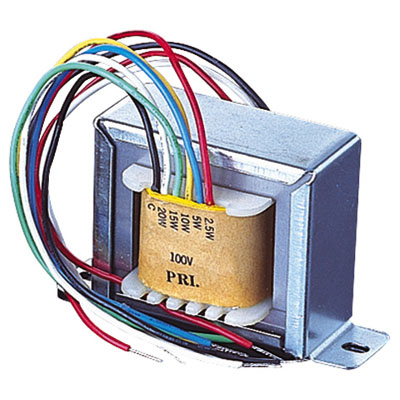

8 Watt 100V Line Transformer
Specifications:
Model P037T
Primary Tapped 2,4 and 8 Watts
Secondary 8Ω and 16Ω
Dimensions 65 x 35 x 35mm
Weight 2055g
8 Watt 100V line transformer, used to convert low impedance speakers 8 or 16 Ohms to allow them to be used in 100V line PA installations.
Order Code   Each
308-437 8 Watt 100V Line Transformer 5.40



20 Watt 100V Line Transformer
Specifications:
Model PO39U
Primary Tapped 4, 8, 12, 16 Watts
Secondary 8Ω and 16Ω
Fixing Centres 69mm
Dimensions 81 x 50 x 46mm
Weight 476g
20 Watt 100V line transformer, used to convert low impedance speakers 8 or 16 Ohms to allow them to be used in 100V line PA installations.
Order Code   Each
308-440 20 Watt 100V Line Transformer 6.80

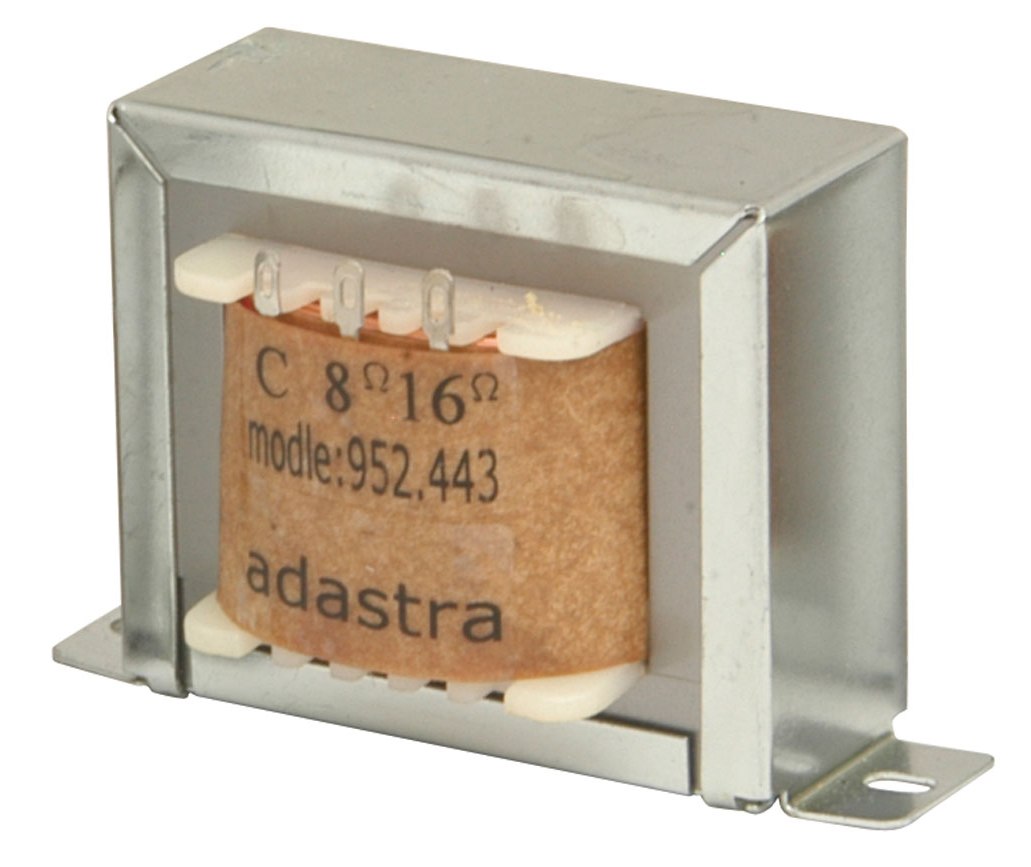

30 Watt 100V Line Transformer
Specifications:
Model 952.443
Primary Tapped 1.9,3.75,7.5,15,30 Watts
Secondary 8Ω and 16Ω

Dimensions mm
Weight g
30 Watt 100V line matching transformer, used to convert low impedance speakers 8 or 16 Ohms to allow them to be used in 100V line PA installations.
Order Code   Each
308-443 30 Watt 100V Line Transformer 12.51

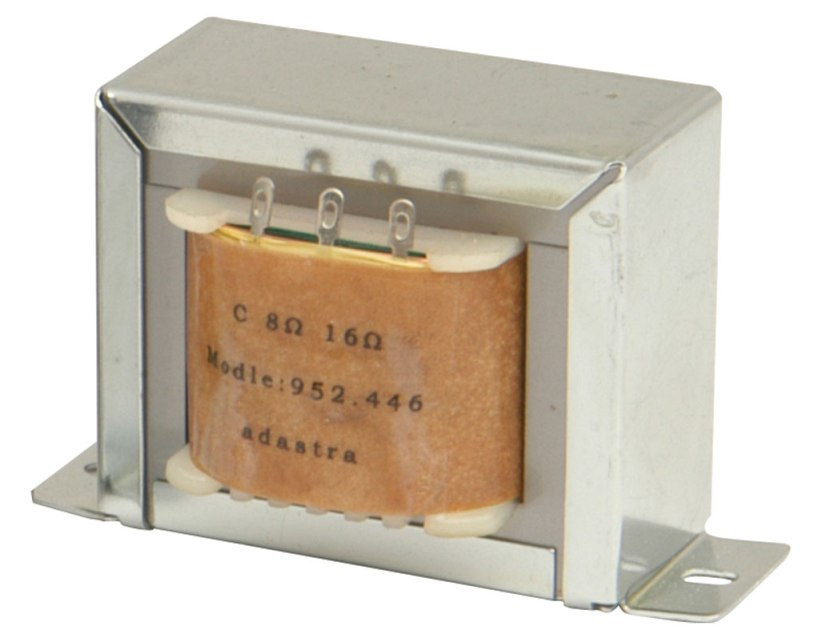

40 Watt 100V Line Transformer
Specifications:
Model 952.446
Primary Tapped 5,0.10,20,30,40 Watts
Secondary 8Ω and 16Ω

Dimensions mm
Weight 960g
40 Watt 100V line matching transformer, used to convert low impedance speakers 8 or 16 Ohms to allow them to be used in 100V line PA installations.
Order Code   Each
308-446 40 Watt 100V Line Transformer 12.29

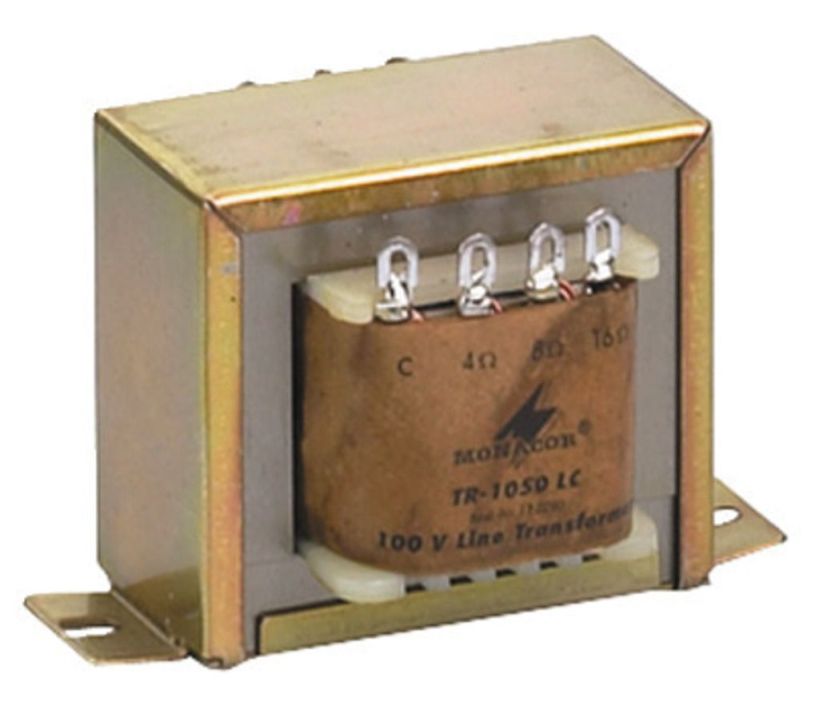

50 Watt Transformer
Specifications:
Model TR-1050LC
Primary Tapped 12.5 , 25, 37.5 and 50 Watt
Secondary 4Ω, 8Ω and 16Ω
Fixing Centres mm
Dimensions 92 x 60 x 58mm
Weight 860g
50 Watt 100V line transformer, used to convert low impedance speakers 4, 8 or 16 Ohms to allow them to be used in 100V line PA installations.
Order Code   Each
308-290 50 Watt 100V Line Transformer with 12.5 , 25, 37.5 and 50 Watt Tappings 19.38
