Analogue Micro Amp Meters (60 x 46mm)

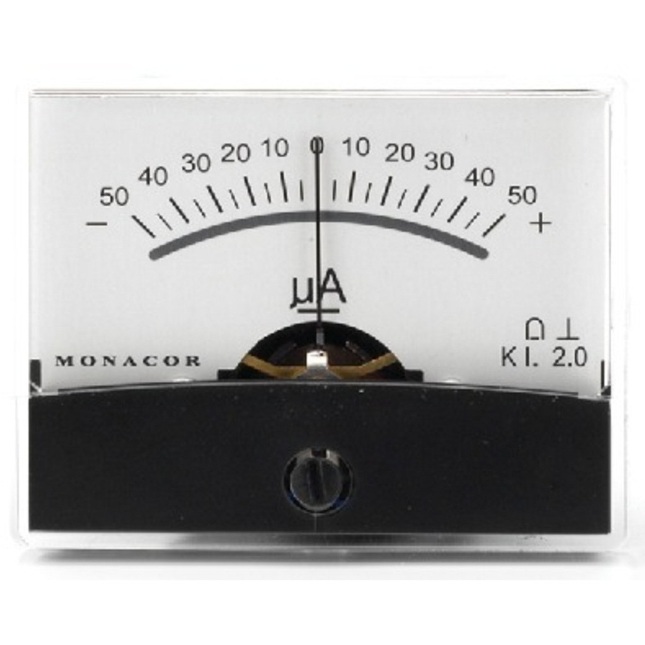

50A - 0 - 50A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range50A - 0 - 50A
Internal Resistance1900Ω
Panel Cut out37.5mm
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 50A - 0 - 50A range. The meter has a mirrored scale for greater accuracy. Plastic housing with centre zero adjustment. (60 x 46mm)
Order Code 110+
124-16650A - 0 - 50A Panel Meter8.197.06

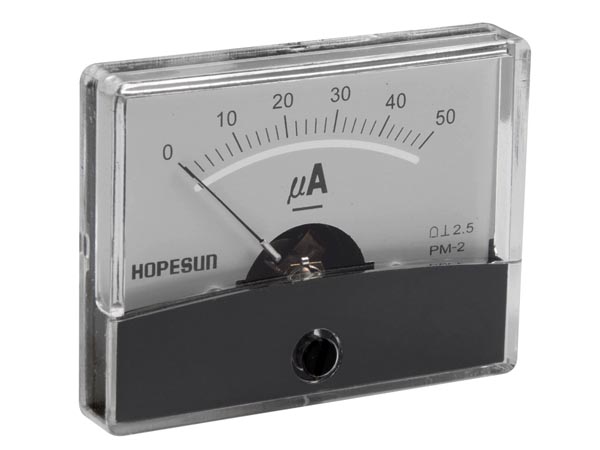

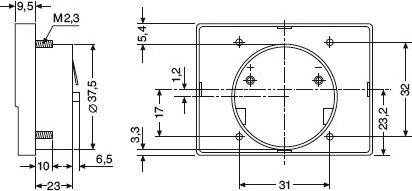

0 - 50A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 50A
Internal Resistance6500Ω
Panel Cut out37.5mm
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 50A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1160 - 50A Panel Meter5.635.03

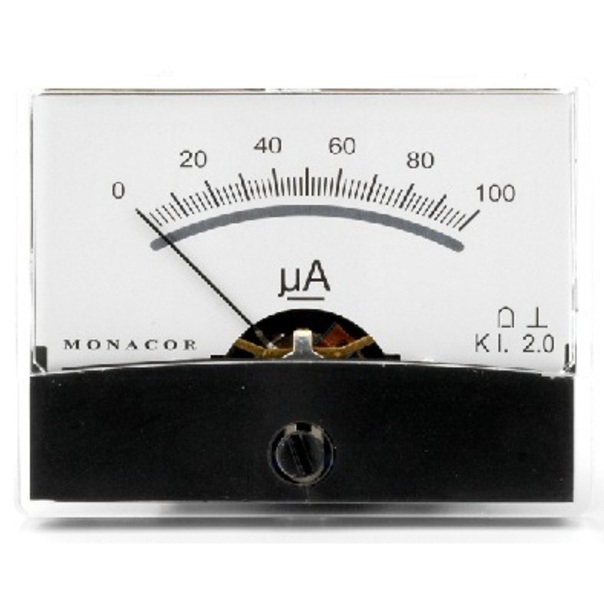

0 - 100A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 100A
Internal Resistance1000Ω
Panel Cut out37.5mm
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 100A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1170 - 100A Panel Meter8.197.06

Analogue Micro Amp Meters (70 x 60mm)

0 - 100A Panel MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 100A
Internal Resistance2000Ω
Panel Cut out52mm
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil panel meter with 0 - 100 micro amp range. The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-3170 - 100A Panel Meter6.775.76



Battery Level Indicator 0 - 500A
Specifications:
Measuring Range0 - 500A
Internal Resistance500Ω
Panel Cut out17.5 x 12mm
Fixing Centres30mm
ConnectionSolder Terminals
Dimensions35 x 20 x 20mm

A miniature un-scaled panel meter designed for use as a battery level indicator, back and red scale. (35 x 20 x 20mm)
Order Code 110+
124-190Battery Level Indicator 0 - 500A0.960.77



Level Indicator 0 - 300A
Specifications:
Measuring Range0 - 300A
Internal Resistance300Ω
Panel Cut out17.5 x 34mm
Fixing Centres48mm
ConnectionSolder Terminals
Dimensions54 x 22 x 34mm

A rectangular panel level indicator suitable for use in audio applications, power and VU signals. (54 x 22 x 34mm)
Order Code 110+
124-184Level Indicator 0 - 300A1.500.84



Ampere meters can be used to measure different current ranges, to do this the meter must have a shunt resistor fitted in parallel with the measuring circuit.

The formula to determine the shunt resistor for an ampere meter is as follows:

Rs = Rm / (n - 1)

Where Rs is the shunt resistor, Rm is the meters internal resistance and n is the multiplier (Current to be Measured).

Ammeter Shunt
