Analogue Ammeters (60 x 46mm)

0 - 1A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 1A
Internal Resistance60mΩ
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 1A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (While Stocks Last)
Order Code 110+
124-1310 - 1A Panel Meter7.066.13

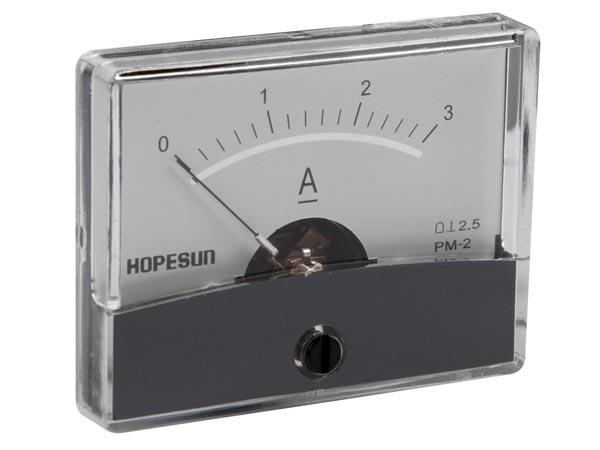

0 - 3A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 3A
Internal Resistance20mΩ
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 3A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1320 - 3A Panel Meter5.734.98

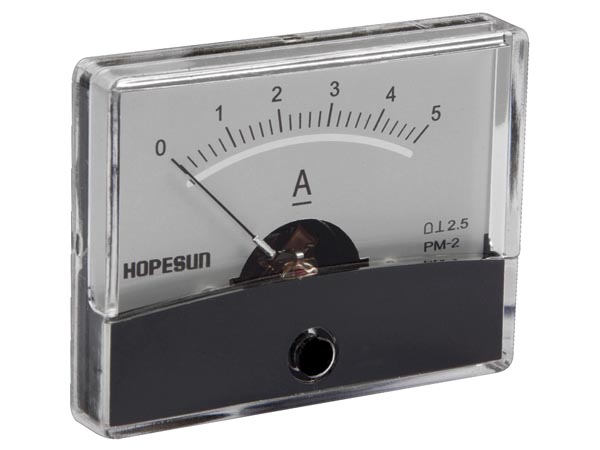

0 - 5A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 5A
Internal Resistance12mΩ
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 5A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1330 - 5A Panel Meter6.545.64

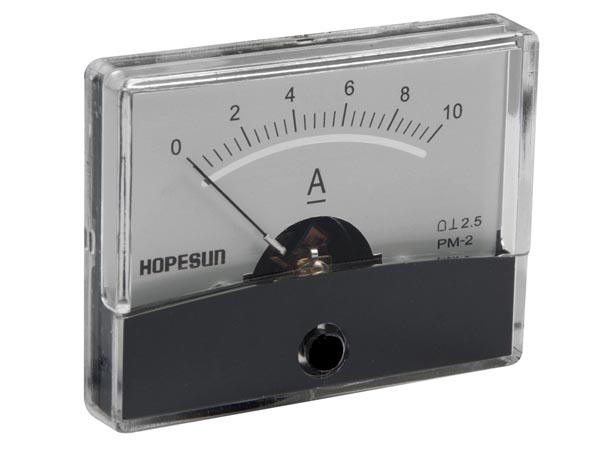

0 - 10A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 10A
Internal Resistance6mΩ
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 10A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1340 - 10A Panel Meter5.494.76

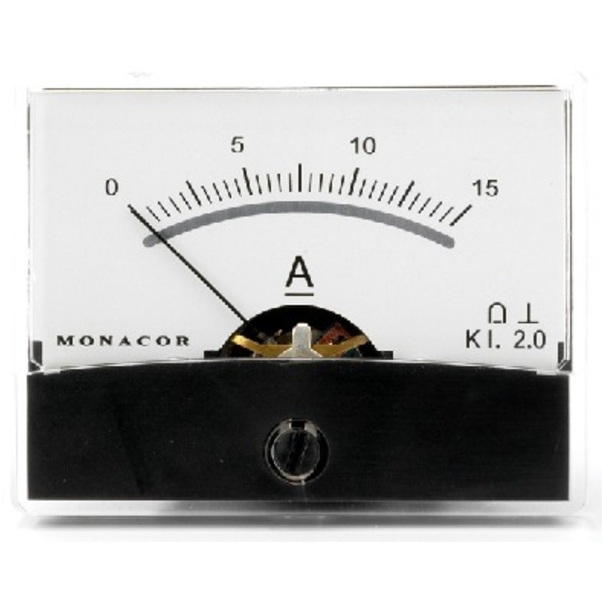

0 - 15A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 15A
Internal Resistance4mΩ
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 15A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1350 - 15A Panel Meter7.836.99



0 - 30A Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 30A
Internal Resistance4mΩ
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 30A full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm). Supplied with separate shunt resistance (0.75mV)
Order Code 110+
124-1400 - 30A Panel Meter6.655.78

Analogue Ammeters (70 x 60mm)

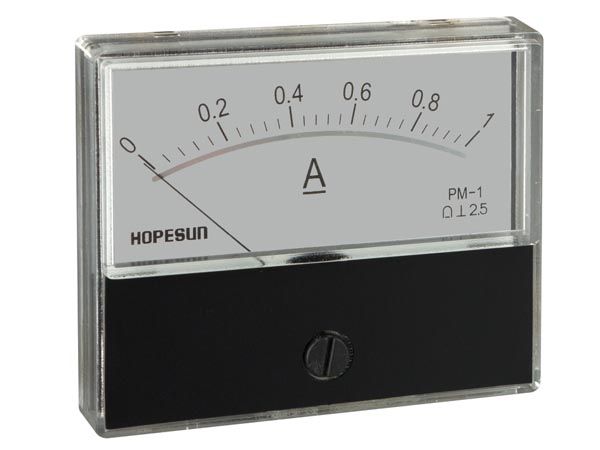

0 - 1A Panel MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 1A
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil panel meter with 0 - 1A amp range. The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-331Large 0 - 1A Panel Meter7.536.41

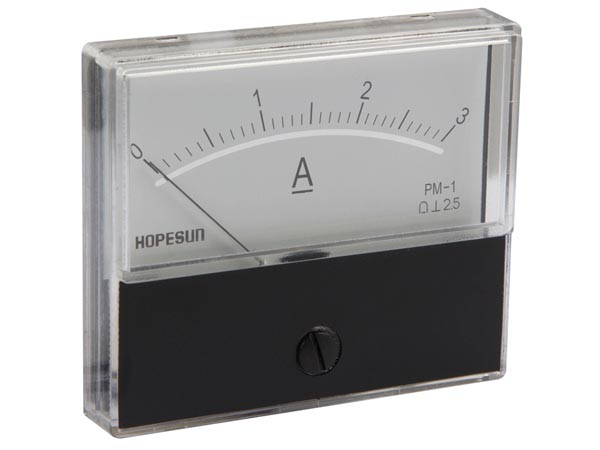

0 - 3A Panel MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 3A
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil panel meter with 0 - 3A amp range. The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-332Large 0 - 3A Panel Meter5.514.69



 0 - 5A Panel MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 5A
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil panel meter with 0 - 5A amp range. The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-333Large 0 - 5A Panel Meter6.395.45

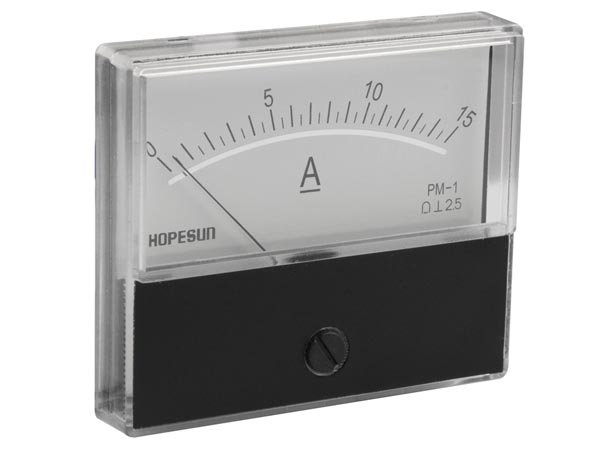

0 - 15A Panel MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 15mA
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil panel meter with 0 - 15A amp range. The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-335Large 0 - 15A Panel Meter6.385.42



Ampere meters can be used to measure different current ranges, to do this the meter must have a shunt resistor fitted in parallel with the measuring circuit.

The formula to determine the shunt resistor for an ampere meter is as follows:

Rs = Rm / (n - 1)

Where Rs is the shunt resistor, Rm is the meters internal resistance and n is the multiplier (Current to be Measured).

Ammeter Shunt
