Analogue Volt Meters (60 x 46mm)

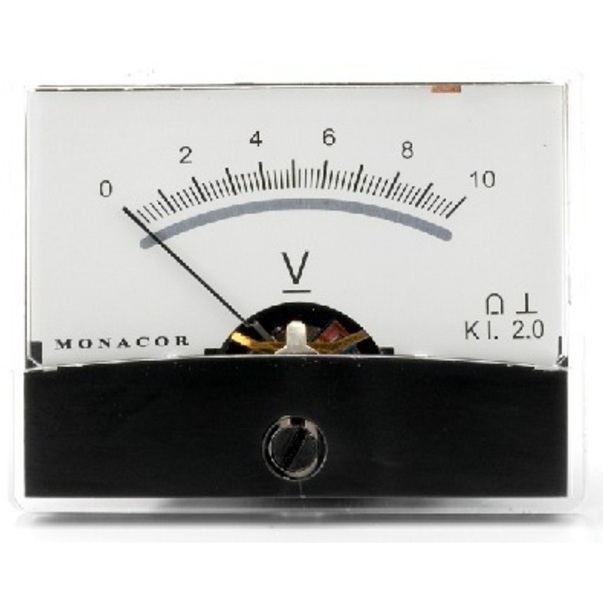

0 - 10V Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 10V
Internal Resistance10,000Ω
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 10V full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1440 - 10V Panel Meter6.475.61



0 - 15V Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 15V
Internal Resistance15,000Ω
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 15V full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1450 - 15V Panel Meter6.315.64

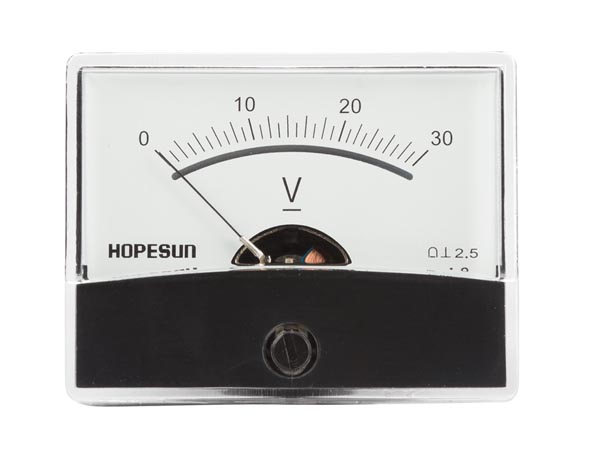

0 - 30V Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 30V
Internal Resistance30,000Ω
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil panel meter with 0 - 30V full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1460 - 30V Panel Meter5.184.50

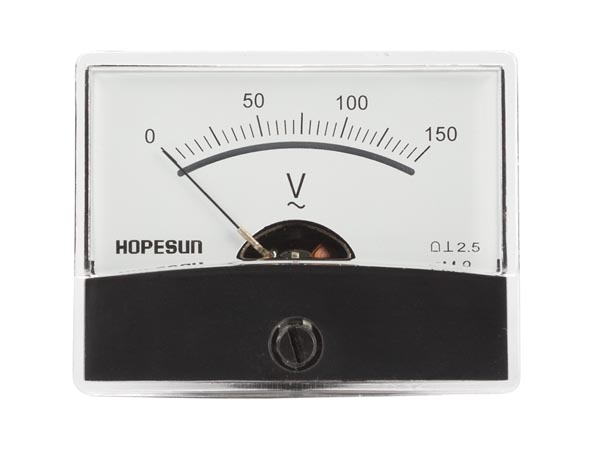

0 - 150Vac Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 150Vac
Internal Resistance150,000Ω
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil AC panel meter with 0 - 150V full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1480 - 150Vac Panel Meter5.284.59

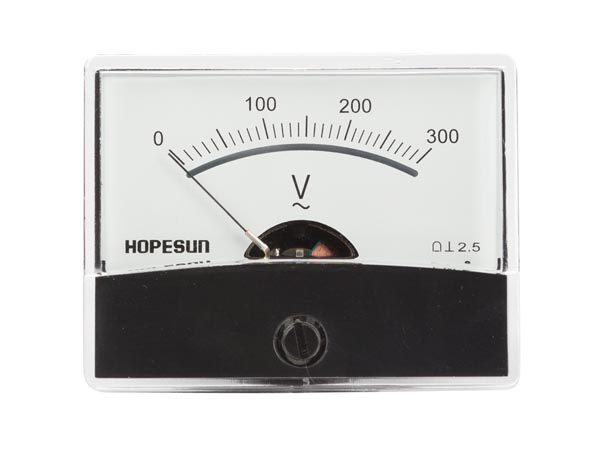

0 - 300Vac Panel MeterPanel Meter Dimensions
Specifications:
Measuring Range0 - 300Vac
Internal Resistance300,000Ω
Panel Cut out37.5mmØ
ConnectionScrew Terminals
Dimensions60 x 46mm

An analogue moving coil AC panel meter with 0 - 300V full scale range. The meter has a mirrored scale for greater accuracy. Plastic housing with zero point adjustment. (60 x 46mm)
Order Code 110+
124-1500 - 300Vac Panel Meter5.264.56

Analogue Volt Meters (70 x 60mm)

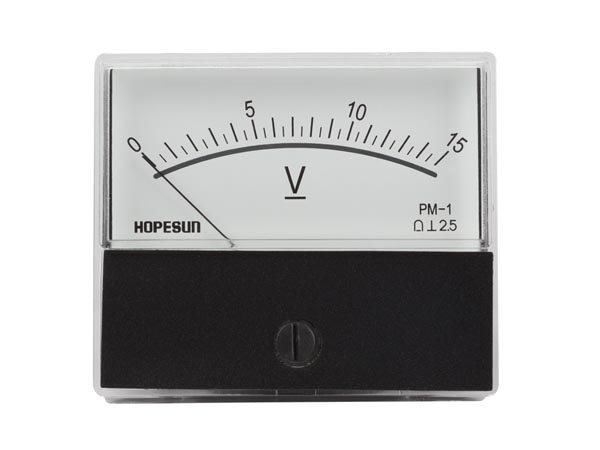

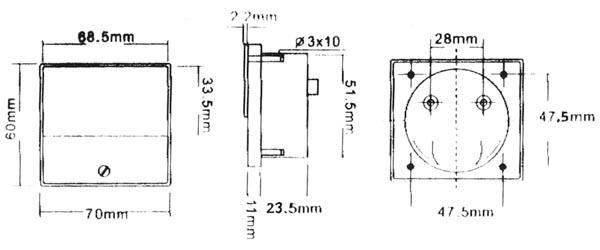

0 - 15 Volt MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 15V
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil volt meter with a range of 0 - 15V . The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-3450 - 15 Volt Meter5.644.81

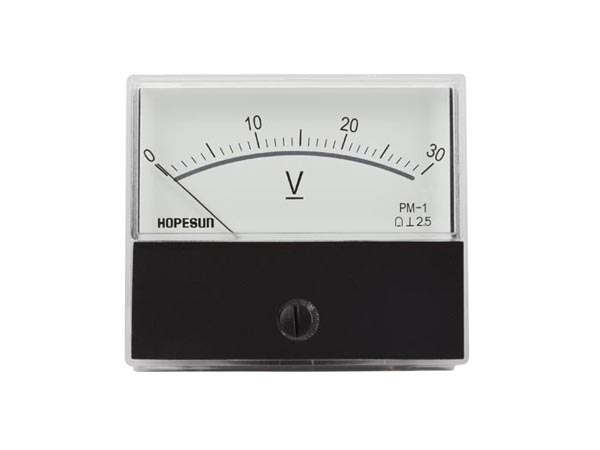

0 - 30 DC Volt MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 30V
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil volt meter with a range of 0 - 30V. The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-346 0 - 30 DC Volt Meter5.394.59

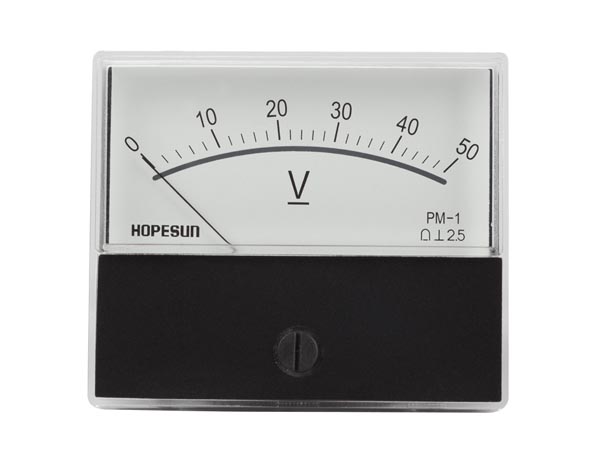

0 - 50 DC Volt MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 50V
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) moving coil volt meter with a range of 0 - 50V . The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-3470 - 50 DC Volt Meter7.376.26

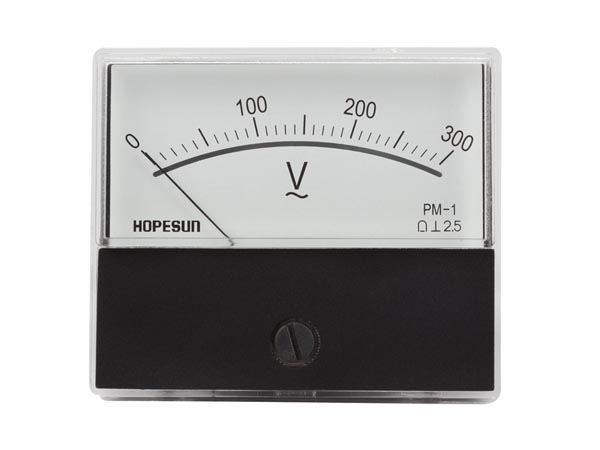

0 - 300 AC Volt MeterPanel Meter Line Drawing
Specifications:
Measuring Range0 - 300Vac
Internal Resistance
Panel Cut out52mmØ
ConnectionTerminals
Dimensions70 x 60mm

A large (70 x 60mm) AC volt meter with a range of 0 - 300Vac . The meter has a plastic housing with zero point adjustment screw.
Order Code 110+
124-350Large 0 - 300 AC Volt Meter5.664.82
