Miniature Toggle Switch

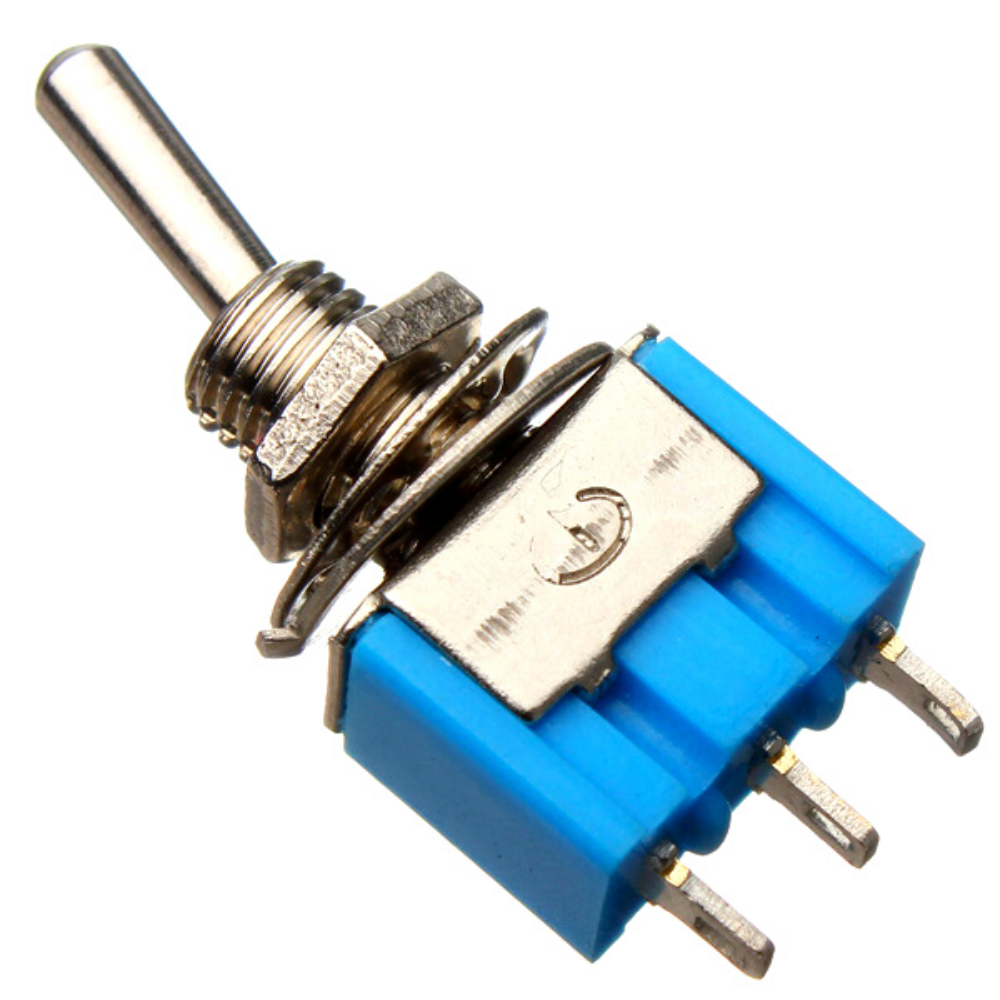

3A SPDT Miniature Toggle Switch
Specifications:
Contact ArrangementSPDT
ConnectionSolder
Rating3A 250Vac
Panel Cut out6.35mmØ
Dimensions8 x 13 x 32mm

Miniature economy toggle switch with single pole change over contacts and chrome toggle. Supplied with two fixing nuts and locking washer.
Order Code 110+25+
218-011SPDT On - On Miniature Toggle Switch - Solder0.500.360.32

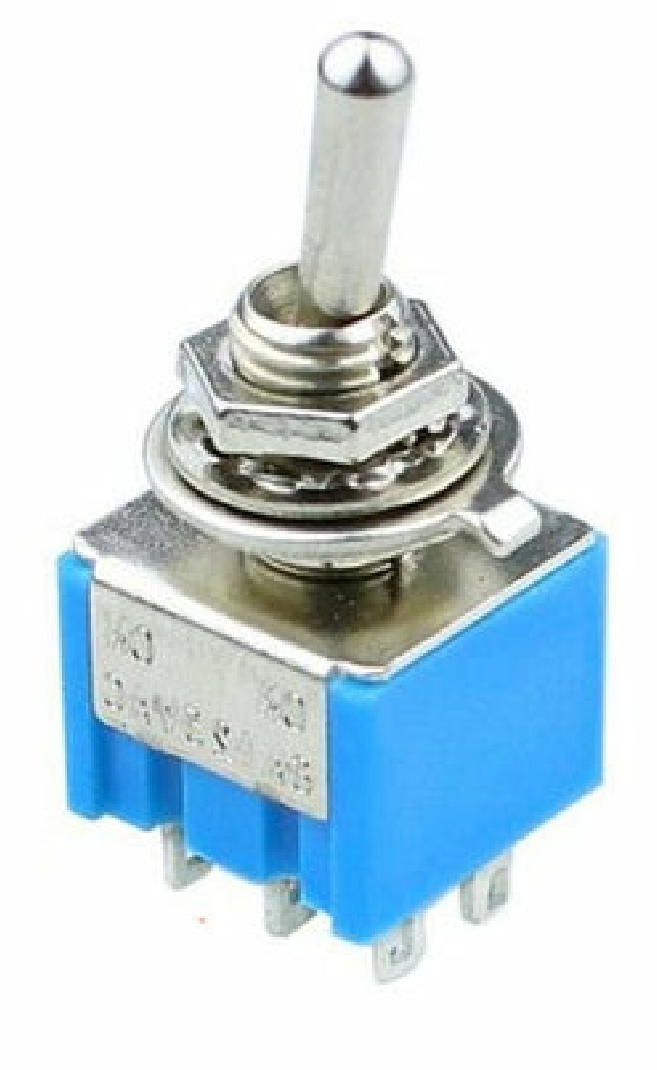

DPDT Toggle Switch
Specifications:
Contact ArrangementDPDT
ConnectionSolder
Rating3A 250Vac
Panel Cut out6.35mmØ
Dimensions13 x 13 x 32mm

Miniature economy toggle switch, double pole change over contacts switch action and chrome toggle. Supplied with two fixing nuts and locking washer.
Order Code 110+25+
218-013DPDT On - On Miniature Toggle Switch - Solder0.590.530.47



3A DPDT Miniature Toggle Switch
Specifications:
Contact ArrangementDPDT
ConnectionSolder
Rating3A 250Vac
Panel Cut out6.35mmØ
Dimensions13 x 13 x 32mm

Miniature economy toggle switch, double pole change over contacts with centre off switch action and chrome toggle. Supplied with two fixing nuts and locking washer.
Order Code 110+25+
218-014DPDT On - Off - On Miniature Toggle Switch - Solder0.630.560.50



Specifications:




Dimensionsmm

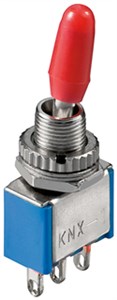

A small rubber boot for our range of Miniature toggle switches
Order Code 110+25+
218-098Rubber Protection Boot for  Miniature Toggle Switches0.600.540.48
