Tactile Switch
Rectangular PCB Switch
Specifications:
Contact Arrangement SPST
Connection Solder
Rating 50mA 12Vdc
Pitch 6.5mm
Dimensions 3.5 x 6mm
Weight 0.023g
PCB mounting horizontal 6mm rectangular tactile momentary action switch with positive click action.
Order Code   1 25+ 50+

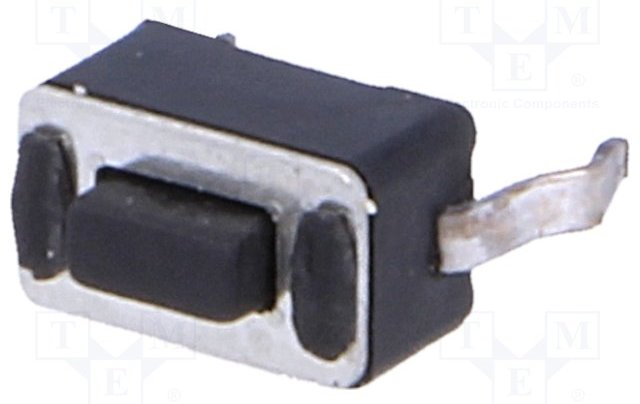

212-070 SPST 6 x 3.5mm PCB Switch - 4.3mm Vertical 0.11 0.08 0.072



SPST 6mm PCB Switch - 4.3mm Vertical Tactile Switch SPST 6mm PCB Switch - 9.5mm Vertical
Specifications:
Contact Arrangement SPST
Connection Solder
Rating 50mA 12Vdc
Pitch 6mm
Dimensions 6 x 6mm

PCB mounting horizontal 6mm square tactile momentary action switch with positive click action. Available with either 4.3mm or 9.5mm button length.
Order Code   1 25+ 50+
212-050 SPST 6mm PCB Switch - 4.3mm Vertical 0.15 0.11 0.074

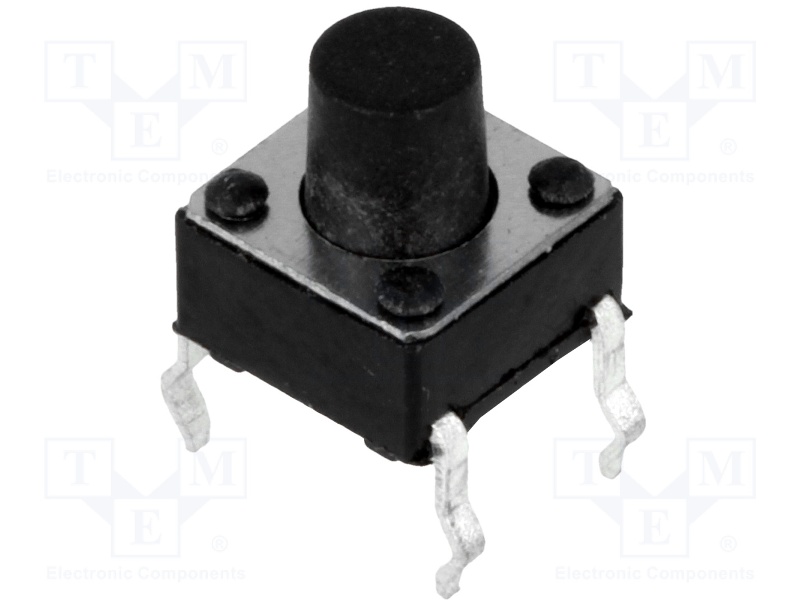

212-052 SPST 6mm PCB Switch - 7.0mm Vertical 0.19 0.1443 0.0962
212-053 SPST 6mm PCB Switch - 9.5mm Vertical 0.21 0.16 0.11



SPST 6mm PCB Switch - 3.85mm Right Angled SPST 6mm PCB Switch - 8.35mm Right Angled
Specifications:
Contact Arrangement SPST
Connection Solder
Rating 50mA 12Vdc
Pitch 6mm
Dimensions 6 x 6mm

PCB mounting vertical 6mm square tactile momentary switch with positive click action. Available with either 3.85mm or 8.35mm button length.
Order Code   1 25+ 50+
212-055 SPST 6mm PCB Switch - 3.85mm Right Angled 0.20 0.15 0.10
212-057 SPST 6mm PCB Switch - 8.35mm Right Angled 0.23 0.17 0.11



SPST 6mm PCB Switch - Square Button Vertical SPST 6mm PCB Switch - Square Button Right Angled
Specifications:
Contact Arrangement SPST
Connection Solder
Rating 50mA 12Vdc
Pitch 6mm
Dimensions 6 x 6mm

PCB mounting momentary action horizontal and vertical 6mm square tactile switch with positive click action. These tactile switches have square button, which will accept a push on coloured cap.
Order Code   1 25+ 50+
212-060 SPST 6mm PCB Switch - Square Button Vertical 0.20 0.1693 0.1354
212-065 SPST 6mm PCB Switch - Square Button Right Angled 0.18 0.14 0.09



Tactile Switch Cap 4.5mmØ - Black Tactile Switch Cap 4.5mmØ - Red
Specifications:
Dimensions 4.5mmØ





Caps for PCB tactile switches, available in Black or Red
Order Code   1 25+ 50+
060-810 Tactile Switch Cap 4.5mmØ - Black 0.10 0.0774 0.0516
060-812 Tactile Switch Cap 4.5mmØ - Red 0.11 0.07 0.06



12mm Square Push Switch
Specifications:
Contact Arrangement SPST
Connection Solder
Rating 50mA 12Vdc
Pitch 5 x 12.5mm
Dimensions 12 x 12mm

PCB mounting horizontal 12mm square tactile momentary action switch with positive click action.
Order Code   1 25+ 50+
212-080 SPST 12 x 12mm PCB Switch - 4.3mm Vertical 0.30 0.251 0.172



Assorted PCB Push Button Switch Set
Contents:
Green Tactile 12Vdc 50mA 5 Pieces
Red Tactile 12Vdc 50mA 5 Pieces
Black Tactile 12Vdc 50mA 5 Pieces
Yellow Tactile 12Vdc 50mA 5 Pieces
Blue Tactile 12Vdc 50mA 5 Pieces
White 12Vdc 50mA 5 Pieces
6mm PCB 4.3mm 12Vdc 50mA 30 Pieces
6mm PCB 9.5mm 12Vdc 50mA 10 Pieces
Round Panel Mount 30Vdc 400mA 3 Pieces
Round Panel Mount with LED 30Vdc 400mA 2 Pieces
Digitast Push Button 24Vdc 5mA 3 Pieces
Digitast Push Button with LED 24Vdc 5mA 2 Pieces
Digitast Push Button with two LED's 24Vdc 5mA 2 Pieces
A selection of PCB mounting push button switches, with and without LED indication. Also included are 5 panel mounted round push switches. All supplied in a handy storage case 200 x 140 48mm.
Order Code   Each
VCS300 82 Assorted PCB Push Button & Switch Set 24.99
