Slide Switch

SPDT Sub-Miniature slide switch 0.5A
Specifications:
Contact Arrangement SPDT
Connection Solder
Rating 500mA 125V
Panel Cut out 3 x 6mm
Mounting 2 x 2mmØ at 15mm Centres
Dimensions 5.5 x 19 x 12mm
Sub miniature single pole change over slide switch suitable for low voltage applications.
Order Code   1 10+ 25+
216-110 SPDT Sub-Miniature slide switch 0.5A 2736 0.225 0.18

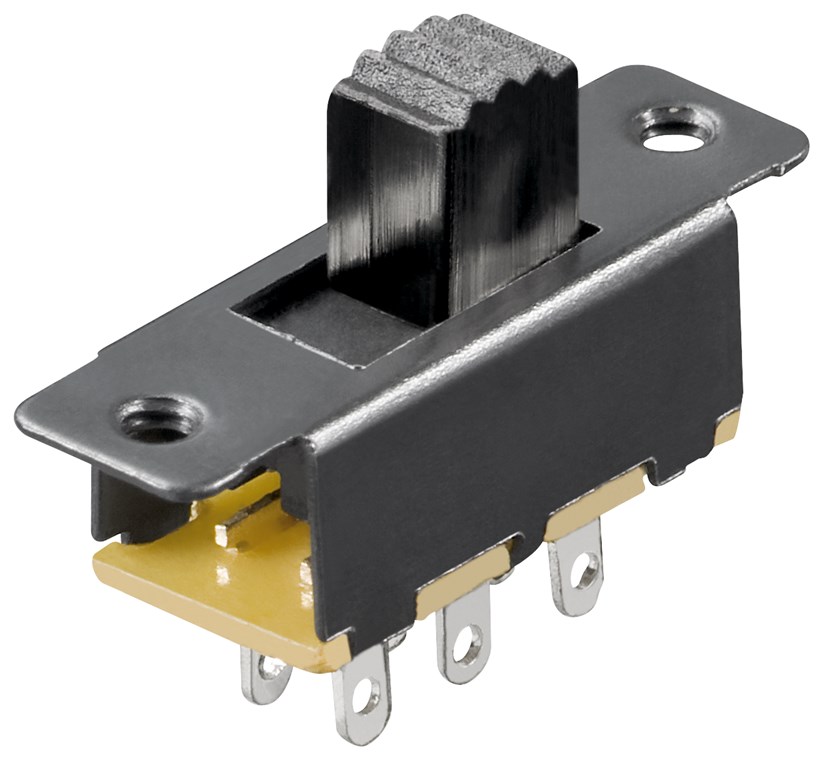

DPDT Miniature slide switch 0.3A
Specifications:
Contact Arrangement DPDT
Connection Solder
Rating 300mA 125V
Panel Cut out 4 x 9mm
Mounting 2 x M2, 19mm Centres
Dimensions 7.5 x 23 x 19mm
Miniature double pole change over slide switch suitable for low voltage applications.
Order Code   1 10+ 25+
216-020 DPDT Miniature slide switch 0.3A 0.21 0.175 0.14

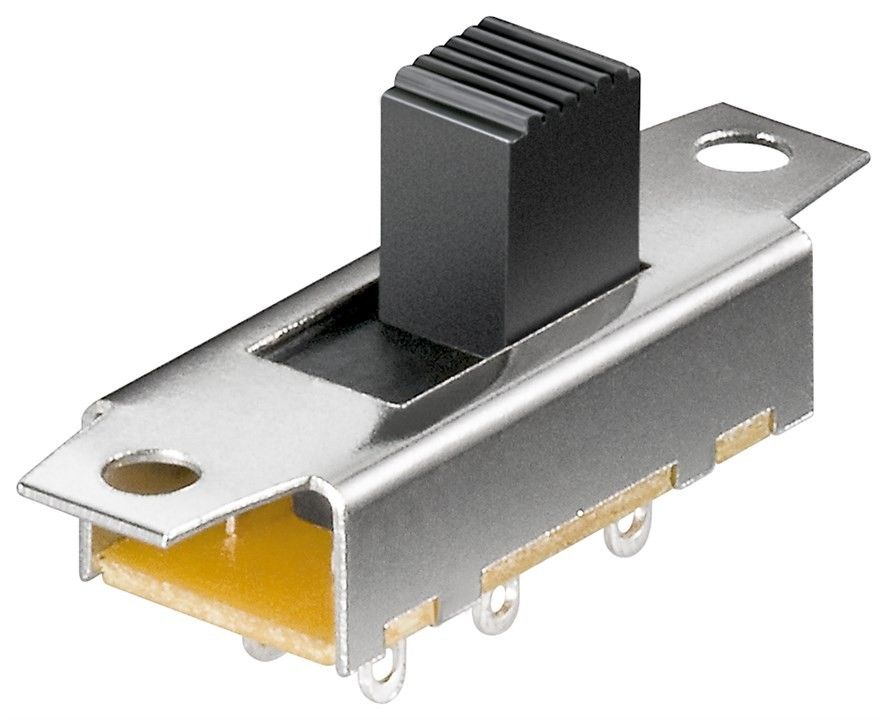

DPDT Standard slide switch
Specifications:
Contact Arrangement DPDT
Connection Solder
Rating 1A 125V
Panel Cut out 24 x 12mm
Mounting 2 x M2.5, 30mm Centres
Dimensions 12 x 35.8 x 19mm
Standard double pole change over slide switch.
Order Code   1 10+ 25+
216-010 DPDT Standard slide switch 1A 0.36 0.324 0.288



Standard slide switch 1A
Specifications:
Contact Arrangement DPDT
Connection Solder
Rating 1A 125V
Panel Cut out 24 x 12mm
Mounting 2 x M2.5, 28mm Centres
Dimensions 12 x 35 x 19mm
Standard double pole change over slide switch, with centre off position.
Order Code   1 10+ 25+
216-011 DPDT C/Off Standard slide switch 1A 0.37 0.333 0.296
