Rotary Switch

Rotary Switch with Make Before Break Contacts
Specifications:
Contact Arrangement Make Before Break
Connection Solder Tag
Rating 150mA 250Vac
Panel Cut-out 9.5mm
Dimensions 57 x 26mm
Spindle 30 x 6.35mm
A range of industry standard MBB (Make Before Break) rotary switches in various configurations, each switch is supplied with adjustable rotation stop.
Order Code   1 10+ 25+
210-012 1 Pole 12 Way Rotary Switch MBB 1.12 1.008 0.952
210-013 2 Pole 6 Way Rotary Switch MBB 1.06 0.9648 0.9112
210-014 3 Pole 4 Way Rotary Switch MBB 1.33 1.1952 1.1288
210-015 4 Pole 3 Way Rotary Switch MBB 1.06 0.9648 0.9112

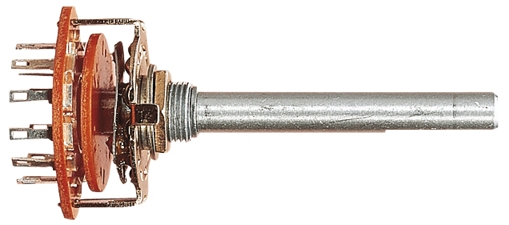

Open Frame Rotary Switch
Specifications:
Contact Arrangement Make Before Break
Connection Solder Tag
Rating 250mA 250Vac
Panel Cut-out 9.5mm
Dimensions 60 x 25mm
Spindle 6.35mm
A range of open frame MBB (Make Before Break) metal shaft rotary switches in various configurations.
Order Code   1 10+ 25+
210-022 1 Pole 12 Way Rotary Switch MBB 1.37 1.2326 1.1641
210-024 3 Pole 4 Way Rotary Switch MBB 1.37 1.2326 1.1641
210-025 4 Pole 3 Way Rotary Switch MBB 1.37 1.2326 1.1641

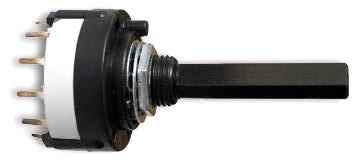

PCB Mounting Rotary Switch
Specifications:
Contact Arrangement Break Before Make
Connection PCB
Rating 150mA 250Vac
Panel Cut-out 9.5mm
Dimensions 57 x 26mm
Spindle 30 x 6.35mm
A range of industry standard BBM (Break Before Make) rotary switches in various configurations, each switch is supplied with adjustable rotation stop.
Order Code   1 10+ 25+
210-042 1 Pole 12 Way Rotary Switch BBM PCB Mounting 1.87 1.6794 1.4928
210-043 2 Pole 6 Way Rotary Switch BBM PCB Mounting 1.32 1.19 1.06
210-044 3 Pole 4 Way Rotary Switch BBM PCB Mounting 1.32 1.19 1.06
210-045 4 Pole 3 Way Rotary Switch BBM PCB Mounting 1.62 1.46 1.30
