Momentary Action Illuminated Push Switches

Red Momentary Push SwitchOrange Push Button SwitchGeen Momentary SwitchBlue SwitchIlluminated Push Button
Specifications:
Switch ActionMomentary
Contact ArrangementSPST
ConnectionSolder
Rating0.5A/230VAC
IP RatingIP40/IP65
Panel Cut out16mmØ
LED Supply12VDC
MaterialNickel Plated Brass
Dimensions

Single pole switch with single through contacts. The switch has a momentary non latching action and is fitted with a 12VDC LED which illuminates a coloured ring around the bezel. These switches are available in five colours.
Order Code 110+

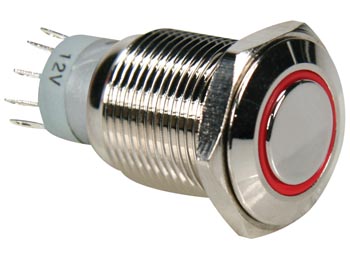

212-652SPST Momentary Push Switch - Red5.795.21

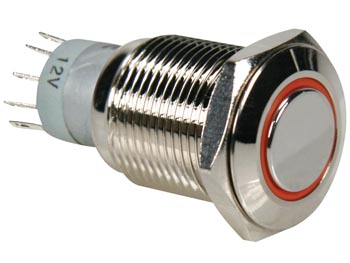

212-653SPST Momentary Push Switch - Orange5.685.11

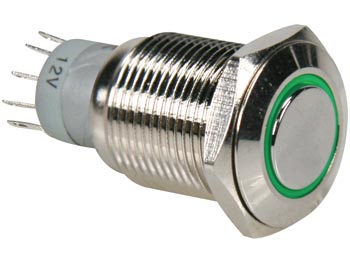

212-655SPST Momentary Push Switch - Green6.225.60

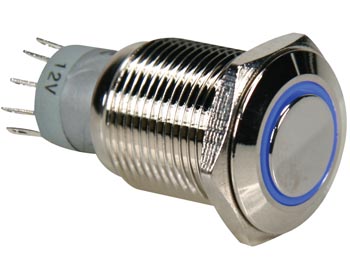

212-656SPST Momentary Push Switch - Blue6.786.10

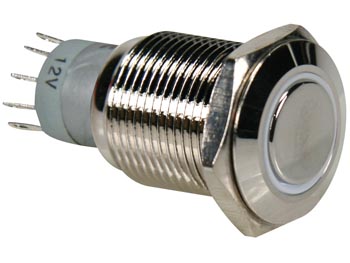

212-659SPST Momentary Push Switch - White5.554.99



Single Pole Push SwitchOrange Momentary SwitchGreen Momentary Action SwitchNon Latching SwitchIlluminated Push Switch
Specifications:
Switch ActionMomentary
Contact ArrangementSPDT
ConnectionSolder
Rating5A/230VAC
IP RatingIP65
Panel Cut out19mmØ
LED Supply12VDC
MaterialStainless Steel
Dimensions

Single pole switch with change over contacts. The switch has a momentary non latching action and is fitted with a 12VDC LED which illuminates a coloured ring around the bezel. These switches are available in five colours.
Order Code Each

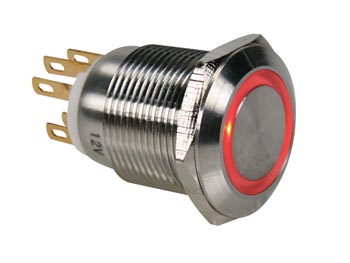

212-682SPDT Momentary Push Switch - Red13.85
212-683SPDT Momentary Push Switch - Orange12.01

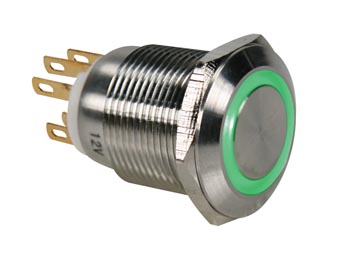

212-685SPDT Momentary Push Switch - Green13.72
212-686SPDT Momentary Push Switch - Blue13.86

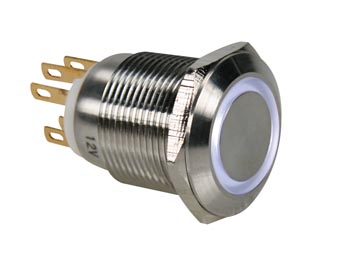

212-689SPDT Momentary Push Switch - White12.57



Stainless Steel SwitchMomentary Action Stainless Steel SwitchGreen Illuminated SwitchBlue Stainless Steel SwitchIlluminated LED Switch
Specifications:
Switch ActionMomentary
Contact ArrangementDPST
ConnectionSolder
RatingIP65
IP Rating25mmØ
Panel Cut outStainless Steel
LED Supply12VDC
Material
Dimensions

Stainless steel bodied switches with double pole single through switch with a momentary action. The switches are fitted with a 12VDC LED which when powered illuminates the coloured bezel around the button. Available in five different colours.
Order Code Each

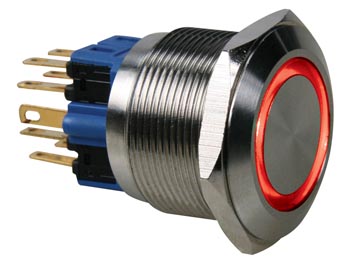

212-692DPST Momentary Push Switch - Red16.87

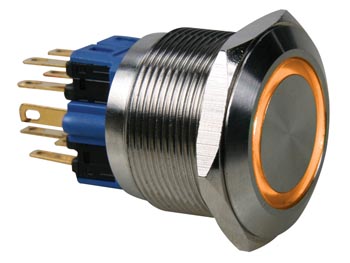

212-693DPST Momentary Push Switch - Orange12.86

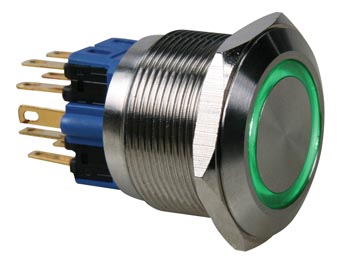

212-695DPST Momentary Push Switch - Green14.16

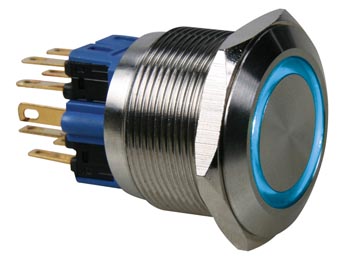

212-696DPST Momentary Push Switch - Blue16.37

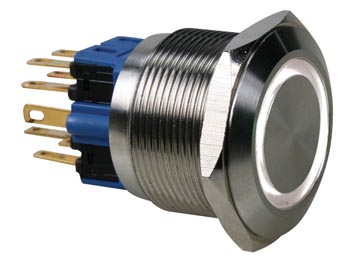

212-699DPST Momentary Push Switch - White12.86
