Micro Switch

V5 Micro Switch SPDT 1A - Button
Specifications:
Contact Arrangement SPDT
Connection Solder
Rating 1A 250Vac
Mounting 2 x 2mmØ, 6mm centres
Dimensions 5.5 x 13.5 x 6mm

V5 Micro miniature micro switch in a compact housing with momentary action button, solder tag terminations.
Order Code   Each
224-310 V5 Micro Switch SPDT 1A - Button 0.76



V5 Micro Switch SPDT 1A - Roller
Specifications:
Contact Arrangement SPDT
Connection Solder
Rating 0.1A 30Vdc
Mounting 2 x 2mmØ, 6mm centres
Dimensions 5.8 x 12.8 x 6mm

V5 Micro miniature micro switch in a compact housing with momentary action with roller, solder tag terminations.
Order Code   Each
224-320 V5 Micro Switch SPDT 1A - Roller 2.50



V4 Miniature Micro Switch SPDT - Button
Specifications:
Contact Arrangement SPDT
Connection Solder
Rating 5A 250Vac
Mounting 2 x 2.5mmØ, 9mm centres
Dimensions 6 x 19.5 x 9.5mm

V4 Miniature micro switch in a small body with momentary action button, solder tag terminations.
Order Code   Each
224-210 V4 Miniature Micro Switch SPDT - Button 0.76



V4 Miniature Micro Switch SPDT - Lever V4 Miniature Micro Switch SPDT - Roller
Specifications:
Contact Arrangement SPDT
Connection Solder
Rating 5A 250Vac
Mounting 2 x 2.5mmØ, 9mm centres
Dimensions 6 x 19.5 x 9.5mm

V4 Miniature micro switch in a small body with momentary action lever actuation and roller action, solder tag terminations.
Order Code   Each
224-215 V4 Miniature Micro Switch SPDT - Lever 0.74
224-220 V4 Miniature Micro Switch SPDT - Roller 0.89

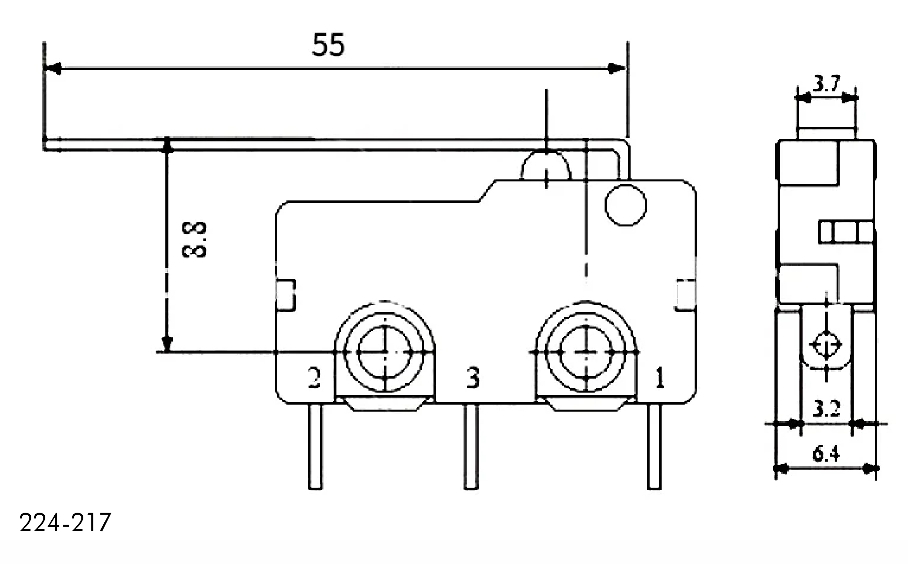

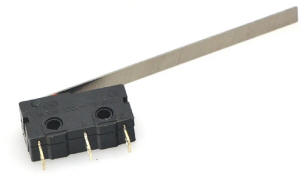

V4 Miniature Micro Switch SPDT - Long Lever (55m)
Specifications:
Contact Arrangement SPDT
Connection Push
Rating 3A 250Vac
Mounting 2 x 3mmØ, 22.5mm centres
Dimensions 10 x 28.5 x 16mm

V4 standard micro switch with momentary action long lever actuated, 6.35mm push on tag terminations.
Order Code   Each
224-217 V4 Miniature Micro Switch SPDT - Long Lever (55m) 1.02

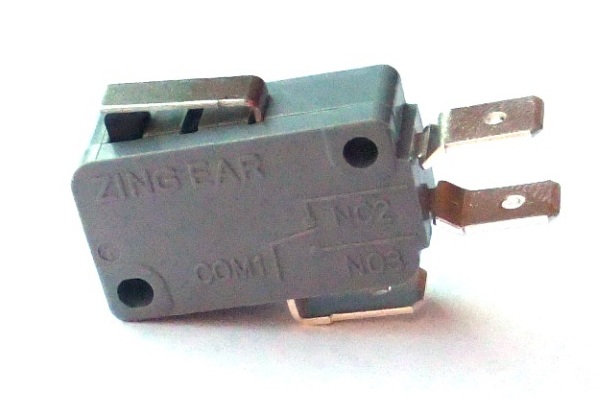

Specifications:
Contact Arrangement SPDT
Connection Push
Rating 15A 250Vac
Mounting 2 x 3mmØ, 22.5mm centres
Dimensions 10 x 28.5 x 16mm

V3 standard micro switch with a momentary action button, 6.35mm push on tag terminations.
Order Code   Each
224-110 V3 Micro Switch SPDT 15A - Button 1.26



V3 Micro Switch SPDT 15A - Lever V3 Micro Switch SPDT - 15A Roller
Specifications:
Contact Arrangement SPDT
Connection Push
Rating 15A 250Vac
Mounting 2 x 3mmØ, 22.5mm centres
Dimensions 10 x 28.5 x 16mm

V3 standard micro switch with momentary action lever actuation and roller action, 6.35mm push on tag terminations.
Order Code   Each
224-115 V3 Micro Switch SPDT 15A - Lever 1.23
224-120 V3 Micro Switch SPDT - 15A Roller 1.46



V3 Micro Switch SPDT 3A - Long Lever
Specifications:
Contact Arrangement SPDT
Connection Push
Rating 3A 250Vac
Mounting 2 x 3mmØ, 22.5mm centres
Dimensions 10 x 28.5 x 16mm

V3 standard micro switch with momentary action long lever actuated, 6.35mm push on tag terminations.
Order Code   Each
224-117 V3 Micro Switch SPDT 3A - Long Lever 2.45
