IR Transmitters and Receivers

IR Demodulator Module 38kHz
Specifications:
Frequency38khz/600s
Wavelength940nm
Signal Range10m
Supply4.5 - 5.5Vdc
Dimensions7.3 x 7.6 x 5.2mm
Weight0.68g
This is a small and high performance receiving device for an IR remote control system. Metal case type.
Order Code 110+
IR38DMIR Demodulator Module 38kHz2.481.98



Slotted Opto Switch
Specifications:
VCE Max35V
IC Max40mA
IF Max50mA
T ON90s
T OFF80s
Fixing Centresmm
Dimensionsmm
Weightg
Data Sheet 724-110 >Download the Handbook for full specifications and applications
A slotted opto coupler with mounting flanges for counting / sensing applications. The aperture is 3 x 6mm with a sensitive zone of 1mm. Housed in a black polycarbonate body with integral mounting flanges. Darlington Transistor output.
Order Code 110+25+50+
724-110Slotted Opto Switch0.680.540.4860.432

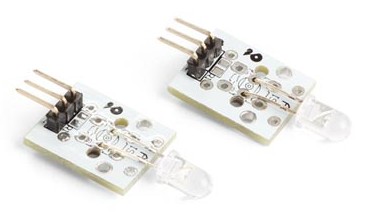

Velleman Infrared Transmitter Module
Specifications:
VCE Max5V
IF Max20mA



Dimensions35 x 15 x 8mm
Weight2g
Data Sheet VMA316 >PDF Download
This module can be used to send data by using infrared light. Commonly used in remote controls. (Attention: There is no current limiting resistor on the module.)
Order Code Each
VMA316Velleman Infrared Transmitter Module (2 Pieces)3.61

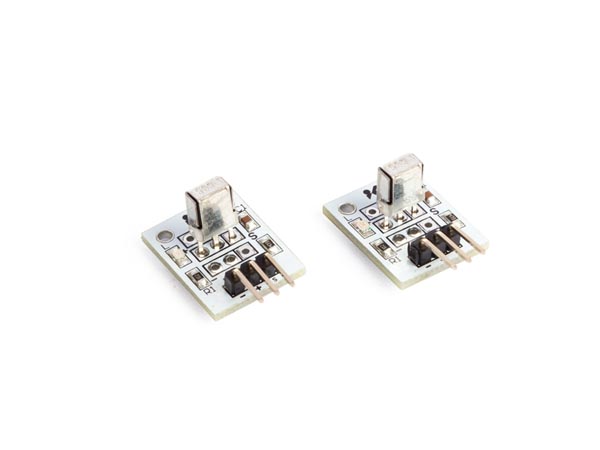

Velleman Infrared Receiver Module
Specifications:
Supply3 - 5V
IC Max1.5mA
BPF 37.9KHz



Dimensions28 x 15 x 10mm
Weightg
Data Sheet VMA317 >PDF Download
The VMA317 (1838) is a miniaturized infrared dtector and preamplifier in one package. Suitable for remote control and other applications requiring improved ambient light rejection. The VMA317 is TTL and CMOS compatibile,
Order Code Each
VMA317Velleman Infrared Receiver Module (2 Pieces)3.12
