Humidity Detector

0 - 100% Humidity Detector for PCB
Specifications:
ModelC-7240
Range0% to 100% RH
Temperature0 to 60 °C

Dimensionsmm
Weightg

A PCB mounted Humidity detector. Suitable for the detection of high humidity, the formation of dew or condensation.

Order Code Each
241-1400 - 100% Humidity Detector for PCB6.44

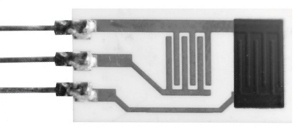

0 - 100% Humidity Detector
Specifications:
ModelC-7241
Range0% to 100% RH
Temperature0 to 60 °C

Dimensionsmm
Weightg

Suitable for the detection of high humidity, the formation of dew or condensation.

Order Code Each
241-1450 - 100% Humidity Detector8.19



Velleman MM102 Analogue Humidity Sensor
Specifications:
ModelMM102
Range11 to 89%
Accuracy3%
Response5 sec
Power Supply5VDC 200µA
Cable Length100mm
Dimensions22 x 22 x 5mm
Weightg
Download Handbook >PDF Download
The MM102 mini module from Velleman. This breakout board is equipped with a hygrometric sensor, thus it lends itself to detect the moisture found in the environment it is placed in. It operates at a very low voltage (it correctly operates at up to 5.5 Vcc) and typically absorbs 200 microamperes: it is thus ideal even in applications that are battery powered, and in which a minimal absorption is required. The HIH-5030-001 sensor has the great virtue of supplying an analogue output signal, consisting in a DC voltage that varies in an almost linear manner, as the relative humidity (RH) varies; thus it may be interfaced both to analogue circuits that check the air flow of a dehumidifier installation, and it may be read by an A/D converter or by a microcontroller’s input that is supplied with an analogue/digital converter.
Order Code Each
MM102Velleman Analogue Humidity Sensor16.99
