PIR Motion Detector

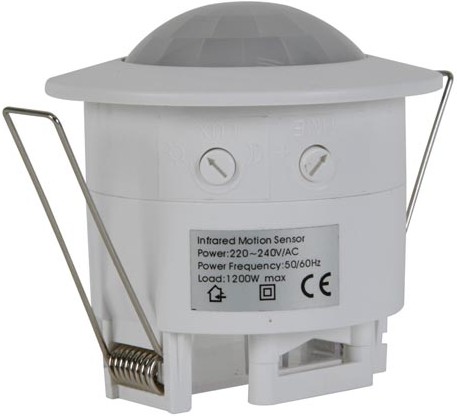

PIR41 Round PIR motion detector
Specifications:
Model PIR41
Output Load 1200W (Resistive)
Detection Range 6m (360º)
Light Control <3 to 2000 lux
Power Supply 230V AC
Dimensions (Sensor) 45mmØ
Dimensions (Module) 60 x 60mmØ
Weight 100g
Download Handbook > Download the Handbook for full specifications and applications
The PIR41 is a ceiling mounted PIR motion detector. The wide detection field is made up of up and down, left and right service field. It works by receiving human motion infrared rays. When someone enters the detection field it can operate the load at once. With automatic day/night function, adjustable light control time (10s - 7min) and sensitivity it can be used with various types of lamps and lanterns. For indoor use only and designed for installation into existing equipment.
Order Code   Each
031-221 PIR41 PIR motion sensor (240VAC) 8.99


Mini 240Vac PIR motion detector

Specifications:
Model 96006
Output Load (maximum)

200W (1.20A)
Detection Range 6m (360º)
Light Control <3 to 2000 lux
Power Supply 230V AC
Dimensions (Sensor) 15 x 24mmØ
Dimensions (Module) 55 x 25 x 35mm
IP Rating 20
Weight 46g
* Not suitable to switch low voltage power supplies which have an inrush current >3.0A
Download Handbook > Download the Handbook for full specifications and applications
PIR motion sensor

Flush-mounted ceiling mounting; 360° detection, 6 m range, indoor use (IP20), suitable for LED's
  • Miniaturisation allows almost invisible mounting in raised or cavity ceilings/lamps
  • Especially designed for indoor lighting, lamps, LED's, etc.
  • Accurate detection of people and animals in darkness or twilight
  • Multi adjustable sensor for optimal detection setup
  • Designed for the easy and quick ceiling flush-mounting

The PIR output can be adjust between 7 and 420 seconds




Order Code   Each
031-406 Mini 240Vac PIR motion detector 8.58



Velleman EMS106 PIR
Specifications:
Model EMS106
Output Load (maximum)

800W Tungsten (3.5A)

200W Fluorescent/LED (1.25A)
Detection Range 8m (100º)
Light Control <3 to 2000 lux
Cable Length 180mm
Power Supply 180 - 240V AC
Dimensions (Sensor) 10 x 22mmØ
Dimensions (Module) 55 x 25 x 35mm
IP Rating 20
Weight 41g
Download Handbook > Download the Handbook for full specifications and applications

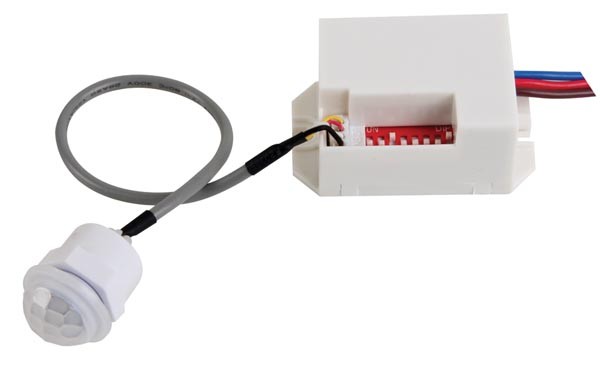

A Mains powered PIR sensor with adjustable 'on' time and light level sensitivity. The EMS106 PIR sensor is suitable for fitting inside walls, doors or ceilings, it only requires a 12mmØ hole. The sensor has adjustment for high and low light level and movement sensitivity. The PIR output can be adjust to stay 'on' between 5, 30 or 60 seconds or between 3, 5 or 8 minutes. These adjustments are made using the DIL switch fitted in the main module. This PIR replaces the popular PIR415 and uses a conventional relay to switch the load.


EMS106 Mini PIR motion detector 240 Volt Mini PIR
Order Code   Each
031-306 EMS106 Mini PIR motion detector module 240Vac 10.27

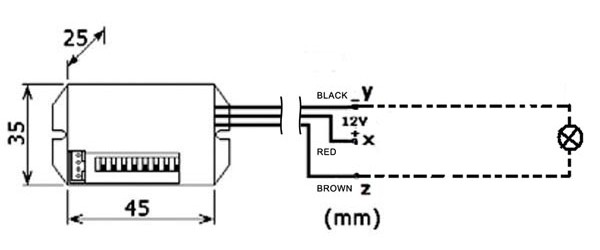

EMS114 PIR sensor
Specifications:
Model EMS114
Output Load (maximum) 12Vdc  25W 2.1A
Detection Range 8m (100º)
Light Control < 3 Lux to 2000 Lux
Cable Length 180mm
Power Supply 12V DC
Dimensions (Sensor) 10 x 22mmØ
Dimensions (Module) 55 x 25 x 35mm
Weight 41g
Download Handbook > Download the Handbook for full specifications and applications

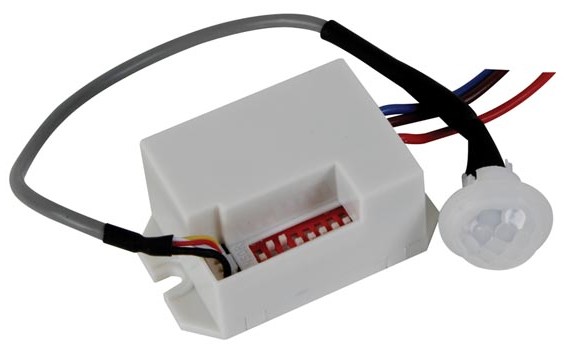

A 12V powered PIR sensor with adjustable 'on' time and light level sensitivity. The EMS114 PIR sensor is suitable for fitting inside walls, doors or ceilings, it only requires a 12mmØ hole. The sensor has adjustment for high and low light level and movement sensitivity. The PIR output can be adjust to stay 'on' between 5, 30 or 60 seconds or between 3, 5 or 8 minutes. These adjustments are made using the DIL switch fitted in the main module. Can be used with piezo sounder to give an audible warning. This PIR replaces the popular PIR416 and uses a conventional relay to switch the load.


12 Volt PIR Small 12V PIR
Order Code   Each
031-314 EMS114 Mini PIR motion detector module 12Vdc 15.82

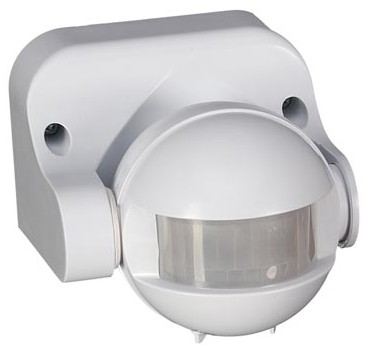

EMS103 PIR Motion Detector
Specifications:
Model EMS103
Output Load

1200W (Resistive)

300W (Fluorescent)

1000W (LED)
Switch Relay
Detection Range 12m (180º)
Ambient Light <10 lux to Daylight
Time Delay 10 sec - 7 mins

Power Supply 230V 50HzAC (0.45W)
IP Rating IP41
Dimensions 87 x 83 x 65.5Ømm
Weight 115g
Download Handbook > Download the Handbook for full specifications and applications
The EMS103 is a very sensitive and energy-saving motion detector. The detector’s position can be adjusted vertically and is triggered when movement is detected. The EMS103 can distinguish between night and day, you can adjust the vertical position of the device to suit your needs. Note that the detector is much more sensitive to objects moving across the detection area than it is to objects coming straight at it.
Order Code   Each
031-230 PIR Motion Detector 7.46



PIR Motion Detector - Flush Mounting
Specifications:
Model PIR500
Output Load 500W (Resistive)
Detection Range 12m (140º)
Ambient Light <3 to 1000 lux
Time Delay 5 - 420 sec
Installation Height 0.4 - 1.8m
Power Supply 230V 50HzAC (0.45W)
Dimensions 80 x 80 x 55mm
Weight 163g
Download Handbook > Download the Handbook for full specifications and applications
The PIR500 is an infrared sensor, installation of the device is very easy and suited to a wide range of applications. It has three modes of operating On, Off and Movement (PIR). The device can operate in both day and night situations, thanks to the
adjustability of the PIR sensitivity and the light sensitivity. The duration of the
output signal can also be adjusted.
Order Code   Each
031-250 PIR Motion Detector - Flush Mounting 6.89



PIR700 Sensor
Specifications:
Model PIR700
Output Load (Relay NO)

1200W (Resistive)

300W (Inductive)
Detection Range 12m (180º)
Ambient Light <3 to 2000 lux
Time Delay 10 sec - 7 min
Installation Height 1.8 - 2.5m
IP Rating IP44
Power Supply 230V 50HzAC (0.5W)
Dimensions 80 x 80 x 55mm
Weight 163g
Download Handbook > Download the Handbook for full specifications and applications

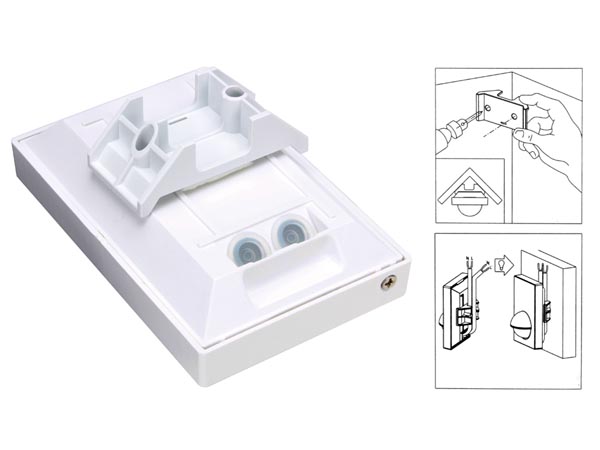

The PIR700 infrared sensor can be installed flat on a wall or in corner. It will trigger as soon as it detects movement. It has simple adjustment for ambient light trigger level and time duration (up to 7 minutes) to switch output load off.
Velleman PIR700
Order Code   Each
031-270 PIR Motion Detector - Flush Mounting 9.84
