Relays

Ultra Miniature Relay 12Vdc SPDT Ultra Miniature Relay
Specifications:
Contacts SPDT
Contact Rating 1A 24Vdc
Coil Resistance (6V) 80Ω
Coil Resistance (12V) 360Ω
Coil Resistance (24V) 1280Ω
Dimensions 10.5 x 15.5 x 11mm
Single pole PCB mounting relay with change over contacts, available with a choice of three coil voltages.
Order Code   1 10+ 25+
242-120 6Vdc SPDT Ultra Miniature Relay 1.50 1.20 1.08
242-122 12Vdc SPDT Ultra Miniature Relay 1.40 1.23 1.05
242-124 24Vdc SPDT Ultra Miniature Relay 1.90 1.52 1.37



Sub miniature DIL Relay
Specifications:
Contacts DPDT
Contact Rating 1A 24Vdc
Coil Resistance (4.5V) 50Ω
Coil Resistance (12V) 320Ω
Dimensions 10.6 x 21x 12mm
Download Data Sheet >
Double pole PCB mounting relay with change over contacts, available with a choice of two coil voltages. This relay can be soldered direct on to board or inserted into an IC socket.
Order Code   1 10+ 25+
242-340 4.5Vdc DPDT Sub miniature DIL Relay 1.38 1.10 0.99
242-342 12Vdc DPDT Sub miniature DIL Relay 1.35 1.13 0.90



PCB Miniature Relay
Specifications:
Contacts SPDT
Contact Rating 3A 110Vac
Coil Resistance (12V) 400Ω
Dimensions 16 x 19 x 15mm
Single pole PCB mounting relay with change over contacts.
Order Code   1 10+ 25+
242-522 12Vdc SPDT PCB Miniature Relay 0.68 0.61 0.54



PCB Miniature Relay
Specifications:
Contacts SPDT
Contact Rating 5A 110Vac
Coil Resistance (6V) 100Ω
Coil Resistance (12V) 400Ω
Coil Resistance (24V) 1600Ω
Dimensions 16 x 20 x 20mm
Single pole PCB mounting relay with change over contacts, available with a choice of two coil voltages.
Order Code   1 10+ 25+
242-530 6Vdc SPDT 5A PCB Miniature Relay 0.72 0.65 0.58
242-532 12Vdc SPDT 5A PCB Miniature Relay 0.84 0.76 0.67
242-534 24Vdc SPDT 5A PCB Miniature Relay 0.93 0.84 0.79



10A PCB Power Relay
Specifications:
Contacts SPDT
Contact Rating 10A 250Vac
Coil Resistance (6V) 55
Coil Resistance (12V) 200Ω
Coil Resistance (24V) 1200Ω
Dimensions 29 x 12.5 x 24mm
Single pole PCB mounting relay with change over contacts, available with a choice of three coil voltages.
Order Code   1 10+ 25+
242-720 6Vdc SPDT 10A PCB Power Relay 2.08 1.66 1.49
242-722 12Vdc SPDT 10A PCB Power Relay 1.30 1.04 0.94
242-724 24Vdc SPDT 10A PCB Power Relay 1.63 1.30 1.17



16A PCB Power Relay
Specifications:
Contacts SPDT
Contact Rating 16A 250Vac
Coil Resistance (12V) 270Ω
Coil Resistance (24V) 1100Ω
Dimensions 29 x 13 x 26mm
Single pole PCB mounting relay with change over contacts, available with a choice of two coil voltages.
Order Code   1 10+ 25+
242-732 12Vdc SPDT 16A PCB Power Relay 2.16 1.94 1.73
242-734 24Vdc SPDT 16A PCB Power Relay 2.08 1.87 1.66



Specifications:
Contacts DPDT
Contact Rating 5A 250Vac
Coil Resistance (6V) 55
Coil Resistance (12V) 275Ω
Coil Resistance (24V) 1100Ω
Dimensions 29 x 13 x 26mm
Double pole PCB mounting relay with change over contacts, available with a choice of three coil voltages. Suitable base available 241-144
Order Code   1 10+ 25+
242-740 6Vdc DPDT 5A PCB Power Relay 2.35 1.88 1.69
242-742 12Vdc DPDT 5A PCB Power Relay 2.33 1.86 1.67
242-744 24Vdc DPDT 5A PCB Power Relay 1.96 1.58 1.42



Latching Relay 2 Coil Latching Relay
Specifications:
Contacts SPDT
Contact Rating 1A 125Vac
Coil Resistance (12V) 960Ω
Dimensions 20 x 10 x 11mm

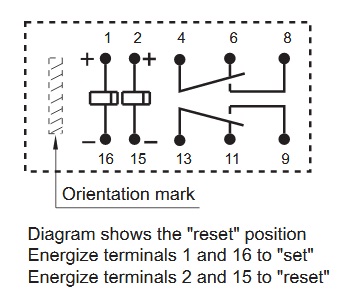

Double pole PCB mounting latching relay with change over contacts. This relay has two 12Vdc coils - one to latch relay contacts the other to release contacts. Applications include point motor indication on model railways. Fits standard 16-Pin Dual In Line sockets
Order Code   1 10+ 25+
242-352 12Vdc 960ohm Dual Coil DPDT 1A PCB Latching Relay 2.64 2.38 2.24



PCB Solid State Relay
Specifications:
Contacts SPST
Contact Rating 3A 240V
Coil Resistance 2kΩ
Operating Voltage 4 - 32Vdc
Dimensions 43 x 10 x 25mm
Weight g

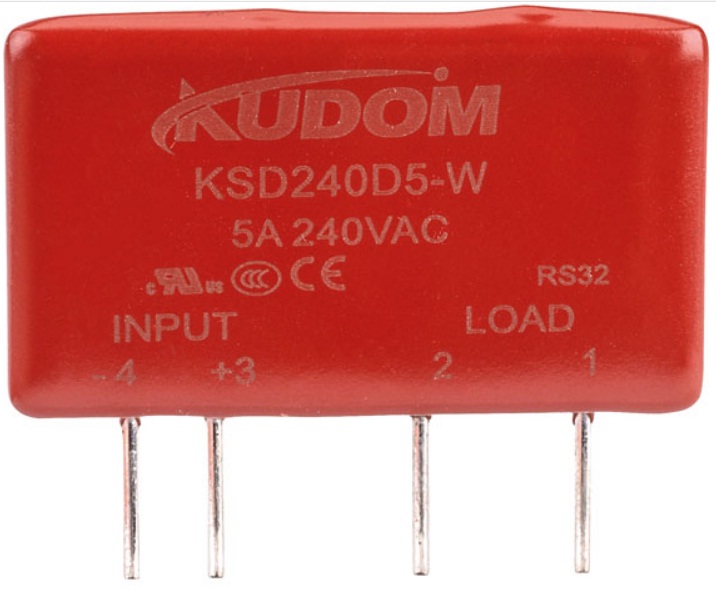

A small PCB mounting sold state relay with low power consumption will operate directly from TTL and CMOS voltages. Optically isolated with zero voltage activation, built in snubber network to minimise EMI and RFI. High surge rating allows for both lamp and motor load control. Relay has LED status indicator.
Order Code   1
242-749 Solid State Relay (PCB Mounting) 12.45



Specifications:
Contacts SPCO
Contact Rating 1A 125V
Current 40mA
Operating Voltage 5Vdc
Dimensions 22 x 22 x11mm
Weight g
Download Handbook >

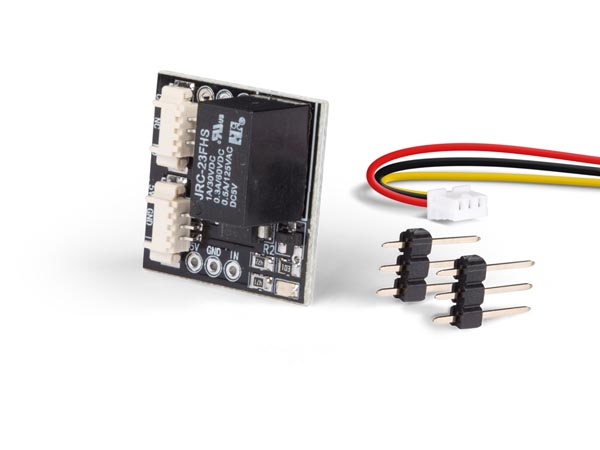

The MM105 mini module from Velleman is a mini relay module. It is small, versatile and easy to use! Use this SMD prototyping board by connecting it to your existing circuits in order to perform tests and build prototypes. Converts digital (0/3-5 V) signal to drive small relay. Power consumption input signal 0.6mA at 3.3V, 0.95mA at 5V, 2.5mA at 12V. Ideal for use with any microcontroller based controllers i.e.: Arduino, Picaxe and Rasberry Pi modules.
Order Code   Each
MM105 Velleman 5V Relay Mini Module 8.99



Solid State Power Relay
Specifications:
Contacts SPST
Contact Rating 25A 240V
Coil Resistance 2kΩ
Operating Voltage 4 - 32Vdc
Fixing Centres 47mm
Dimensions 57 x 43 x 27mm
Weight g
A chassis mounting solid state power relay. Connection is made via M4 screw terminals, will operate directly from CMOS and TTL voltages. Zero voltage switching, optically isolated, zero current deactivation (minimises EMI/RFI). High surge rating allows for both resistive and inductive load control.
Order Code   1
243-739 Solid State Power Relay   24.58



30A Automotive Relay
Specifications:
Contacts SPDT
Contact Rating 30A 12Vdc
Coil Resistance (12V) 90Ω
Dimensions 41 x 29 x 29mm


Single pole relay with change over contacts, connection by 6.3mm push on crimp terminals. Ideal for most automotive applications. (Mounting socket available separately)
Order Code   1 10+ 25+
243-102 12Vdc SPST 30A Automotive Relay 2.23 1.78 1.60



Relay Socket for 30A Car Relay
Specifications:
Relay Base
Wire Length 600mm



Dimensions mm
Cable mounted socket with five wires attached, suitable for 30A automotive relay. (243-102)
Order Code   1 10+ 25+
244-405 Relay Socket for 30A Car Relay 1.71 1.54 1.37



5A Plug-in Power Relay
Specifications:
Contacts 4PDT
Contact Rating 5A 240Vac
Coil Resistance (12V) 160Ω
Coil Resistance (24V) 520Ω
Dimensions 35 x 22 x 28mm
Four pole relay with change over contacts, this relay is designed to fit into panel mounted socket. Available with a choice of two coil voltages.
Order Code   1 10+ 25+
243-582 12Vdc 4PDT 5A Plug-in Power Relay 3.48 3.31 3.13
243-584 24Vdc 4PDT 5A Plug-in Power Relay 3.60 3.42 3.24



PCB Power Relay Socket, DPDT PCB Mounting
Specifications:
Relay Base 95.15.2


Dimensions 30 x 13 x 9.2mm
Weight 3.84g

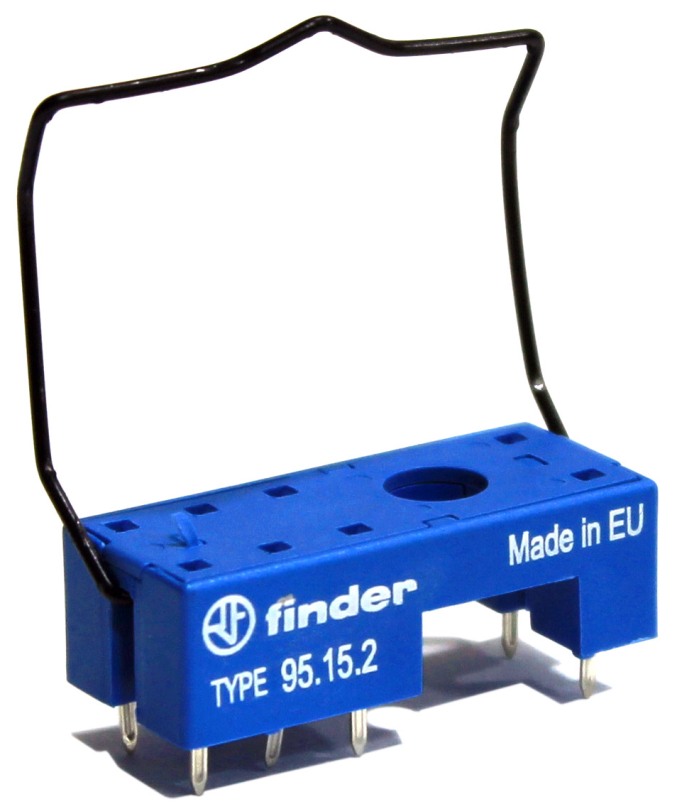

PCB mounted relay base for DPDT Relay's, retaining clip supplied. Suitable for use with relay 242-740, 242-742 and 242-744.
Order Code   1 10+ 25+
244-141 PCB Power Relay Socket, DPDT PCB Mounting 1.15 1.09 1.04



4PDT Relay Socket
Specifications:
Relay Base



Panel Cut out mm
Dimensions mm
Panel mounted relay base for 4PDT Relay's
Order Code   1 10+ 25+
244-381 Plug-in Power Relay Socket, 4PDT PCB Mounting 1.93 1.74 1.64



10A Plug-in Power Relay
Specifications:
Contacts DPDT
Contact Rating 10A 250Vac
Coil Resistance (12V) 111Ω
Coil Resistance (24V) 450Ω
Coil Resistance (240V) 8000Ω
Dimensions mm
Double pole relay with change over contacts, Housed in plastic case with octal base. Available with 12 or 24Vdc coil or 240Vac coil.
Order Code   1 10+ 25+
243-742 12Vdc DPDT 10A Plug-in Power Relay 7.04 6.34 5.98
243-744 24Vdc DPDT 10A Plug-in Power Relay 7.04 6.34 5.98
243-749 240Vac DPDT 10A Plug-in Power Relay 7.38 6.64 6.27



Octal Relay Base
Specifications:
Relay Base




Dimensions mm
Octal relay base for plug in power relays
Order Code   1 10+ 25+
244-547 Plug-in (Octal) Power Relay Base, DPDT Chassis Mounting 2.99 2.69 2.54



5A Plug-in Power Relay
Specifications:
Contacts 3PDT
Contact Rating 5A 240Vac
Coil Resistance (240V) 9500Ω


Dimensions mm
Three pole mains voltage relay with change over contacts, Housed in plastic case with 11 pin base.
Order Code   1 10+ 25+
243-769 240Vac 3PDT 5A Plug-in Power Relay 7.50 6.75 6.38



Eleven Pin Relay Base
Specifications:
Relay Base




Dimensions mm
11 pin relay base for plug in power relay's
Order Code   1 10+ 25+
244-567 Plug-in (11 Pin) Power Relay Base, 3PDT Chassis Mounting 4.23 3.81 3.60
