Laptop Power Supplies

Specifications:
Output Voltage	12, 15 16, 18, 19, 20 and 24Vdc
Power	96 Watts
Supply	100 - 230Vac
Dimensions	116 x 55 x 35mm
Weight	480g

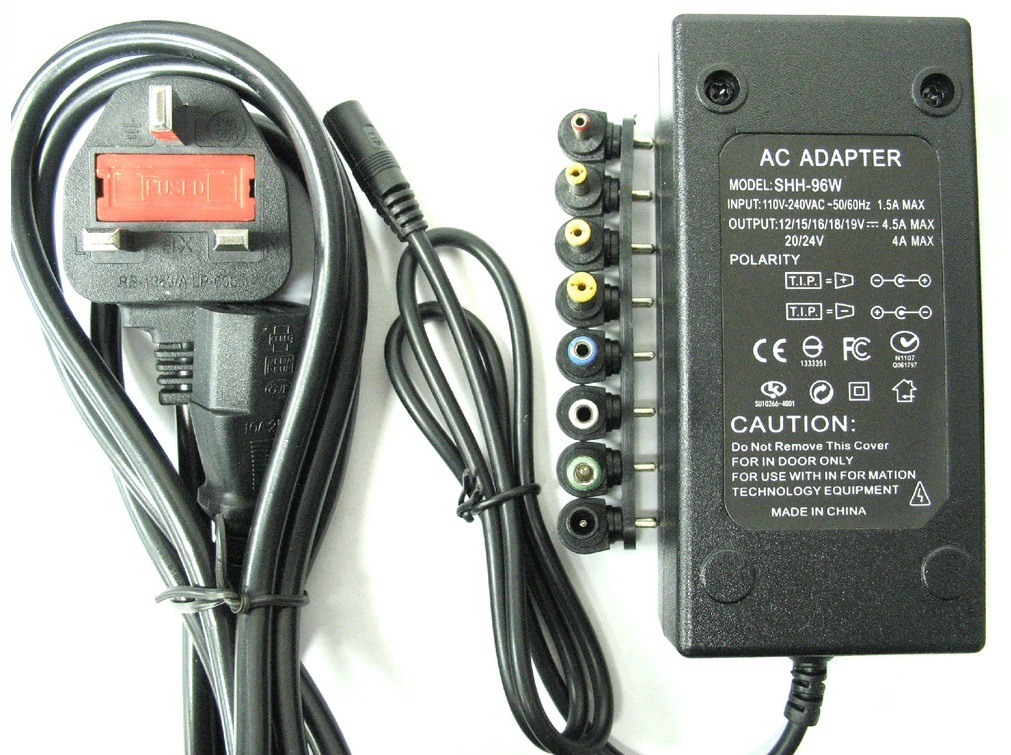

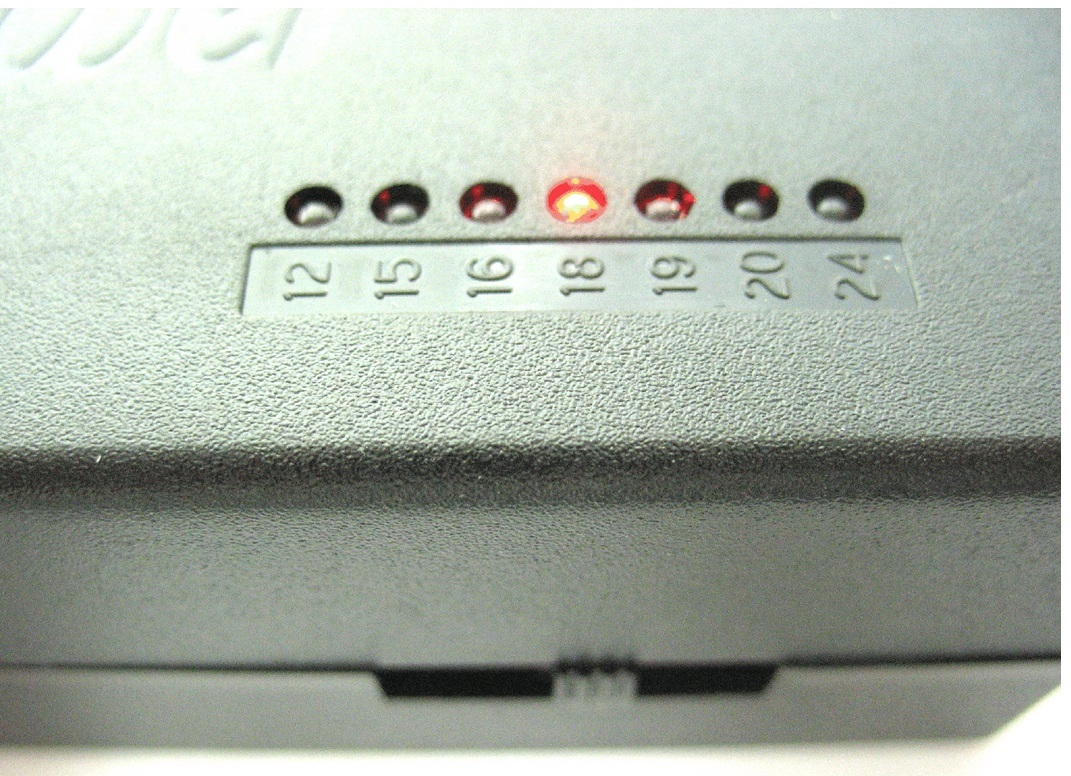

A 4.5 Amp universal notebook adapter to charge nearly any type of notebook. The adapter is supplied with several different and easily changeable power tips, which are compatible with many lap tops and notebook devices. The correct output is obtained by using the selector switch on the power supply. The centre pin of this adaptor is positive (+)

Supplied with the following DC Adaptor plugs.

6.3 x 3.0mm, 6.0mm with centre pin, 5.5 x 2.5mm, 5.5 x 2.1mm, 5.5 x 1.7mm, 4.8 x 1.7mm, 4.0 x 1.7mm, 3.5 x 1.35mm

Order Code		Each
460-340	Universal Regulated Laptop Power Supply (4.5A max)	15.51

Specifications:
Output Voltage	15, 16, 18.5, 19, 19.5 and 20Vdc
Power	90 Watts
Supply	100 - 230Vac
Dimensions	128 x 50 x 30mm
Weight	650g

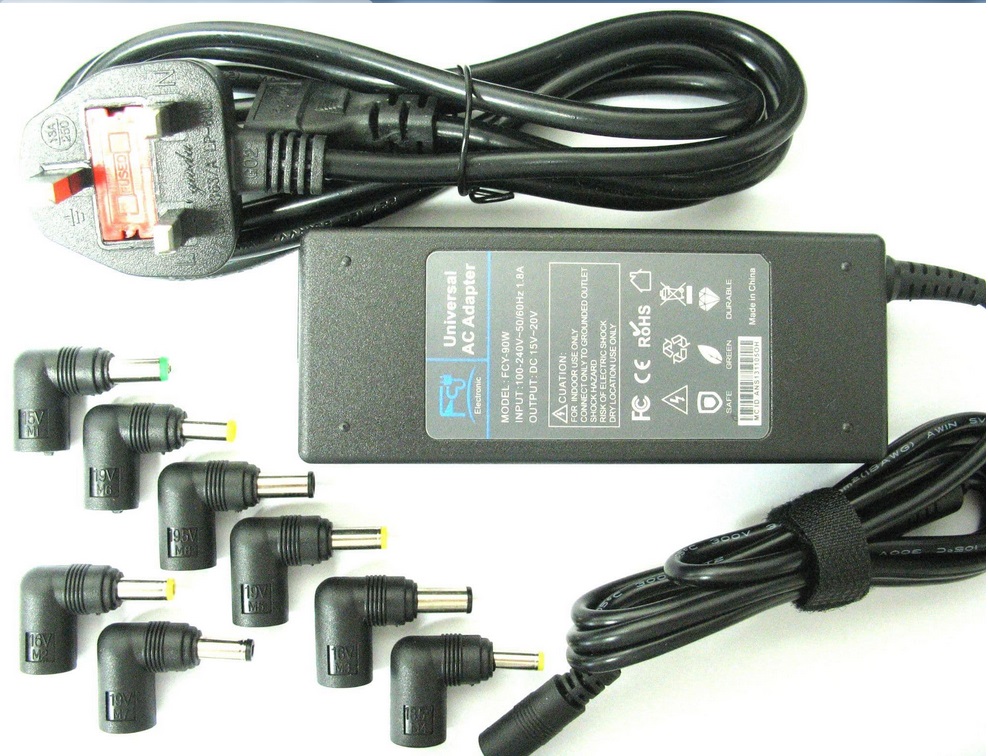

A 6.0 Amp universal notebook adapter to charge nearly any type of laptop or notebook. The adapter is supplied with eight different DC plugs. Depending on which DC plug is selected determins the output of this power supply. The centre pin of this adaptor is positive (+)

Supplied with the following DC Adaptor plugs.

6.5 x 4.4mm (16v) for Sony/Fujitsu (5.63a max current)
6.5 x 4.4mm (19.5v) for Sony (4.62a max current)
6.3 x 3.0mm (15v) for Toshiba (6a max current)
5.5 x 3.0mm (19v) for Samsung (4.74a max current)
5.5 x 2.5mm (16v) for IBM/Lenovo (5.63a max current)
5.5 x 2.5mm (19v) for Acer/Compaq/Delta/HP/Fujitsu/Gateway/Toshiba/Liteon/Asus/Dell (4.74a max current)
5.5 x 1.7mm (19v) for Acer/Liteon (4.74a max current)
4.8 x 1.7mm (18.5v) for HP/Compaq (4.86a max current)

Order Code		Each
460-342	Universal Regulated Laptop Power Supply (6.0A max)	18.69
