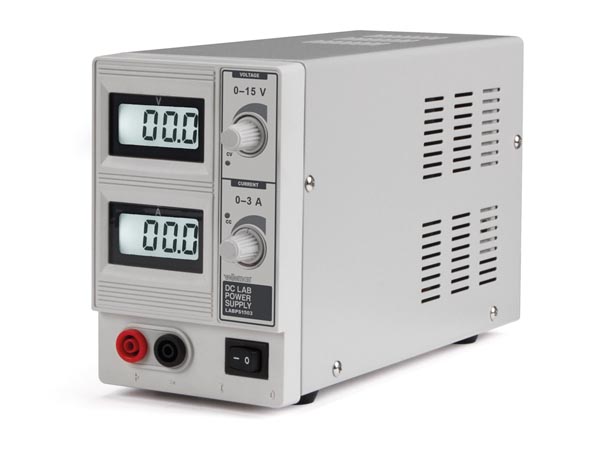

0 - 15V 3A Bench Power Supply

Specifications:
Model	LABPS1503
Output Voltage	0 - 15Vdc
Output Current	0 - 3A
Ripple Voltage	< 1mV
Connection	4mm Sockets
Power Supply	230V 0.8A
Dimensions	95 x 150 x 240mm
Weight	2.958kg

Download Handbook >

LABPS1503 is a compact 3A regulated power supply with variable output voltage and current limit. Indication of Voltage and Current is displayed on two backlit LCD meters. Full short circuit protection, metal case with on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-545	0 - 15V 3A Bench Power Supply, LCD display	63.85

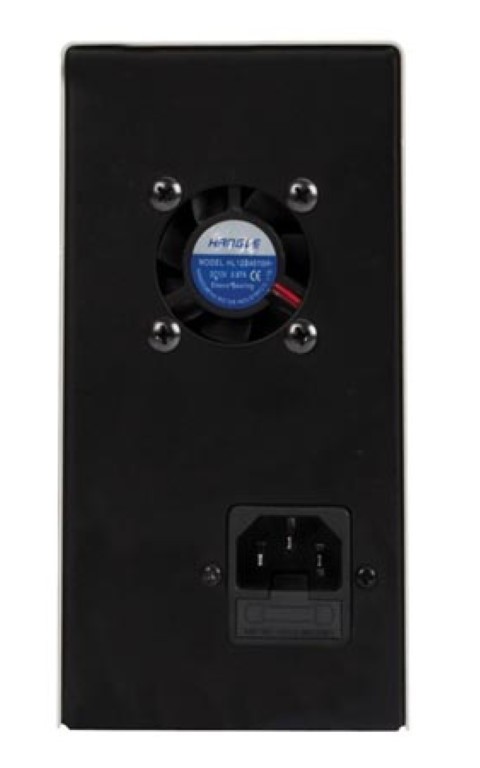

0 - 30V 3A Bench Power Supply

Specifications:
Model	LABPS3003SM
Output Voltage	0 - 30Vdc
Output Current	0 - 3A
Ripple Voltage	<1mV
Connection	4mm Shrouded Sockets
Power Supply	230VAC 50Hz 126W
Dimensions	85 × 160 × 205mm
Weight	1.334kg

Download Handbook >

LABPS3003SM is a small switch mode regulated bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and voltage on LCD display, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-547	0 - 30V 0 - 3A Bench Power Supply, LCD Display	68.65

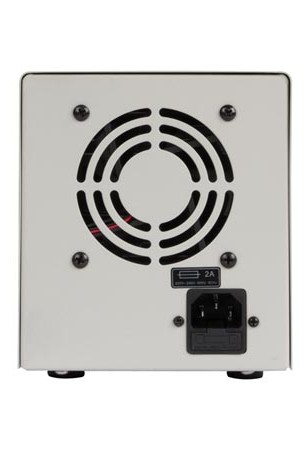

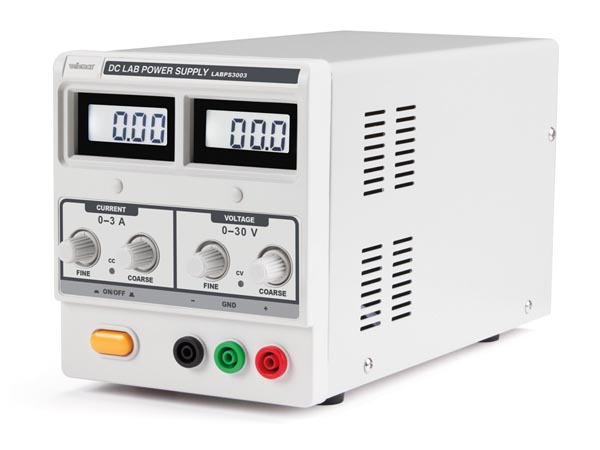

Specifications:
Model	LABPS3003
Output Voltage	0 - 30Vdc
Output Current	0 - 3A
Ripple Voltage	<1mV
Connection	4mm Shrouded Sockets
Power Supply	230VAC 50Hz 126W
Dimensions	135 × 160 × 280 mm
Weight	4.3kg

Download Handbook >

LABPS3003 is a conventional transformer coupled regulated bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and voltage on LCD display, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-546	0 - 30V 0 - 3A Bench Power Supply, LCD Displays	89.88

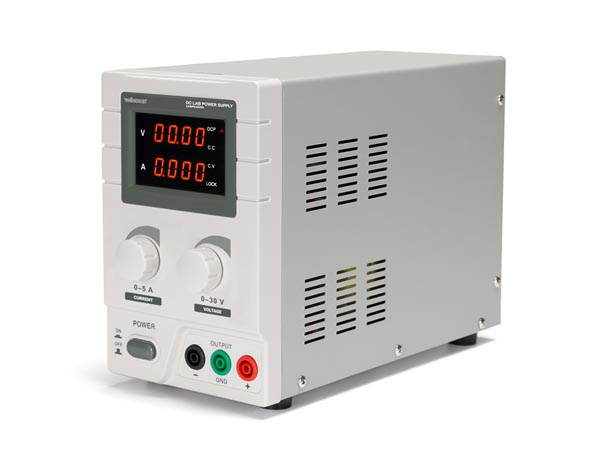

0 - 30V 5A Bench Power Supply

Specifications:
Model	LABPS3005N
Output Voltage	0 - 30Vdc
Output Current	0 - 5A
Ripple Voltage	<1mV
Ripple Current	3mA
Connection	4mm Sockets
Power Supply	230VAC 50Hz 150W
Dimensions	117 x 190 x 270 mm
Weight	4.8kg

Download Handbook >

The LABPS3005N is a conventional transformer coupled high-quality lab power supplies operate in both constant voltage and constant current mode. Our lab power supplies effortlessly switch to Constant Current mode when overloaded, providing a constant maximum output. If a short circuit occurs, you don't have to worry, because this power supply is equipped with automatic current limiting (unless you have set a lower current value).

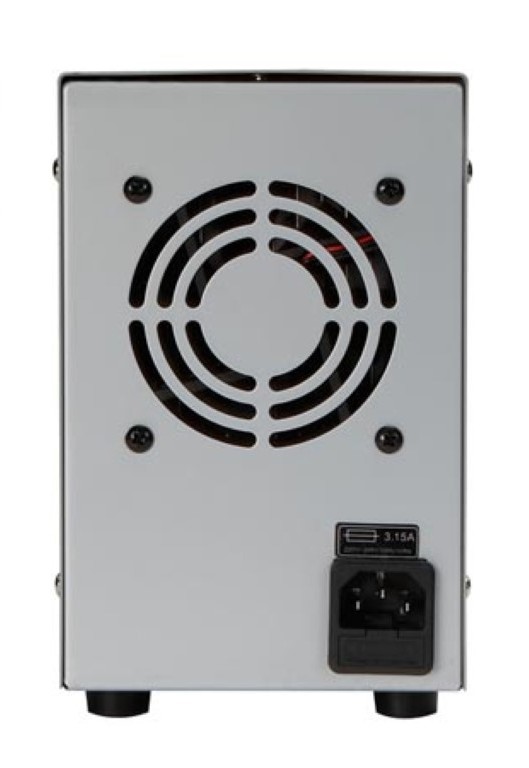

0 - 30V 0 - 5A Bench Power Supply (Rear View)

Order Code		Each
461-548	0 - 30V 0 - 5A Bench Power Supply, LED Display	82.37

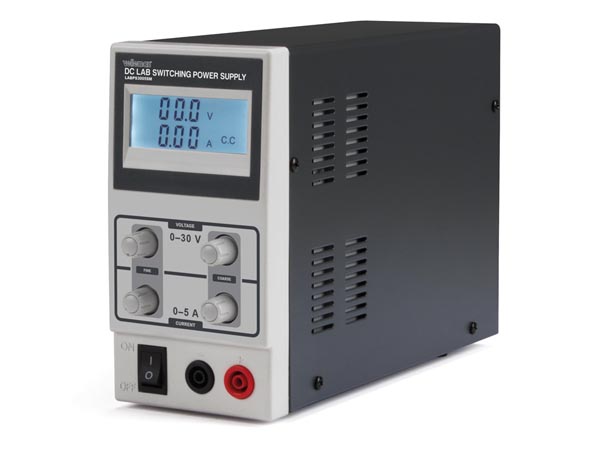

Specifications:
Model	LABPS3005SM
Output Voltage	0 - 30Vdc
Output Current	0 - 5A
Ripple Voltage	200mV
Ripple Current	3mA
Connection	4mm Sockets
Power Supply	230VAC 50Hz 210W
Dimensions	85 x 160 x 205 mm
Weight	1.62kg

Download Handbook >

The LABPS3005SM is a small switch mode high-quality lab power supplies operate in both constant voltage and constant current mode. Our lab power supplies effortlessly switch to Constant Current mode when overloaded, providing a constant maximum output. If a short circuit occurs, you don't have to worry, because this power supply is equipped with automatic current limiting (unless you have set a lower current value).

Order Code		Each
461-549	0 - 30V 0 - 5A Bench Power Supply, LCD Display	99.31

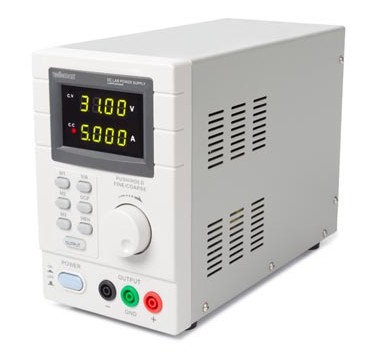

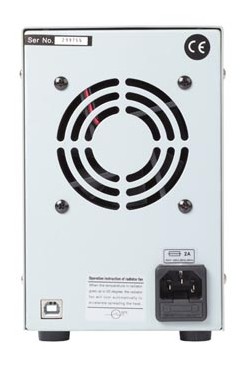

0 - 30V 5A Programmable Bench Supply

Specifications:
Model	LABPS3005DN
Output Voltage	0 - 30Vdc
Output Current	0 - 5A
Ripple Voltage	<1mV
Ripple Current	3mA
Connection	4mm Sockets
Power Supply	230VAC 50Hz 345W
Dimensions	115 x 190 x 240mm
Weight	5.3kg

Download Handbook >

Download Software >

The LABPS3005DN is a programmable bench power supply with adjustable voltage and current. The LABPS3005DN has dual LED display for simultaneous indication of voltage and current. Adjustable voltage and current limiter, 3 programmable memories for your most used settings. Computer connection via USB, software for Windows XP, Vista and W7 (32bits + 64bits) included. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-580	0 - 30V. 0 - 5A Programmable Bench Power Supply, LED Display	130.00

0 - 30V 10A Bench Power Supply

0 - 30V. 0 - 10A Bench Power Supply, LED Display

Specifications:
Model	LABPS3010
Output Voltage	0 - 30Vdc
Output Current	10A
Ripple Voltage	<1.5mV
Ripple Current	5mA
Connection	4mm Shrouded Sockets
Dimensions	360 x 265 x 140mm
Weight	12.4kg

Download Handbook >

A regulated 0 - 30v bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and supply voltage on two LED displays, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-554	0 - 30V. 0 - 10A Bench Power Supply, LED Display	198.53

Specifications:
Model	LABPS3010SM
Output Voltage	0 - 30Vdc
Output Current	10A
Ripple Voltage	<100mV
Ripple Current	5mA
Connection	4mm Shrouded Sockets
Power Supply	230VAC 50Hz 420W
Dimensions	230 x 160 x 85mm
Weight	1.67kg

Download Handbook >

Order Code		Each
461-556	0 - 30V. 0 - 10A Bench Power Supply, LCD Display	144.31

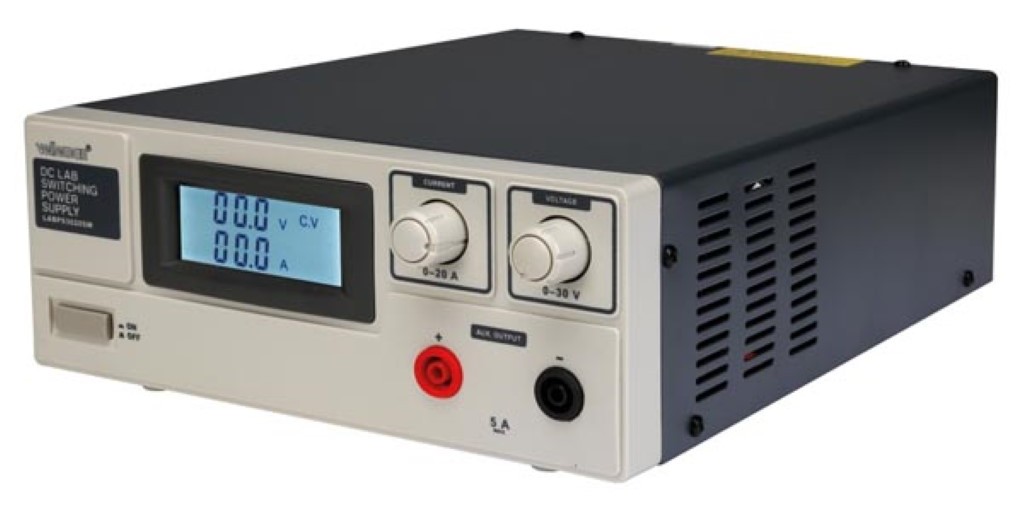

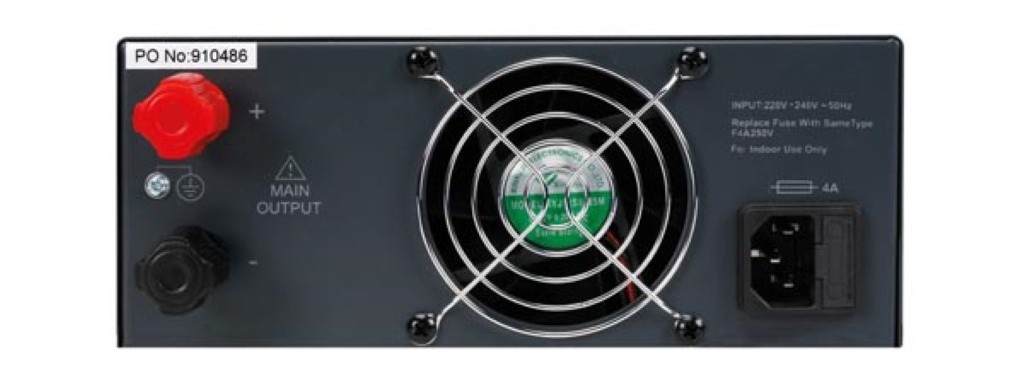

0 - 30V 20A Bench Power Supply

Specifications:
Model	LABPS3020SM
Output Voltage	0 - 30Vdc
Output Current	20A
Ripple Voltage	<20mV
Ripple Current	5mA
Connection	4mm Shrouded Sockets
Power Supply	230VAC 50Hz 840W
Dimensions	336 x 214 x 87mm
Weight	2.7kg

Download Handbook >

LABPS3020SM is a regulated 0 - 30v bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and supply voltage on two LCD displays, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-557	0 - 30V. 0 - 20A Bench Power Supply, LCD Display	231.33

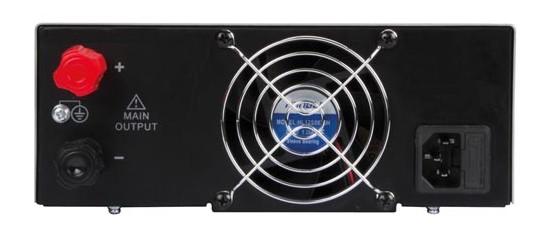

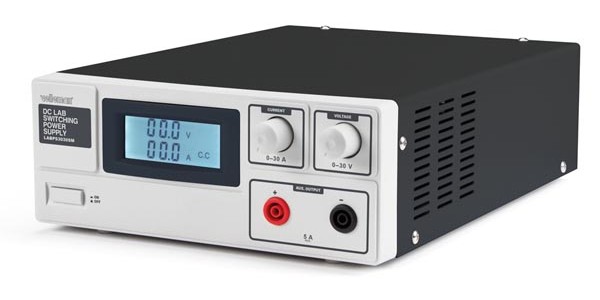

0-30V 30A Bench Power Supply

Specifications:
Model	LABPS3030SM
Output Voltage	0 - 30Vdc
Output Current	30A
Ripple Voltage	<100mV

Connection	4mm Shrouded Sockets
Power Supply	230VAC 50Hz 6.2A
Dimensions	87 x 214 x 336mm
Weight	2.8kg

Download Handbook >

Velleman LABPS3030SM regulated bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and supply voltage on a twin display, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-558	0 - 30V 0 - 30A Bench Power Supply, LCD Displays	373.25

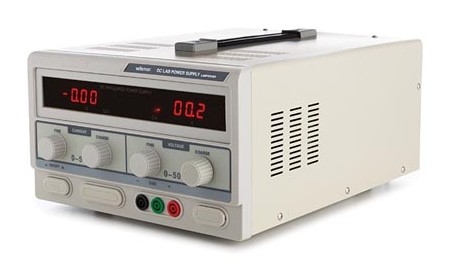

0-50V 5A Bench Power Supply

Specifications:
Model	LABPS5005
Output Voltage	0 - 50Vdc
Output Current	5A
Ripple Voltage	<150mV

Connection	4mm Shrouded Sockets
Power Supply	230VAC 50Hz 405W
Dimensions	265 × 140 × 360 mm
Weight	17kg

Download Handbook >

Velleman LABPS5005 regulated bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and supply voltage on a twin display, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-559	0 - 50V 0 - 5A Bench Power Supply, Digital Display	231.33

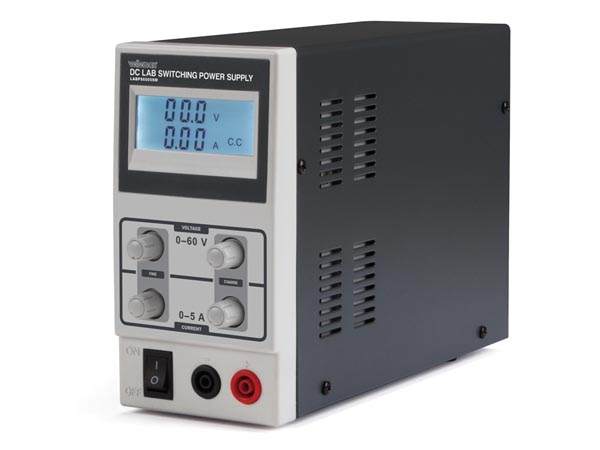

0-60V 5A Bench Power Supply

Specifications:
Model	LABPS6005SM
Output Voltage	0 - 60Vdc
Output Current	5A
Ripple Voltage	<150mV

Connection	4mm Shrouded Sockets
Dimensions	85 x 160 x 230mm
Weight	1.6kg

Download Handbook >

Velleman LABPS6005SM regulated bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and supply voltage on a twin display, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

0 - 5A Bench Power Supply with Digital Display

Order Code		Each
461-553	0 - 60V 0 - 5A Bench Power Supply, Digital Display	152.28

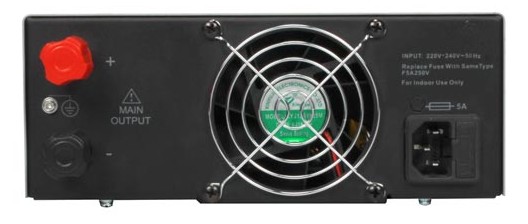

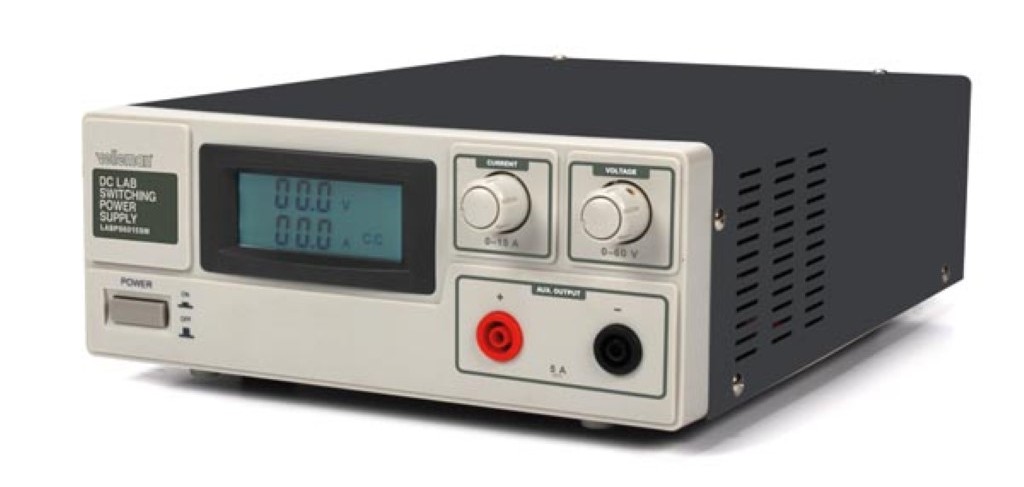

0-60V 15A Bench Power Supply

Specifications:
Model	LABPS6015SM
Output Voltage	0 - 60Vdc
Output Current	15A
Ripple Voltage	<200mV

Connection	4mm Shrouded Sockets
Power Supply	230VAC 50Hz 6.2A
Dimensions	87 x 214 x 336mm
Weight	2.9kg

Download Handbook >

Velleman LABPS6015SM regulated bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. Clear indication of load current and supply voltage on a twin display, short circuit and “Foldback” overload protection. Housed in a metal case with mains on/off switch. For suitable 4mm plugs see our connectors section of this website.

Order Code		Each
461-561	0 - 60V 0 - 15A Bench Power Supply, Digital Display	365.16

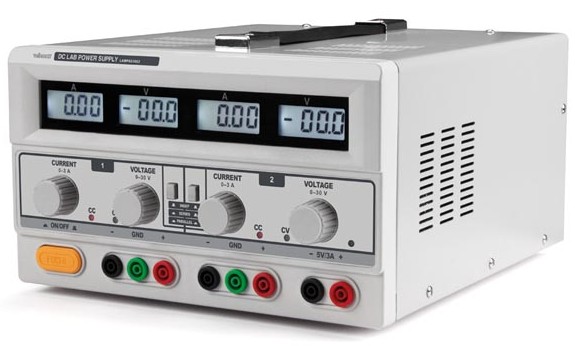

Dual 0-30V 3A Bench Power Supply

Specifications:
Model	LABPS23023
Output Voltage	2 x 0 - 30Vdc
Output Current	2 x 3A
Output Voltage (Fixed)	5V @ 3A
Ripple Voltage	<1mV
Connection	4mm Shrouded Sockets
Dimensions	360 × 265 × 165mm
Weight	7.139kg

Download Handbook >

Velleman LABPS23023 triple output regulated bench power supply with variable voltage and current limiting facilities, with coarse and fine adjustment. This power supply also has a fixed 5V 3A output. The output setting can be coupled (master/slave), Series & Parallel switch-able, Short circuit and “Foldback” overload protection, Metal case with on/off switch. For suitable 4mm plugs see our connectors section of this website.
