DC Chassis Power Supplies

Chassis Power Supply 25 Watts
Specifications:
Output Voltage12Vdc or 24Vdc
Power Rating25Watts
TerminalsScrew
Ripple100mV
Supply85 - 264Vac
Dimensions100 x 97 x 35mm
Weight0.35kg
Subject to technical modifications.
Fixed DC voltage chassis mounted power supplies. Suitable for many applications including CCTV, Alarm Panels, Instrumentation and LED lighting. These power supplies must be used incorporated in to a protective enclosure or box which has adequate ventilation. They are fully short circuit and overload protected. Power supply output can be adjustment 10% rated output voltage.

Order Code Each
460-60012Vdc Chassis Power Supply 25 Watts14.24
460-65024Vdc Chassis Power Supply 25 Watts14.22



Chassis Power Supply 40 Watts
Specifications:
Output Voltage12Vdc or 24Vdc
Power Rating40Watts
TerminalsScrew
Ripple100mV
Supply85 - 264Vac
Dimensions130 x 97 x 37mm
Weight0.4kg
Subject to technical modifications.

Fixed DC voltage chassis mounted power supplies. Suitable for many applications including CCTV, Alarm Panels, Instrumentation and LED lighting. These power supplies must be used incorporated in to a protective enclosure or box which has adequate ventilation. They are fully short circuit and overload protected. Power supply output can be adjustment 10% rated output voltage.

Chassis Power Supply
Order Code Each
460-60512Vdc Chassis Power Supply 50 Watts21.95
460-65524Vdc Chassis Power Supply 40 Watts18.60



Chassis Power Supply 60 Watts
Specifications:
Output Voltage12Vdc or 24Vdc
Power Rating75Watts
TerminalsScrew
Ripple120mV
Supply85 - 264Vac
Dimensions160 x 97 x 35mm
Weight0.44kg
Subject to technical modifications.

Fixed DC voltage chassis mounted power supplies. Suitable for many applications including CCTV, Alarm Panels, Instrumentation and LED lighting. These power supplies must be used incorporated in to a protective enclosure or box which has adequate ventilation. They are fully short circuit and overload protected. Power supply output can be adjustment 10% rated output voltage.

Chassis Power Supply
Order Code Each
460-61012Vdc Chassis Power Supply 75 Watts23.43
460-66024Vdc Chassis Power Supply 75 Watts21.33



Chassis Power Supply 100 Watts
Specifications:
Output Voltage12Vdc or 24Vdc
Power Rating100Watts
TerminalsScrew
Ripple200mV
Supply85 - 264Vac
Dimensions200 x 97 x 35mm
Weight0.58kg
Subject to technical modifications.
Fixed DC voltage chassis mounted power supplies. Suitable for many applications including CCTV, Alarm Panels, Instrumentation and LED lighting. These power supplies must be used incorporated in to a protective enclosure or box which has adequate ventilation. They are fully short circuit and overload protected. Power supply output can be adjustment 10% rated output voltage.
Chassis Power Supply
Order Code Each
460-61512Vdc Chassis Power Supply 100 Watts24.27
460-66524Vdc Chassis Power Supply 100 Watts26.33

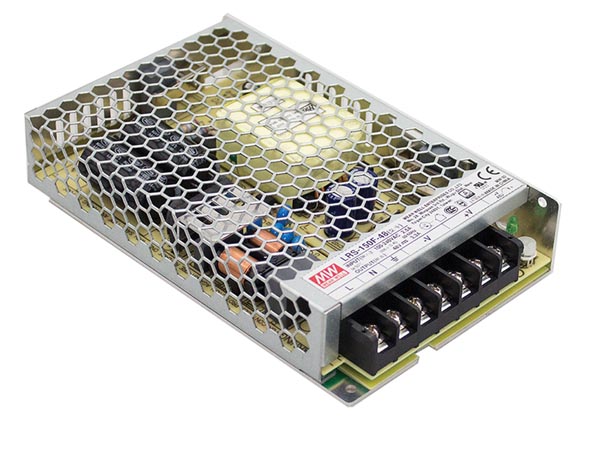

Chassis Power Supply 150 Watts
Specifications:
Output Voltage12Vdc or 24Vdc
Power Rating150Watts
TerminalsScrew
Ripple180mV
Supply85 - 264Vac
Dimensions200 x 110 x 50mm
Weight0.75kg
Subject to technical modifications.
Fixed DC voltage chassis mounted power supplies. Suitable for many applications including CCTV, Alarm Panels, Instrumentation and LED lighting. These power supplies must be used incorporated in to a protective enclosure or box which has adequate ventilation. They are fully short circuit and overload protected. Power supply output can be adjustment 10% rated output voltage.
Chassis Power Supply
Order Code Each
460-62012Vdc Chassis Power Supply 150 Watts29.96
460-67024Vdc Chassis Power Supply 150 Watts31.89



Chassis Power Supply 300 Watts
Specifications:
Output Voltage12Vdc or 24Vdc
Power Rating300Watts
TerminalsScrew
Ripple200mV
Supply85 - 264Vac
Dimensions227 x 114 x 49mm
Weight0.92kg
Subject to technical modifications.
Fixed DC voltage chassis mounted power supplies with fan cooling. Suitable for many applications including CCTV, Alarm Panels, Instrumentation and LED lighting. These power supplies must be used incorporated in to a protective enclosure or box which has adequate ventilation. They are fully short circuit and overload protected. Power supply output can be adjustment 10% rated output voltage.
Chassis Power Supply
Order Code Each
460-62512Vdc Chassis Power Supply 320 Watts66.46
460-67524Vdc Chassis Power Supply 320 Watts66.46
