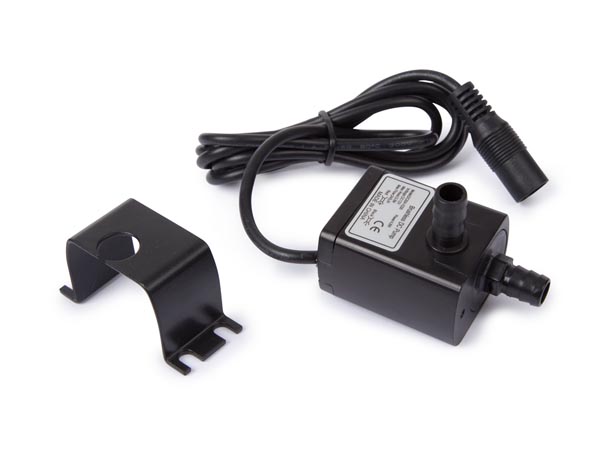

Electric Pump

Electric Water Pump
Specifications:
Voltage 5 to 12Vdc
Load Current 350mA@12Vdc
Wattage 4.2 Watts
Maximum Flow 240 litres/hour
Maximum Head 3m
Noise <40dB
IP Rating IP68
Inlet 8.0mmØ
Outlet 8.0mmØ
Dimensions 51 x 34 x 42.7mm
Weight 80g
Use this brushless DC pump to create your own plant watering system or build an automatic aquarium refill system by using your Arduino. This small yet powerful water pump can be put to use in many applications, continuously work, submersible or land use (not self-priming). Supplied fitted with 2.1mm DC Socket (Centre Pin +). Suitable Plug 069-240
Order Code   Each
VMA421 Water Pump 5 - 12Vdc 10.21

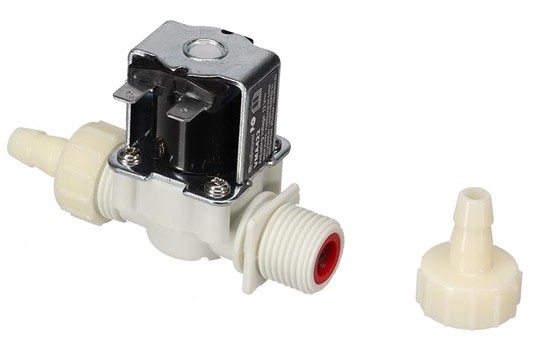

12 Volt Valve
Specifications:
Voltage 12Vdc
Load Current 500mA
Working Pressure

0.02 to 0.8 BAR

(29 to 116 PSI)
Response Time (Open) 0.15 sec
Response Time (Close) 0.3 sec
Connection 6.3mm
Inlet 8.0mmØ
Outlet 8.0mmØ
Dimensions mm
Weight 95g
Small DC control valve, valve opens when 12 Volt are applied across terminals. Ideal for experimental applications.
Order Code   Each
VMA422 Water Valve, 12Vdc 6.91
