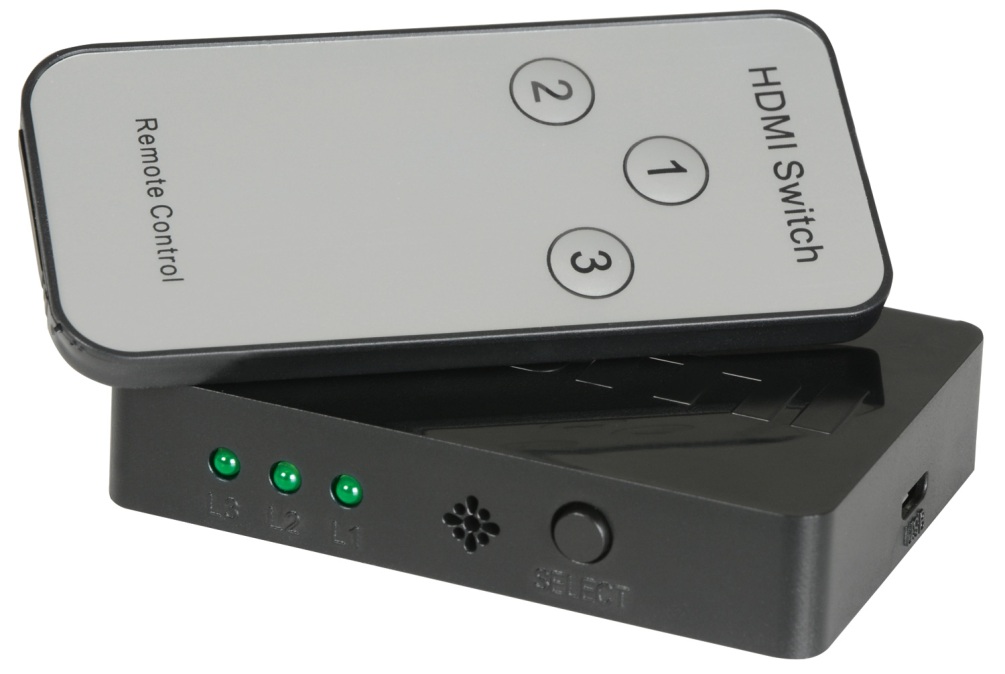

3-Way HDMI Input Selector

 3-Way HDMI Selector
  • Small form factor chassis
  • No power needed, works using the power carried by the HDMI cables
  • Live input LEDs
  • Supports 4K, up to full HD 1080p, 3D and 8bit deep colour image formats
  • Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats
  • HDCP2.2 Compliant
  • Supplied with IR Remote Control
Specifications:
Model HDP31M
Input 3 x HDMI™ A Female
Outputs 3
Version 1.4a HDMI™ High speed)
Control Manual
Video Resolution Up to 4K, 1080p @ 60Hz, 3D, 8bit deep colour
HDCP Support Yes
Dimensions 77 x 56 x 15mm
Weight 80g
Download Handbook > Download the Handbook for full specifications and applications
Connect 3 HDMI sources to a single device, ideal if you just need one more HDMI socket on your telly. This 3-port HDMI selector switch enables you to shift between the connected devices without having to constantly unplugging them. This product is fully operational without an external power supply. Supports 4K and 3D.

Order Code   Each
452-449  3-Way HDMI Selector with Remote 6.99



5-Way HDMI Input Selector Switch

HDMI selector switch
Specifications:
Model VSWI3455BK
Input 5 x HDMI™ A Female
Outputs 1 x HDMI™ Female
Version 1.3 HDMI™ High speed)
Control Manual
Video Resolution 480p, 720p, 1080i and1080p
HDCP Support Yes
Power Supply 5Vdc
Dimensions 115 x 70 x 30mm
Weight 106g
Download Handbook > Download the Handbook for full specifications and applications
Connect up to 5 different HDMI devices to a flat screen TV. Control button on the top panel enable you to change the desired input device. A LED indicates which source device is selected. The switch supports HDMI High Speed standard and is fully compatible with Deep Colour, 3D and 4K technology. Power supply required if using with HDMI leads longer than 1.5m
5-Port HDMI switch
Order Code   Each
437-115 5-Port HDMI switch with 3D support 12.26

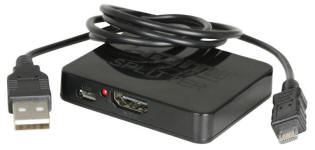

2-Way HDMI Signal Splitter

2-Way HDMI Splitter • Supports 4K2K and 3D
• Easy installation: plug and play
• Splits 1 HDMI output in 2 HDMI outputs
• Amplifies the digital video signal
Specifications:
Model 128.852
Input 1 x HDMI™ A Female
Outputs 2 x HDMI™ Input Female
Max. resolution 3840 x 2160
Bandwidth 340 MHz
Max Baud Rate 3.4 Gbps
Function control Automatic

HDCP version

HDCP 1.4a Compatible
Power Supply 5Vdc 500mA (USB)
Dimensions 62 x 51 x 11 mm
Weight 31g
Download Handbook > Download the Handbook for full specifications and applications
This 4K compatible mini HDMI splitter allows a single HDMI source to be connected to two displays at the same time. Supplied with an additional USB power lead should it be required, it can also be placed at the end of a long HDMI cable to regenerate the signal.

The splitter has the ability of buffering and amplifying. Each output can achieve long distance transmission of HDMI signal of more than 15 metres. When two or more products are cascaded, they can create a larger distribution and longer in length. This makes this splitter/amplifier ideal for use at conference room presentation, schools and showrooms.

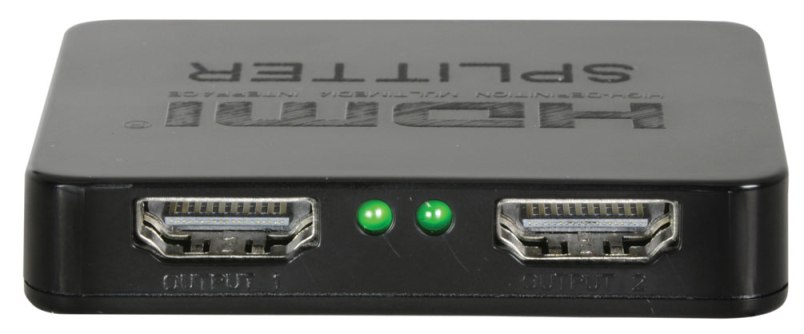

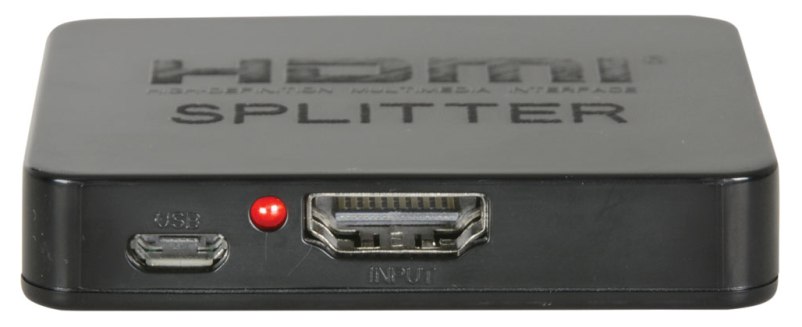

2-Port HDMI Splitter (Output)2-way HDMI Splitter (Input)
Order Code   Each
437-100 2-Port HDMI Splitter 10.99

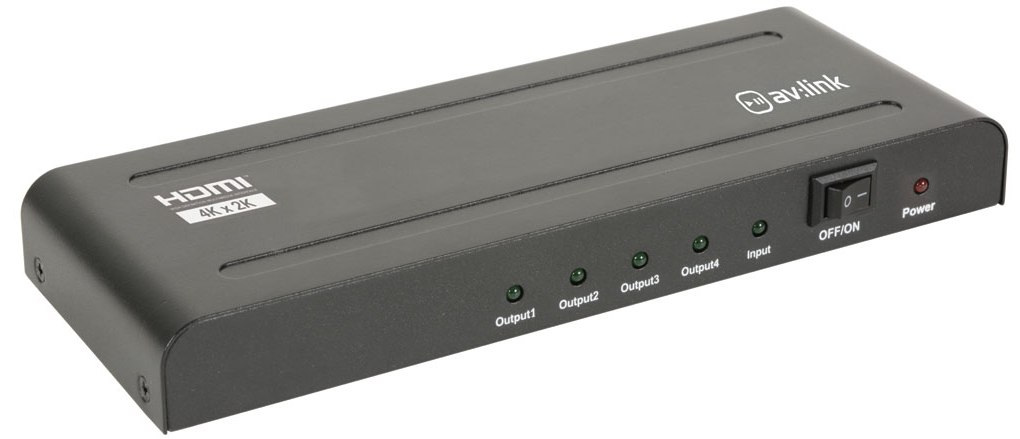

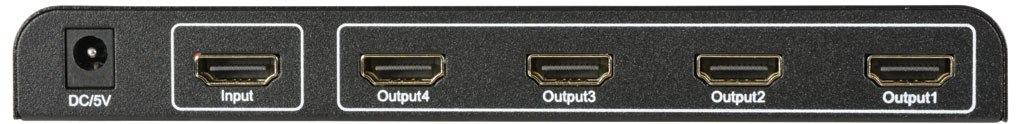

4-Way HDMI Splitter

-Way HDMI Signal Splitter
Specifications:
Model HDS-14
Input 1 x HDMI™ A Female
Outputs 4 x HDMI™ Input Female
Version 1.4b HDMI™ High speed)
Control Automatic
Video Resolution Up to 3840 x 2160 @30Hz
HDCP Support Yes
Power Supply 5Vdc (adaptor Supplied)
Dimensions 178 x 66 x 20mm
Weight 220g
Download Handbook > Download the Handbook for full specifications and applications
4K HDMI splitter to connect a single HDMI source to up to four displays at the same time. Use with HDMI cables of a combined 25m per output for HD resolution, or a combined 16m per output for 4K resolution, without signal loss.
HDMI Signal Splitter
Order Code   Each
437-105 4-Port HDMI Signal Splitter 25.58

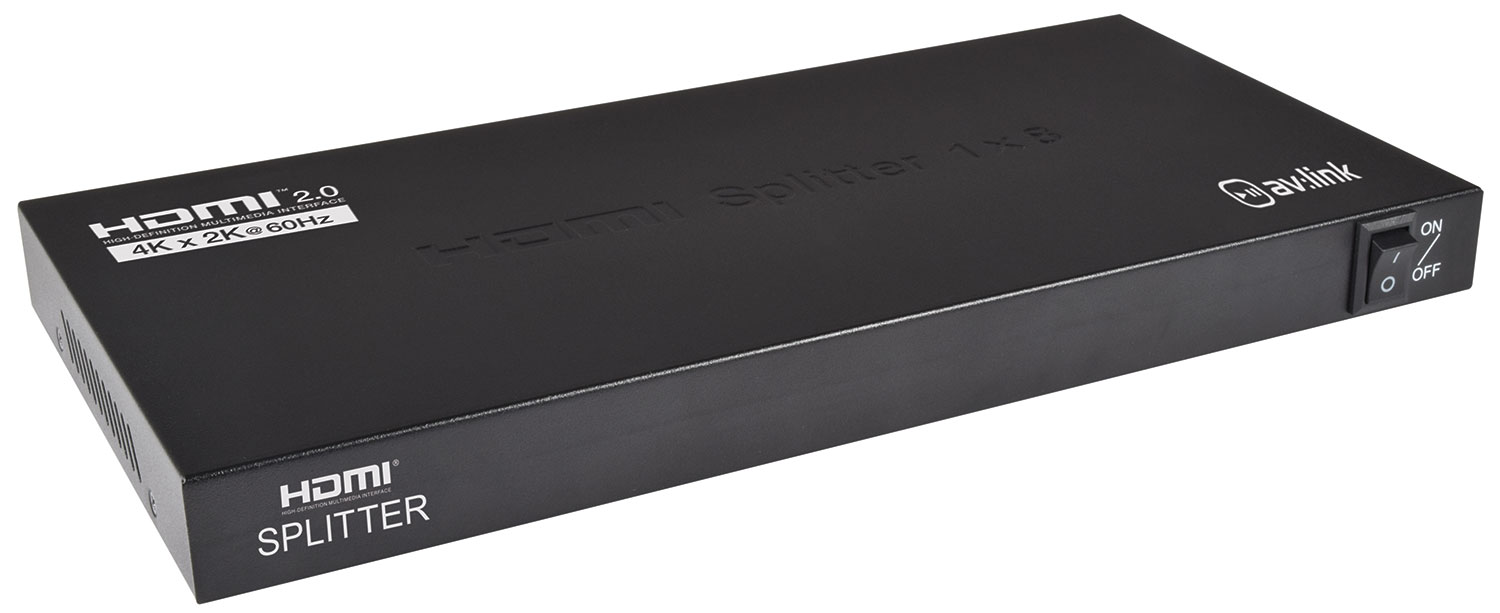

8-Way HDMI Signal Splitter

8-Port HDMI Signal Splitter
Specifications:
Model HDS18v2.0
Input 1 x HDMI™ A Female
Outputs 8 x HDMI™ Input Female
Version 2.0b HDMI™ High speed)
Control Automatic
Video Resolution Up to 3840 x 2160 @30Hz
HDCP Support Yes
Power Supply 5Vdc (adaptor Supplied)
Dimensions 276 x 136 x 24mm
Weight 660g
Download Handbook > Download the Handbook for full specifications and applications
4K HDMI splitter to connect a single HDMI source to up to four displays at the same time. Use with HDMI cables of a combined 25m per output for HD resolution, or a combined 16m per output for 4K resolution, without signal loss.

Order Code   Each
437-110 8-Port HDMI Signal Splitter 44.85

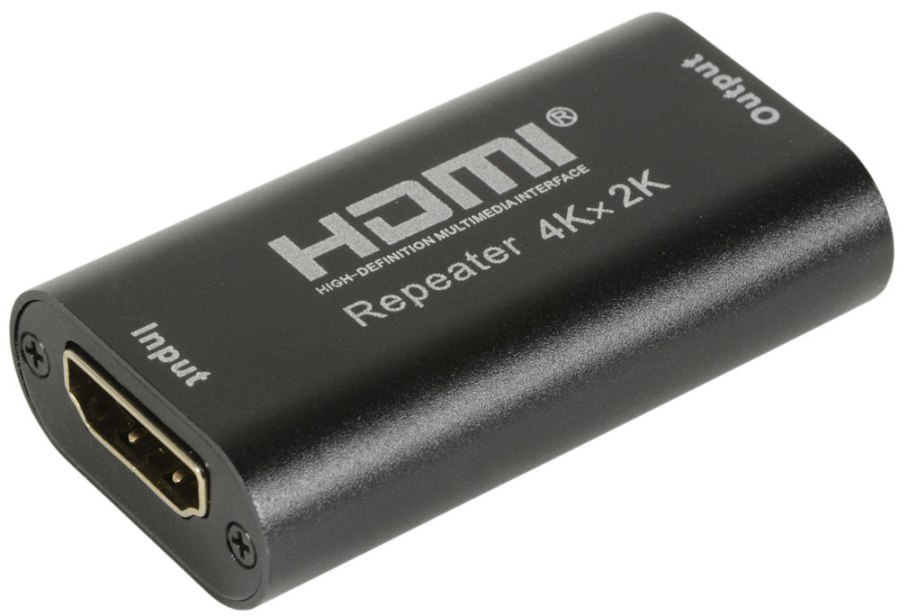

HDMI Inline Repeater
Specifications:
Model HDR4K
Input 1 x HDMI™ A Female
Output 1 x HDMI™ A Female
Supports HDMI v1.4b resolutions up to 4096 x 2160 @ 30Hz
Data Transfer Rate 3.4Gbps (single link)
Audio Format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
Video Resolution Up to 4096 x 2160P @ 30Hz
Operating Frequency up to 340MHz
Power Supply Not Required
Dimensions 28 x 13 x 51mm
Weight 21g
A compact 4K HDMI 2.0 repeater to allow you to extend HDMI cables of up to 40m. By decoding the incoming signal then recoding it to a new, standard HDMI signal, the repeater extends the transmission range, minimising degradation. 4K resolution is maintained with cables of up to 15m in total length. Standard HD resolution is maintained with cables of between 20 and 40m in total length.
Order Code   Each
437-430 HDMI Inline Repeater 11.33
