IMG Stage Line MPR-6

IMG Stage Line MPR-6 Microphone Pre-amplifier
Specifications:
Input " Jack Sockets10kΩ
Output RCA Sockets47kΩ
Frequency Response5Hz - 40kHz
Power Supply12V DC 100mA
Dimensions67x37x121mm
Weight215g
Download Handbook >Download the Handbook for full specifications and applications
IMG Stage Line MPR-6 is used for connecting one or two microphones to a line level input of an amplifier or mixer.
Order Code Each
MPR-6Microphone Pre-amplifier29.17

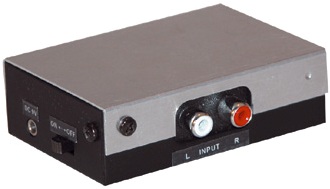

Turntable Pre-Amplifier

Turntable Pre-Amplifier

Specifications:

RCA Sockets

50kΩ Unbalanced

RCA Sockets

50kΩ Unbalanced

Frequency Response30Hz - 20kHz

Gain

34dB

Equalization

RIAA Correction

Power Supply

9VDC 100mA (External Power Supplied)

Dimensions

30 x 70 x 90mm

Weight

250g

Download Handbook >Download the Handbook for full specifications and applications
Stereo pre-amplifier for use with turntables fitted with magnetic cartridges. This handy little box will amplify the signal from the turntable, making it suitable for line level (AUX) inputs which match the line or CD input of an amplifier or mixer. Includes 9VDC mains adaptor.
Order Code Each
452-110Turntable Pre-Amplifier15.30

IMG Stage Line HPR-6

MG Stage Line HPR-6 Headphone Amplifier
Specifications:
Stereo Output " Jack Socket1500mW@4Ω, 750mW@8Ω, 300mW@32Ω
Input RCA sockets110mV -  4V
Frequency Response19Hz - 40kHz
S/N Ratio69db
THD<0.1%
Power Supply12V DC 100mA (Adapter Supplied)
Dimensions120 x 68 x 36mm
Weight220kg
Download Handbook >Download the Handbook for full specifications and applications
IMG Stage Line HPR-6 is a stereo headphone amplifier which could also be used to power a small 4 - 8Ω loudspeaker. The headphone output is on one stereo " Jack Socket and inputs are via Red/White RCA Sockets.
Order Code Each
HPR-6IMG Stage Line Headphone Amplifier26.99
