Piezo Tweeters

200-675 Piezo Horn Tweeter (Front Mounting)200-698 Piezo Horn Tweeter (Rear Mounting)
Specifications:
Frequency Response4kHz - 30kHz
Impedance1kΩ @1kHz
SPL @ 1W/1m94db
Power Rating100WRMS
Dimensions85 x 85 x 70mm
Weight55g
Two high impedance tweeters designed for use without a crossover, these highly efficient piezo tweeters can be connected to a loudspeaker by using a small series resistance of approximately 47Ω (924-047). They produce a crisp clean reproduction of high frequencies, and are suitable for high power Hi-Fi systems and budget PA and Disco applications.
Order Code Each
200-675Piezo Horn Tweeter (Front Loading)2.00
200-698Piezo Horn Tweeter (Rear Mounting)1.35

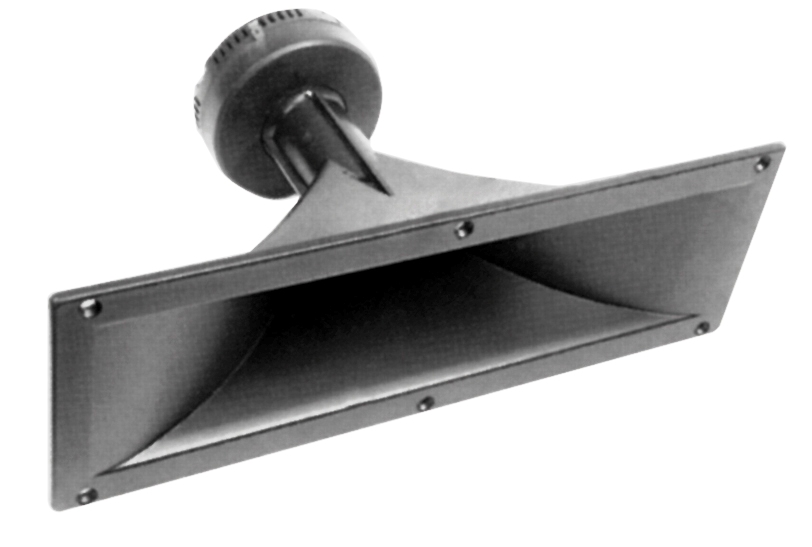

Piezo Horn Tweeter 3" x 7"
Specifications:
Frequency Response1.8kHz - 30kHz
Impedance1kΩ @1kHz
SPL @ 1W/1m96db
Power Rating100WRMS
Dimensions188 x 80 x 107mm
Weight90g
High impedance tweeter designed for use without a crossover, these highly efficient piezo tweeters can be connected to a loudspeaker by using a small series resistance of approximately 47Ω (924-047). They produce a crisp clean reproduction of high frequencies, and are suitable for budget PA and Disco applications.
Order Code Each
200-607Piezo Horn Tweeter 3" x 7"2.20



200-681 Piezo Tweeter
Specifications:
Frequency Response4kHz - 30kHz
Impedance1kΩ @1kHz
SPL @ 1W/1m94db
Power Rating100WRMS
Dimensions67 x 145 x 50mm
Weight55g
High impedance tweeter designed for use without a crossover, these highly efficient piezo tweeters can be connected to a loudspeaker by using a small series resistance of approximately 47Ω (924-047). They produce a crisp clean reproduction of high frequencies, and are suitable for budget PA and Disco applications.
Order Code Each
200-681Piezo Horn Tweeter 2" x 5"1.71

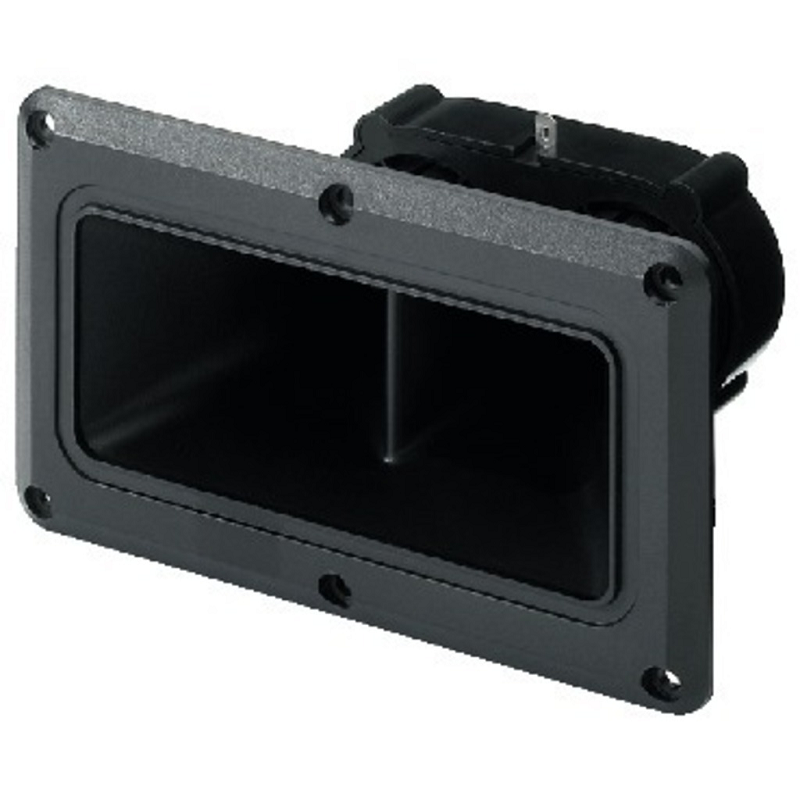

Dual Piezo Horn Tweeter
Specifications:
Frequency Response3kHz - 32kHz
Impedance1kΩ @1kHz
Power Rating100WRMS
Dimensions95 x 160 x 105mm
Weight150g
A Dual high impedance tweeter designed for use without a crossover, these highly efficient piezo tweeters can be connected to an existing speaker system by using a small series resistance approximately 47Ω (924-047). They produce a crisp clean reproduction of high frequencies, and are suitable for PA and Disco applications.
Order Code Each
200-484Dual Piezo Horn Tweeter9.90

8Ω Tweeters

200-314 Pro Series Tweeter
Specifications:
Frequency Response4kHz - 20kHz
Impedance
Voice Coil25.4mm (1")
SPL @ 1W/1m92db
Power Rating50WRMS
Magnet Weight340g
Dimensions 80 x 80mm
Weight650g
Professional tweeter (Ring Radiator) with heavy die-cast aluminium housings fitted with powerful high efficiency Kapton voice coil and Titanium diaphragm. This powerful tweeter must be used with a suitable crossover network.
Order Code Each
200-314Pro Series Tweeter (1" Voice Coil)11.55



200-318 Pro Series Tweeter
Specifications:
Frequency Response4kHz - 20kHz
Impedance
Voice Coil38mm (1")
SPL @ 1W/1m92db
Power Rating50WRMS
Magnet Weight340g
Dimensions 100 x 100mm
Weight1.28kg
Professional tweeter (Ring Radiator) with heavy die-cast aluminium housings fitted with powerful high efficiency Kapton voice coil and Titanium diaphragm. This powerful tweeter must be used with a suitable crossover network.
Order Code Each
200-318Pro Series Tweeter (1" Voice Coil)17.00



MHD-152 Mid-high range horn speaker
Specifications:
Frequency Response1.5kHz - 20kHz
Impedance
Voice Coil34.5mm
SPL @ 1W/1m105db
Power Rating75WRMS
Magnet Diameter80mm
Dimensions268 x 112 x 220mm
Weight1.2kg
MHD-152 is a classically designed aluminium die-cast horn PA tweeter, which has a near linear frequency response and excellent dynamic qualities is suitable for fitting into new cabinets or as a replacement for existing tweeters. Replacement voice coil 200-470 is also available, recommended crossover frequency 2kHz.
Order Code Each
MHD-152Mid-high range horn speaker (34.5mm Voice Coil)54.00



MHD-55 Horn Tweeter
Specifications:
Frequency Response2kHz - 15kHz
Impedance
Voice Coil25mm (1")
SPL @ 1W/1m103db
Power Rating30WRMS
Magnet Diameter80mm
Dimensions269 x 101 x 187mm
Weight1.05kg
Plastic horn PA tweeter is suitable for fitting into new cabinets or as a replacement for existing tweeters. Replacement voice coil 200-475 is also available, recommended crossover frequency 3kHz.
Order Code Each
MHD-55Mid-high range horn speaker (25mm Voice Coil)21.00
