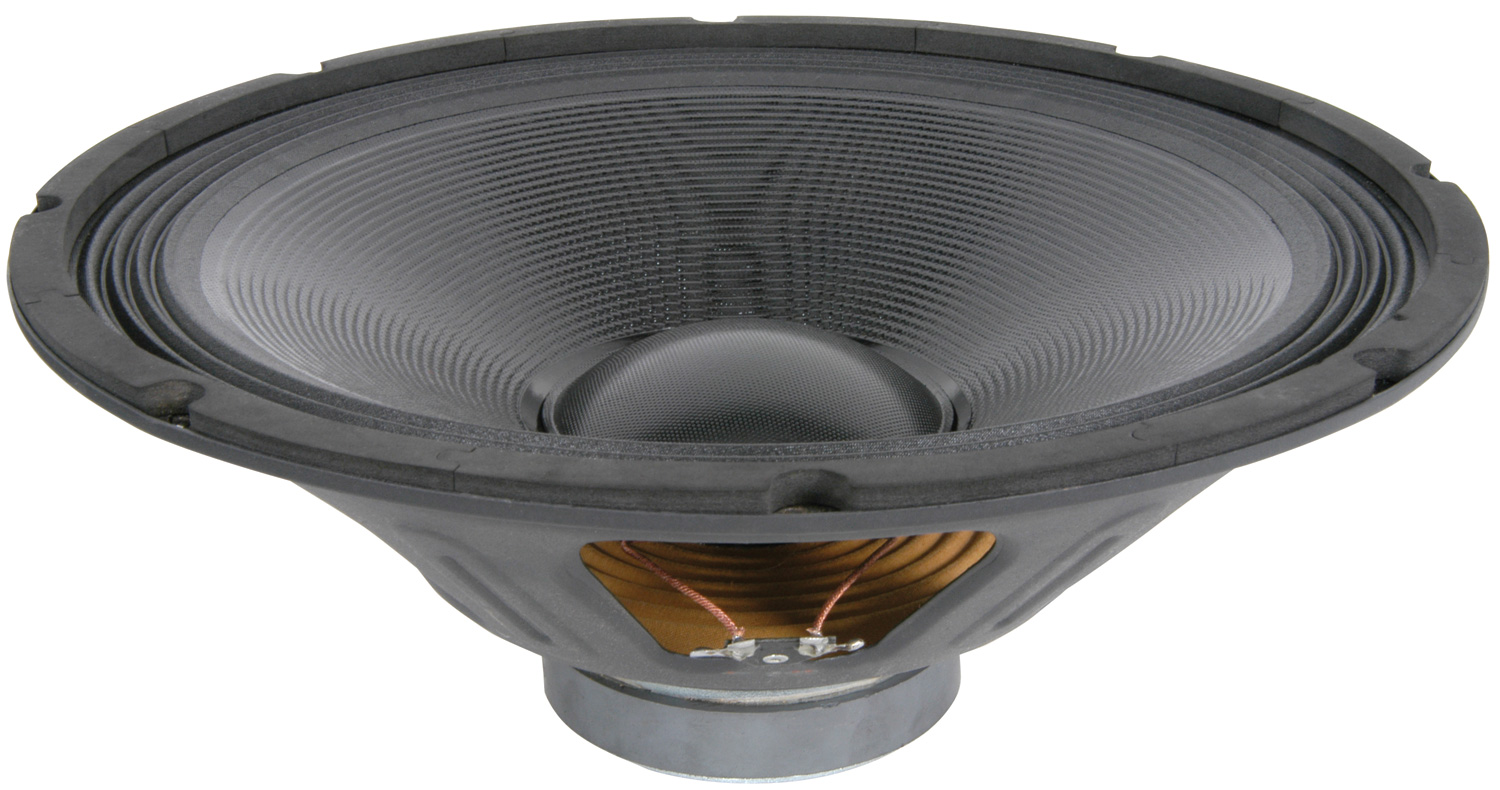

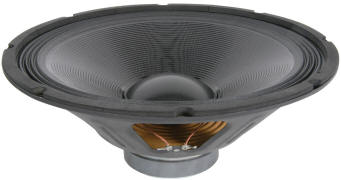

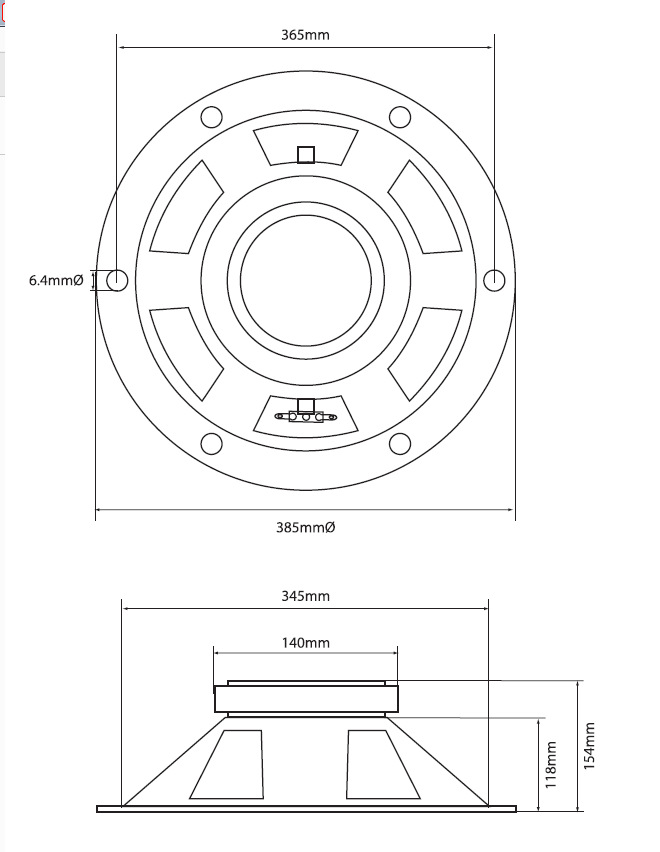

General purpose 15" 180 watt chassis speaker. Ideal for custom build cabinets or replacement for damaged drive units.
Order Code
Each
200-539
15" Full Range Loudspeaker 180 Watt RMS
21.60
Specifications:
Model Nº
902.518
Frequency Response
42Hz - 5kHz
SPL (1W/1m)
101dB
Voice Coil
62mm
Magnet Weight
50oz
Impedance
8Ω
Crossover Frequency
Hz
Connection
Spade
Power Continuous RMS
250W
Power Maximum
500W
Dimensions
390mm (15")
Weight
5.27Kg
Subject to technical modifications.

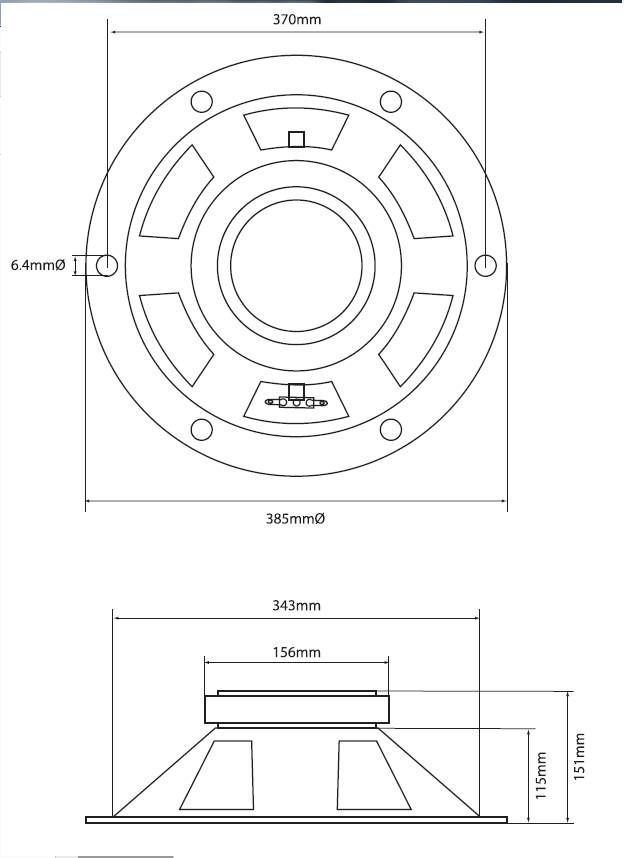

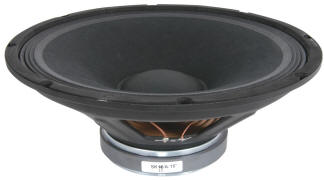

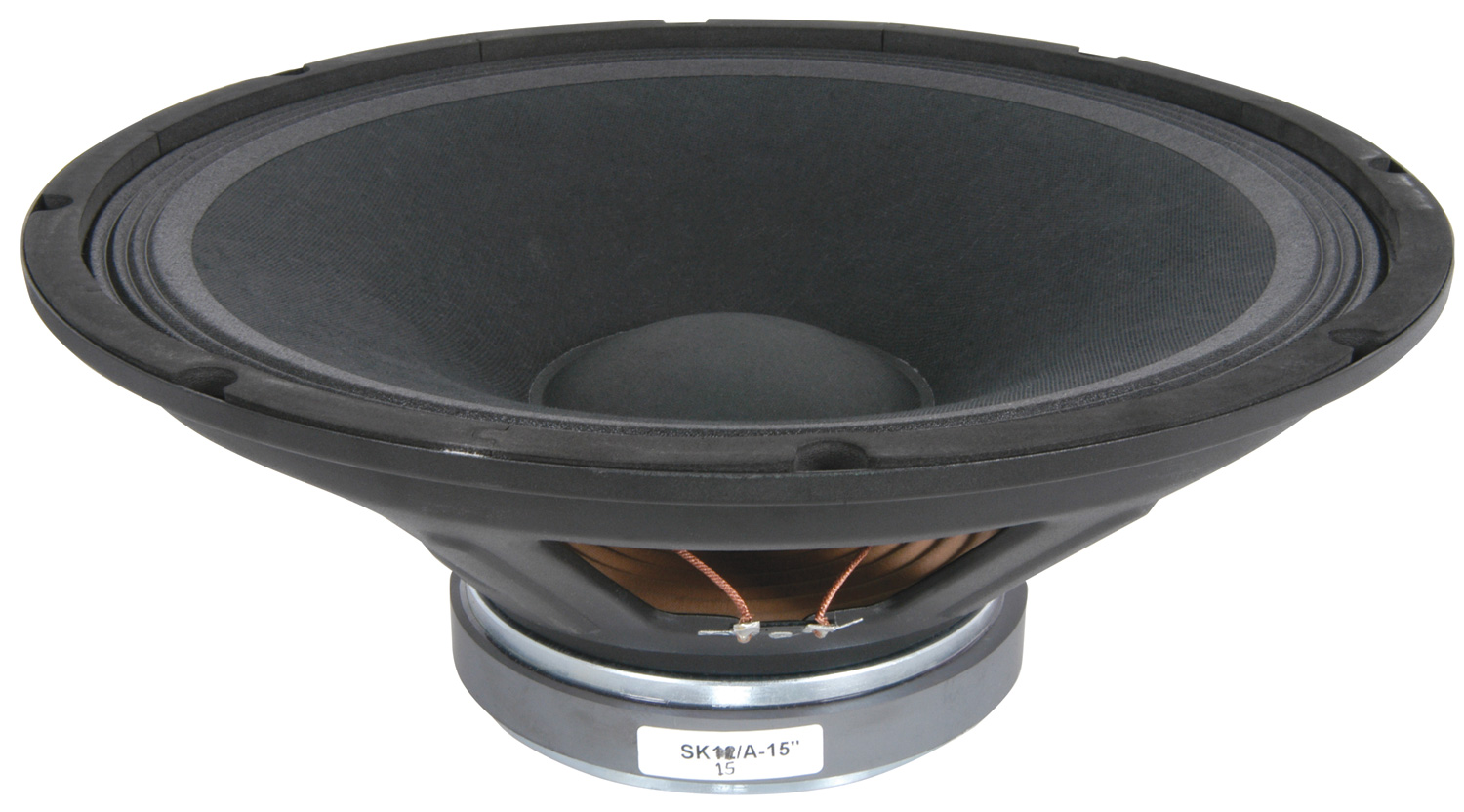

General purpose 15" 250 watt chassis speaker. Ideal for custom build cabinets or replacement for damaged drive units.
Order Code
Each
200-518
15" Full Range Loudspeaker 250 Watt RMS
33.60
Specifications:
Model Nº
D3182
Frequency Response
35Hz - 4kHz
SPL (1W/1m)
102dB
Voice Coil
mm
Magnet Weight
oz
Impedance
8Ω
Crossover Frequency
1000Hz
Connection
Solder
Power Continuous RMS
300W
Power Maximum
400W
Dimensions
385mm (15")
Weight
5.14Kg
General purpose heavy duty low frequency 15" 300 watt drive unit. Ideal for custom built cabinets or replacement for damaged speakers.
Order Code
Each
200-441
Dap Audio 15" Loudspeaker 300 Watt RMS
37.91
Specifications:
Frequency Response
42Hz - 5kHz
SPL (1W/1m)
101dB
Voice Coil
62mm (2.5")
Magnet Weight
50oz
Impedance
8Ω
Resonance Frequency
Hz
Connection
Solder Terminals
Power Continuous RMS
350W
Power Maximum
700W
Dimensions
380mm (15")
Weight
4.52Kg
Die cast aluminium chassis
Vented magnet
Gold plated binding posts
75mm voice coil
The Pro-Music series is constructed from heavy duty die cast aluminium frame and incorporate a strong 75mm voice coil, kapton coated paper cone. This special design ensures a perfect reproduction of the bass frequencies and makes this loudspeaker ideal for large sound installations.
Order Code
Each
200-512
15" Full Range Loudspeaker 8 ohm 350 Watt RMS
42.90
Specifications:
Model Nº
902.594
Frequency Response
40Hz - 5kHz
SPL (1W/1m)
103dB
Voice Coil
75mm
Magnet Weight
oz
Impedance
8Ω
Crossover Frequency
2.5kHz
Connection
Spade
Power Continuous RMS
350W
Power Maximum
700W
Dimensions
390mm (15")
Weight
5.25Kg
Subject to technical modifications.
General purpose 15" 350 watt chassis speaker with pressed steel chassis and reinforced paper cone. Ideal for custom build cabinets or replacement for damaged drive units.
Order Code
Each
200-594
15" Full Range Loudspeaker 350 Watt RMS
48.60
Specifications:
Frequency Response
30Hz - 4.2kHz
SPL (1W/1m)
94dB
Voice Coil
100mm
Magnet Weight
98oz
Impedance
8Ω
Crossover Frequency
kHz
Connection
Terminal Posts
Power Continuous RMS
400W
Power Maximum
650W
Dimensions
390mm (15")
Weight
3.0Kg
Subject to technical modifications.
A high powered, cloth edge, low frequency driver with ribbed paper cone. Product features aluminium cast chassis, large voice coil and push terminals.
Order Code
Each
200-500
15" Full Range Loudspeaker 8 ohm 400 Watt RMS
65.65
Specifications:
Model Nº
902.573
Frequency Response
40Hz - 5kHz
SPL (1W/1m)
103dB
Voice Coil
75mm
Magnet Weight
2.58kg
Impedance
4Ω
Crossover Frequency
Hz
Connection
Binding Posts
Power Continuous RMS
550W
Power Maximum
1100W
Dimensions
390mm (15")
Weight
7.25Kg
General purpose heavy duty low frequency 15" 550 watt 4 ohm drive unit. Cast aluminium basket, ideal for custom built sub cabinets or replacement for damaged speakers.
Order Code
Each
200-573
15" Subwoofer 4 Ohm 550 Watt RMS
66.15
Specifications:
Model Nº
902.572
Frequency Response
40Hz - 5kHz
SPL (1W/1m)
103dB
Voice Coil
75mm
Magnet Weight
2.58kg
Impedance
8Ω
Crossover Frequency
Hz
Connection
Binding Posts
Power Continuous RMS
550W
Power Maximum
1100W
Dimensions
390mm (15")
Weight
7.25Kg
General purpose heavy duty low frequency 15" 550 watt drive unit. Cast aluminium basket, ideal for custom built sub cabinets or replacement for damaged speakers.
