8" Replacement Loudspeakers

25W Loudspeaker 204mm
Specifications:
Model N
Impedance8Ω
Wattage25W
Frequency Range400 - 4500Hz
Magnet Weight283g
Sensitivity89dB
Dimensions85 x 205mm
Weight865g
A general purpose 25W loudspeaker with dual cone and 25mm (1") voice coil. Suitable for use with our amplifier kits.
Order Code Each
203-031204mm Loudspeaker 25 Watt RMS8.95

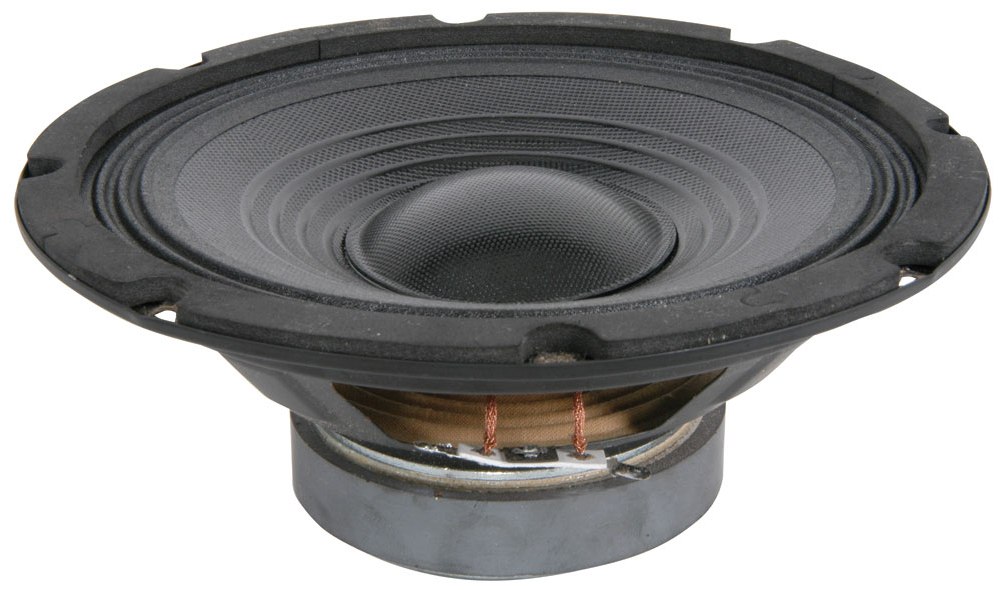

8" Full Range Speaker
Specifications:
Model N902.548
Frequency Response55Hz - 8kHz
SPL (1W/1m)91dB
Voice Coil25mm
Magnet Weight20oz
Impedance
Crossover FrequencyHz
ConnectionSpade
Power Continuous RMS75W
Power Maximum150W
Dimensions203mm (8")
Weight1.1Kg
Subject to technical modifications.
General purpose 8" 75 watt chassis speaker. Ideal for custom build cabinets or replacement for damaged drive units.
Order Code Each
200-5488" Full Range Loudspeaker 75 Watt RMS9.99

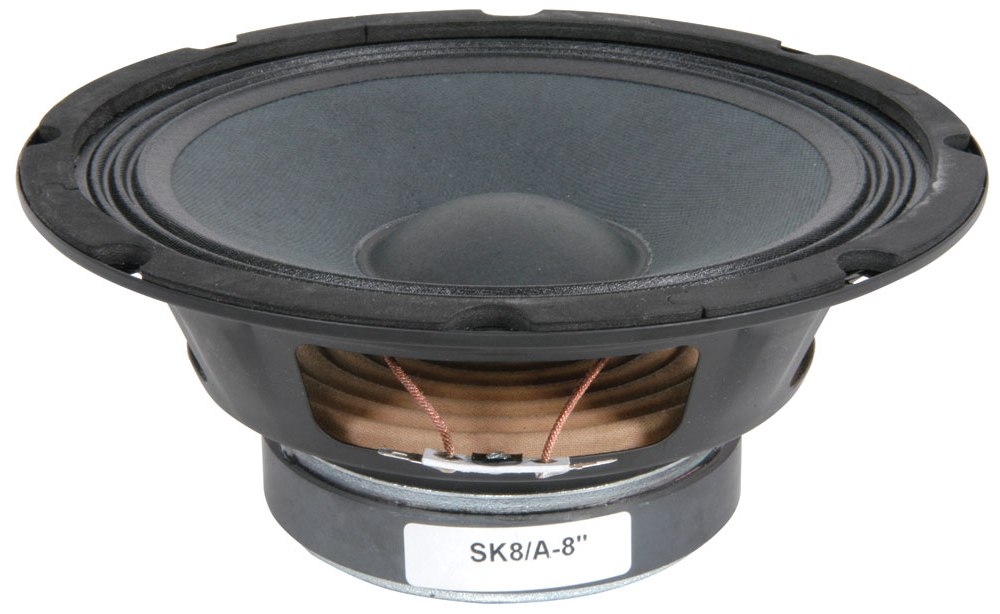

Full range speaker
Specifications:
Model N902.527
Frequency Response55Hz - 8kHz
SPL (1W/1m)93dB
Voice Coil35mm
Magnet Weight25oz
Impedance
Crossover FrequencyHz
ConnectionSolder
Power Continuous RMS100W
Power Maximum200W
Dimensions203mm (8")
Weight1.5Kg
Subject to technical modifications.
General purpose 8" 100 watt chassis speaker. Ideal for custom build cabinets or replacement for damaged drive units.
Order Code Each
200-5278" Full Range Loudspeaker 100 Watt RMS10.40



100W Chassis speaker
Specifications:
Model N902.591
Frequency Response65Hz - 8kHz
SPL (1W/1m)dB
Voice Coilmm
Magnet Weightoz
Impedance
Crossover FrequencykHz
ConnectionSpade
Power Continuous RMS100W
Power Maximum200W
Dimensions203mm (8")
Weight1.43Kg
Subject to technical modifications.
General purpose 8" 100 watt chassis speaker with pressed steel chassis and reinforced paper cone. Ideal for custom build cabinets or replacement for damaged drive units.
Order Code Each
200-5918" Full Range Loudspeaker 100 Watt RMS10.98

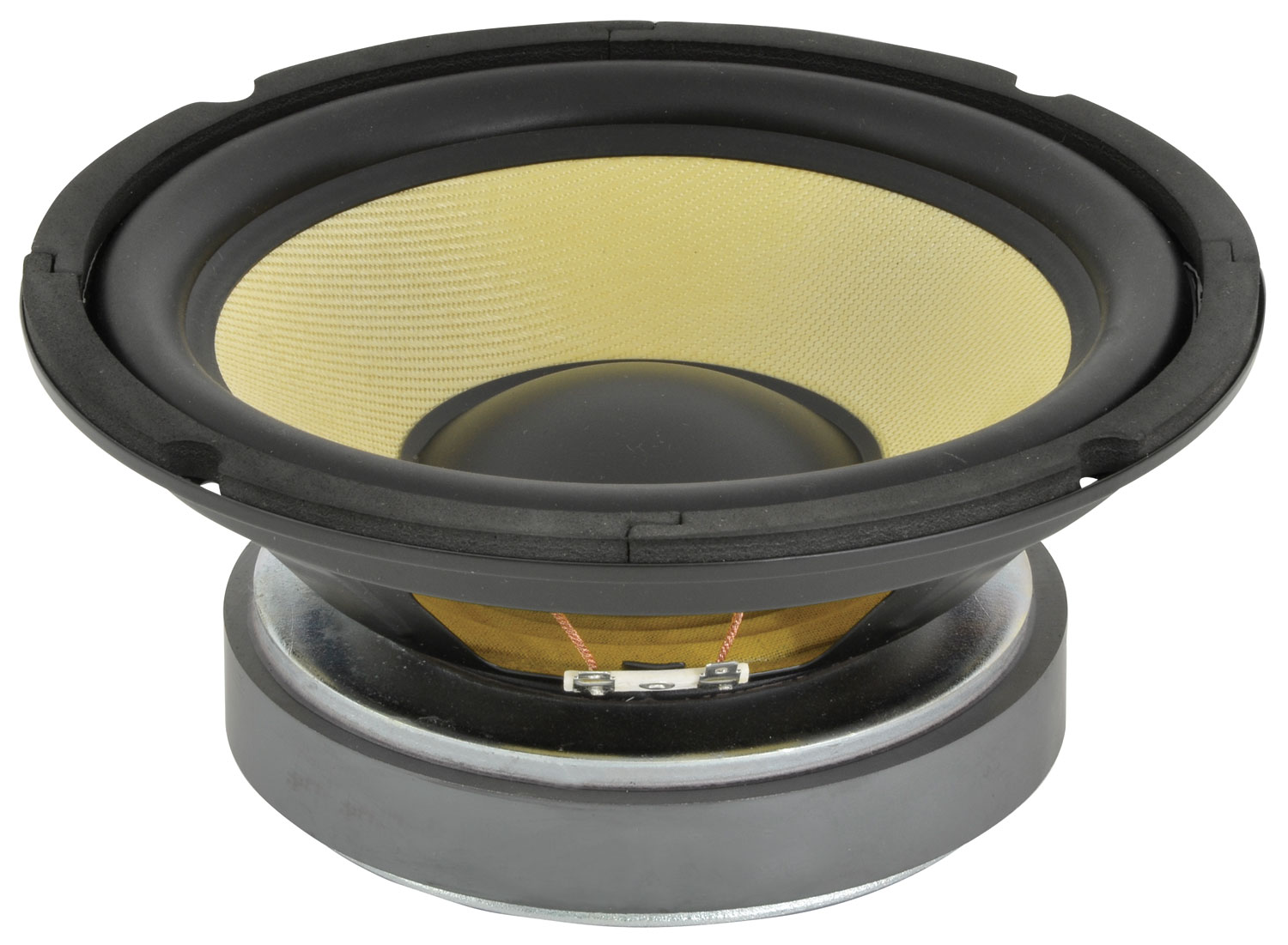

SPH-200KE Speaker
Specifications:
ModelSPH-200KE
Frequency Response3Hz - 4.5kHz
Sensitivity90dB
Voice Coil50mm (3")
Magnet Weight840g
Impedance
Resonance Frequency28Hz
ConnectionSolder
Power Continuous RMS80W
Power Maximum120W
Dimensions200mm (8")
Weight2.8Kg
  • Kevlar cone
  • Aluminium die cast basket
  • For full range applications
  • Excellent bass reproduction in the entire hi-fi range

Highest power capability in subwoofer applications, also outstanding in midrange applications due to the Kevlar cones used.

Order Code Each
SPH-200KE8" Loudspeaker 100 Watt RMS75.41
