Speaker Crossovers
Crossovers for new speaker cabinets or replacement for damaged units. 2-Way
or 3-Way types are available in various wattages, we also stock low and high
pass filters which can give increased protection against low frequencies. We
carry a good range of Transformer,
Ferrite and Air Spaced Coils to repair or manufacture your own
specification crossovers.

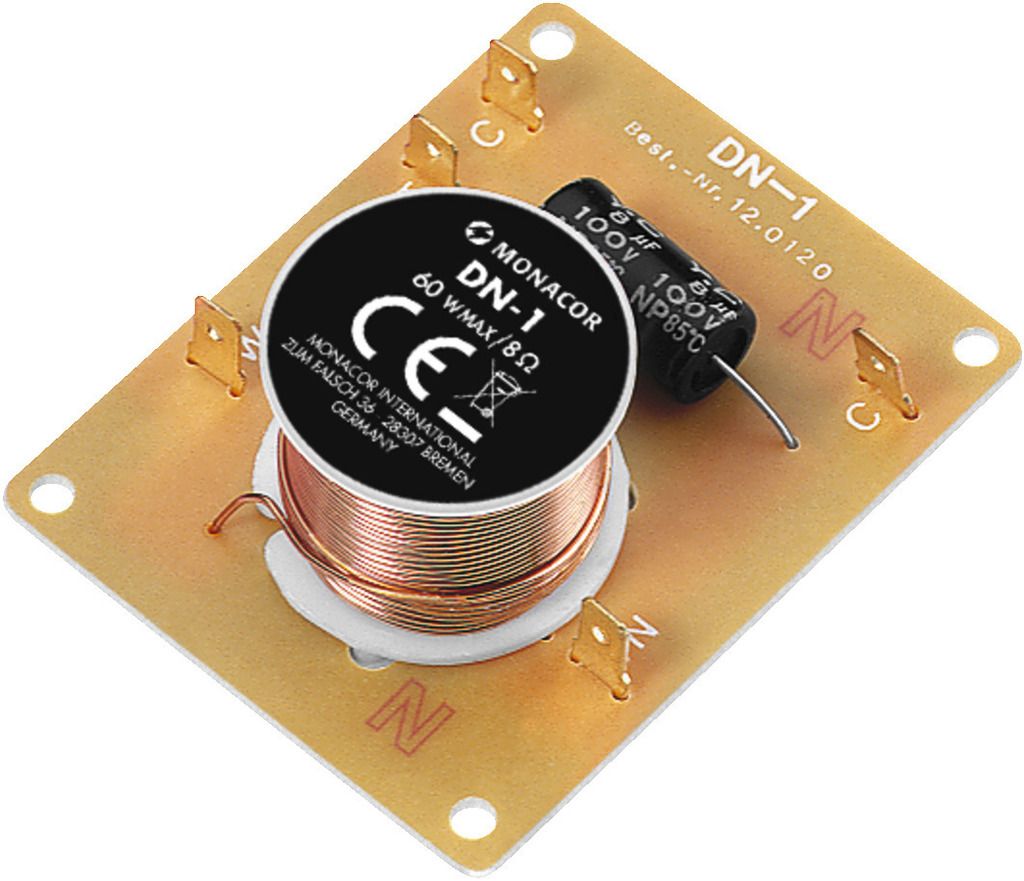

![DN-1 2-Way Passive Crossover 60W](images/454-036_small.jpg) |
Specifications: |
Model No |
DN-1 |
Output Impedance |
8Ω |
Crossover Frequency |
2.5kHz |
Slope/Octave |
6dB |
Maximum Input Power |
60WRMS |
Dimensions |
68 x 30 x 54mm |
Weight |
0.08kg |
![](../images/stm.jpg) |
|

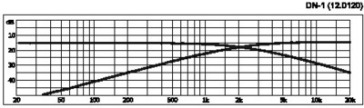

![DN-1 Crossover](images/454-036d.jpg) |
Order Code |
|
Each |
|
454-036 |
DN-1 2-Way Passive Crossover 60W |
5.33 |
|
|
|

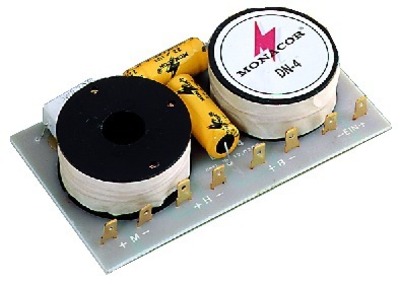

![DN-4 Crossover](images/454-034_small.jpg) |
Specifications: |
Model No |
DN-4 |
Output Impedance |
8Ω |
Crossover Frequency |
650/6.0kHz |
Slope/Octave |
12dB/6dB |
Maximum Input Power |
100WRMS |
Dimensions |
120 x 23 x 70mm |
Weight |
0.3kg |
![](../images/stm.jpg) |
|

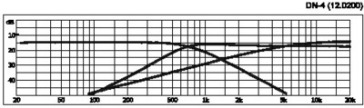

![DN-4](images/454-034d.jpg) |
Order Code |
|
Each |
|
454-034 |
DN-4 3-Way Passive Crossover 100W |
15.38 |
|
|
|
![DN-1218P 2 Way Passive Crossover](images/454-012.jpg) |
Specifications: |
Model No |
DN-1218P |
Output Impedance |
8Ω |
Crossover Frequency |
3kHz |
Slope/Octave |
6dB/18dB |
Maximum Input Power |
350WRMS |
Dimensions |
125 x 32 110mm |
Weight |
0.46kg |
![](../images/stm.jpg) |
|

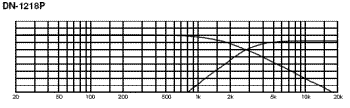

![Graph for DN-1218P](images/454-012.GIF) |
Order Code |
|
Each |
|
454-012 |
DN-1218P 2 Way Passive Crossover 350W |
40.54 |
|
|
|

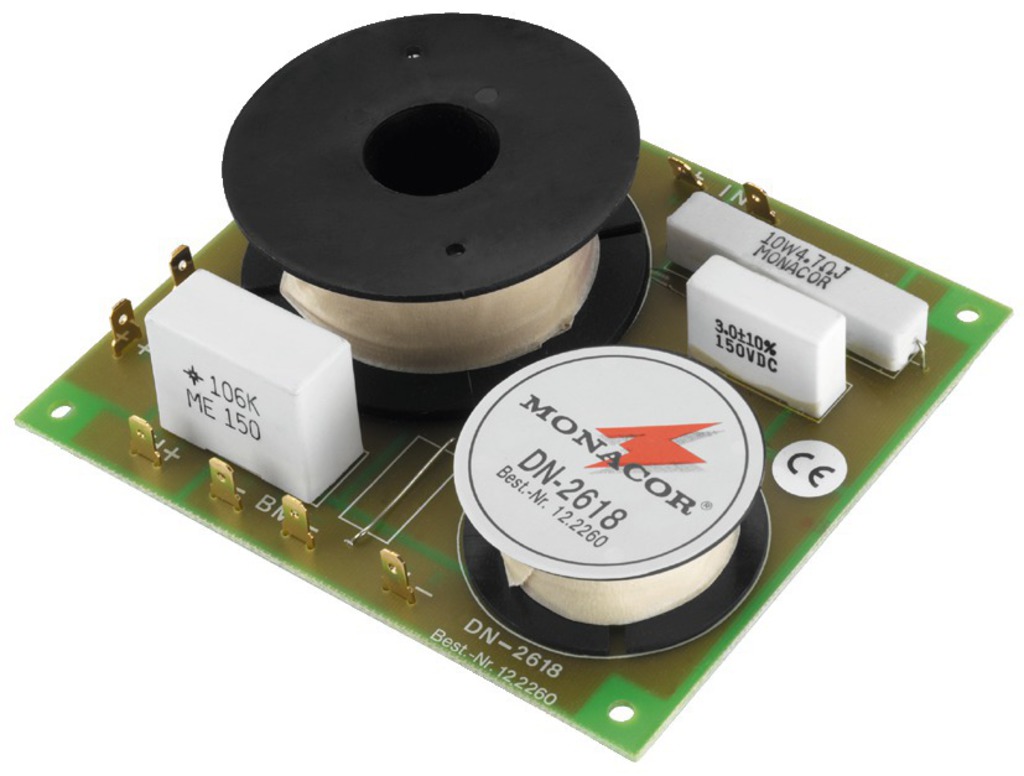

![DN-2618 Crossover](images/454-032_small.jpg) |
Specifications: |
Model No |
DN-2618 |
Output Impedance |
8Ω (bass also 4Ω) |
Crossover Frequency |
3kHz (B = 4Ω : 1.7kHz) |
Slope/Octave |
6dB/18dB |
Maximum Input Power |
350WRMS |
Dimensions |
125 x 32 x 110mm |
Weight |
0.4kg |
![](../images/stm.jpg) |
|

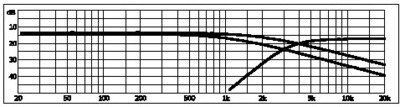

![Graph for DN-2618](images/454-032d.jpg) |
Order Code |
|
Each |
|
454-032 |
DN-2618 2 Way Passive Crossover 350W |
31.15 |
|
|
|
![DN-1218PAX 2 Way Passive Crossover](images/454-016.jpg) |
Specifications: |
Model No |
DN-1218PAX |
Output Impedance |
8Ω |
Crossover Frequency |
2.5kHz |
Slope/Octave |
12dB/18dB |
Maximum Input Power |
600WRMS |
Dimensions |
120 x 60 x 132mm |
Weight |
1.1kg |
![](../images/stm.jpg) |
|

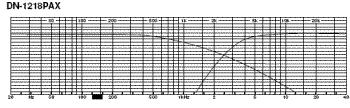

![Graph for DN-1218PAX](images/454-016.GIF) |
Order Code |
|
Each |
|
454-016 |
DN-1218PAX 2 Way Passive Crossover 600W |
41.62 |
|
|
|
![DN-20 2 Way Passive Crossover](images/454-020.jpg) |
Specifications: |
Model No |
DN-20 |
Output Impedance |
8Ω |
Crossover Frequency |
2.0kHz |
Slope/Octave |
12dB |
Maximum Input Power |
300WRMS |
Dimensions |
125 x 32 x 120mm |
Weight |
0.54kg |
![](../images/stm.jpg) |
|

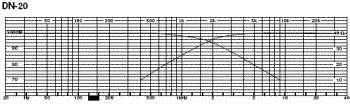

![Graph for DN-20](images/454-020.GIF) |
Order Code |
|
Each |
|
454-020 |
DN-20 2
Way Passive Crossover 300W |
25.13 |
|
|
|
![DN-2618P 2 Way Passive Crossover](images/454-028.jpg) |
Specifications: |
Model No |
DN-2618P |
Output Impedance |
8Ω |
Crossover Frequency |
3.0kHz |
Slope/Octave |
6dB/18dB |
Maximum Input Power |
350WRMS |
Dimensions |
125 x 32 x 110mm |
Weight |
0.46kg |
![](../images/stm.jpg) |
|

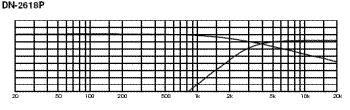

![Graph for DN-2618P](images/454-028.GIF) |
Order Code |
|
Each |
|
454-028 |
DN-2618P 2 Way Passive Crossover 350W |
22.98 |
|
|
|
![DNL-1245 2 Way Passive Crossover](images/454-046.jpg) |
Specifications: |
Model No |
DNL-1245 |
Output Impedance |
8Ω |
Crossover Frequency |
200Hz |
Slope/Octave |
12dB/6dB |
Maximum Input Power |
600WRMS |
Dimensions |
140 x 60 135mm |
Weight |
1.0kg |
![](../images/stm.jpg) |
|

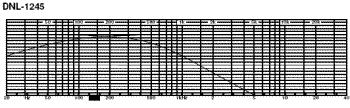

![Graph for DNL-1245](images/454-046.GIF) |
Order Code |
|
Each |
|
454-046 |
DNL-1245 2 Way Passive Crossover 600W |
39.44 |
|
|
|
![DNH-185 High Pass Filter](images/454-038.jpg) |
Specifications: |
Model No |
DNH-185 |
Output Impedance |
8Ω |
Crossover Frequency |
5.5kHz |
Slope/Octave |
18dB |
Maximum Input Power |
250WRMS |
Dimensions |
78 x 23 x 90mm |
Weight |
0.16kg |
![](../images/stm.jpg) |
|

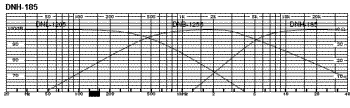

![Graph for DNH-185](images/454-038.GIF) |
Order Code |
|
Each |
|
454-038 |
DNH-185
High Pass Filter 250W |
10.17 |
|
|
|

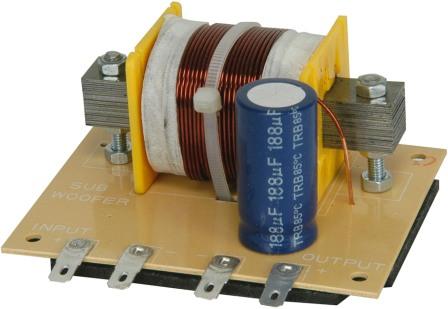

![Low Pass Filter](images/452-042_small.jpg) |
Specifications: |
Model No |
|
Output Impedance |
4Ω |
Crossover Frequency |
120Hz |
Slope/Octave |
12dB |
Maximum Input Power |
600WRMS |
Dimensions |
90 x 70 41mm |
Weight |
315g |
![](../images/stm.jpg) |
|
Passive 4 ohms subwoofer filter for use in PA loudspeaker systems. |
Order Code |
|
Each |
|
454-042 |
Low Pass Filter 600W |
10.40 |
|
|
|
