8Ω Dynamic Horns

30 watt Ring Radiator
Specifications:
Frequency Response 5kHz - 18kHz
Impedance 8Ω
Voice Coil 25mm (1")
SPL @ 1W/1m 107db
Power Rating 30WRMS
Magnet Weight 28oz
Dimensions 103 x 103 x70mm
Cut Out mm
Weight 1.37kg
A reference standard high frequency transducer designed to provide the highest quality performance. Diffusion is by exponential horn and bullet.
Order Code   Each
200-312 Diffraction Ring Radiator 103 x 103 x 70mm 8R 30 Watt RMS 37.00

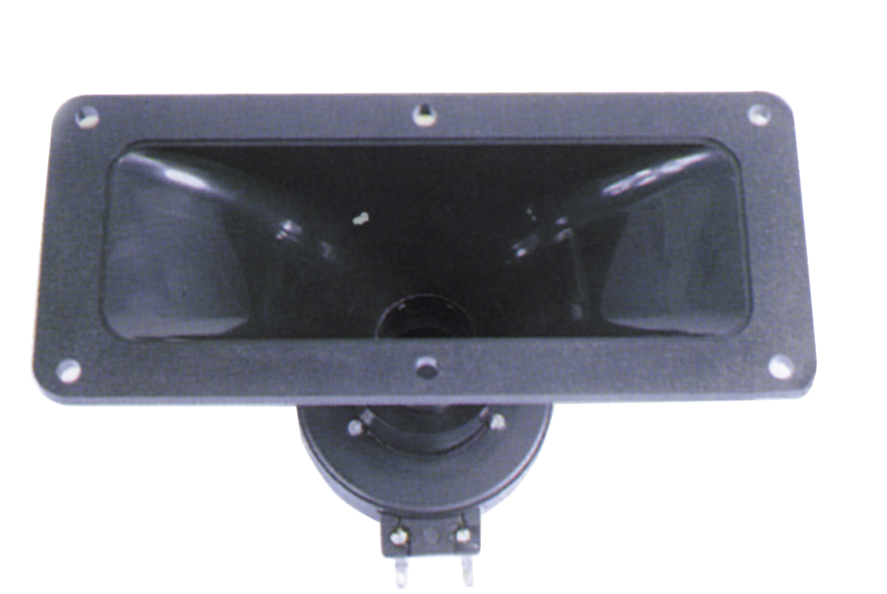

Plastic Horn
Specifications:
Frequency Response 1kHz - 18kHz
Impedance 8Ω
Voice Coil 25mm (1")
SPL @ 1W/1m 92db
Power Rating 25WRMS
Magnet Weight 652g
Dimensions 185 x 80 x 140mm
Cut Out 160 x 55mm
Weight 0.614kg
Plastic horn PA tweeter with high power handling capabilities is finished in black
Order Code   Each
200-382 Dynamic Horn 185 x 80 x 140mm 25 Watt RMS 8R 7.00



Dynamic Horn Tweeter
Specifications:
Frequency Response 1kHz - 16kHz
Impedance 8Ω
Voice Coil 25mm (1")
SPL @ 1W/1m 104db
Power Rating 60WRMS
Magnet Weight 225g
Dimensions 187 x 106 x 269mm
Cut Out mm
Weight 0.77kg
High quality plastic horn with wide dispersion, finished in black.
Order Code   Each
200-388 Dynamic Horn 187 x 106 x 269mm 60W RMS 8R 13.71

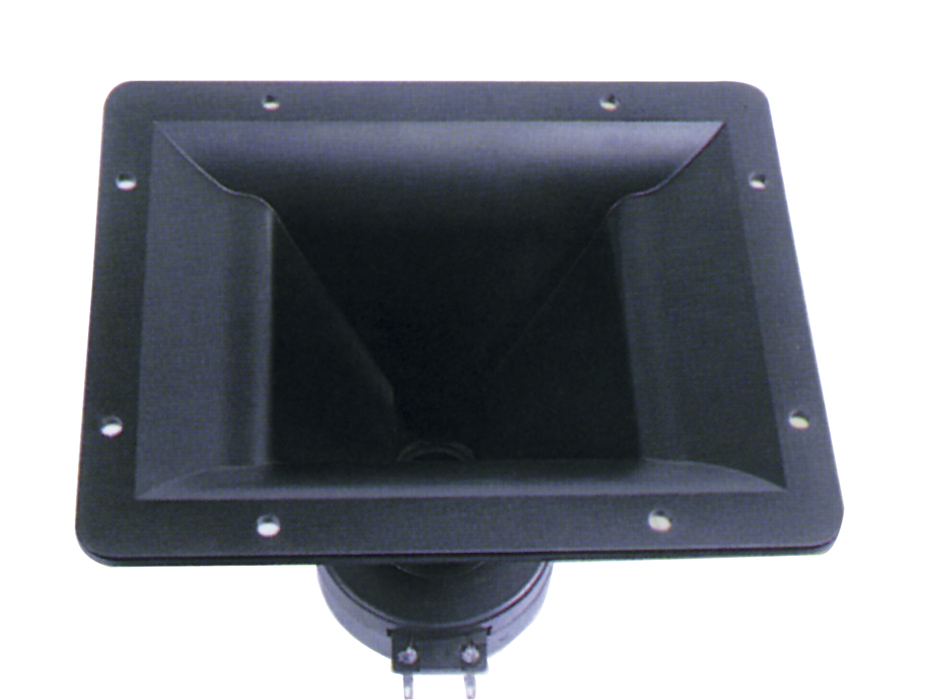

Rectangular 8 Ohm Horn
Specifications:
Frequency Response 1kHz - 18kHz
Impedance 8Ω
Voice Coil 25mm (1")
SPL @ 1W/1m 93db
Power Rating 30WRMS
Magnet Weight 28g
Dimensions 195 x 155 x 150
Cut Out mm
Weight 0.83kg
Plastic rectangular horn with high power handling capabilities is finished in black.
Order Code   Each
200-398 Dynamic Horn 195 x 155 x 150 30 Watt RMS 8R 8.80

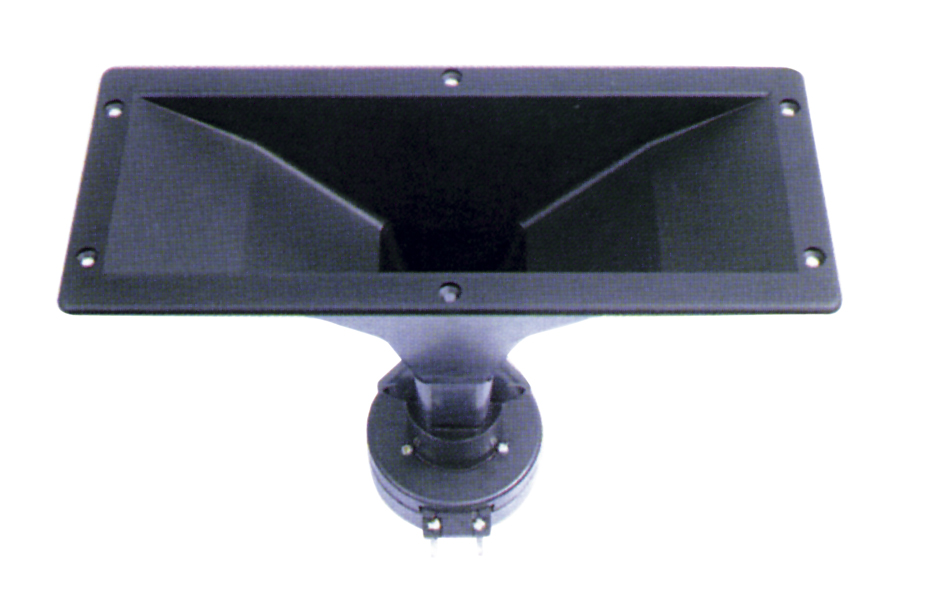

30 Watt Dynamic Horn
Specifications:
Frequency Response 1kHz - 18kHz
Impedance 8Ω
Voice Coil 25mm (1")
SPL @ 1W/1m 103db
Power Rating 30WRMS
Magnet Weight 28g
Dimensions 265 x 110 x 200mm
Cut Out mm
Weight 0.77kg
Large rectangular Plastic horn with high power handling capabilities
Order Code   Each
200-390 Dynamic Horn 265 x 110 x 200mm 30 Watt RMS 8R 10.40

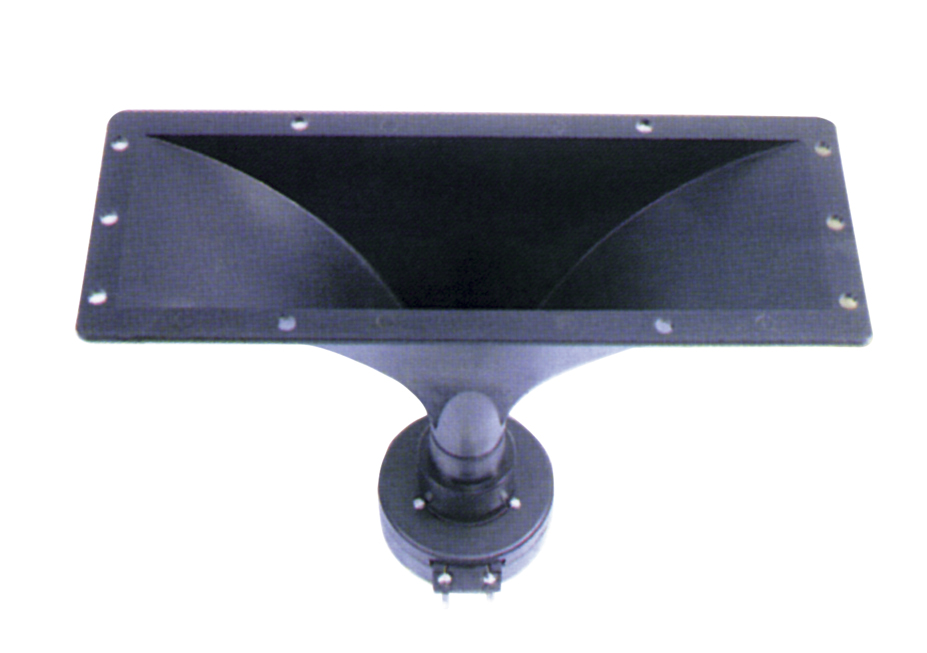

8 Ohm Dynamic Horn
Specifications:
Frequency Response 1kHz - 18kHz
Impedance 8Ω
Voice Coil 25mm (1")
SPL @ 1W/1m 93db
Power Rating 30WRMS
Magnet Diameter 80mm
Dimensions 270 x 100 x 210mm
Cut Out mm
Weight 0.725kg
Large rectangular Plastic horn with high power handling capabilities
Order Code   Each
200-396 Dynamic Horn 270 x 100 x 210mm 30 Watt 8R 8.02

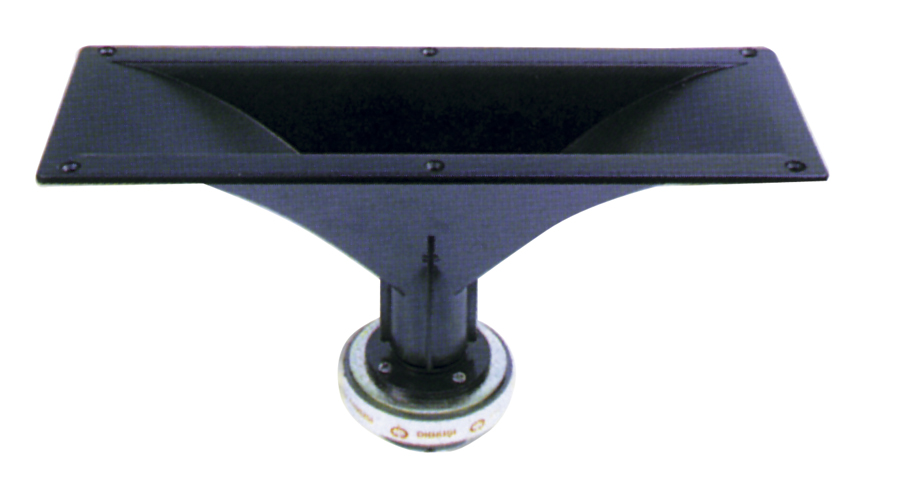

8 Ohm 30 watt Horn
Specifications:
Frequency Response 800Hz - 20kHz
Impedance 8Ω
Voice Coil 25mm (1")
SPL @ 1W/1m 94db
Power Rating 30WRMS
Magnet Weight 57g
Dimensions 385 x 130 x 200mm
Cut Out mm
Weight 1.34kg
Large rectangular Plastic horn with high power handling capabilities.
Order Code   Each
200-394 Dynamic Horn Flare 385 x 130 x 200mm 30 Watt RMS 14.58
