Jack - Jack Leads

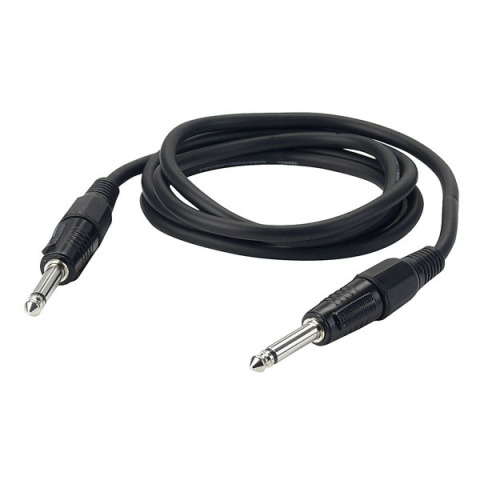

¼" Mono Jack Plug - ¼" Mono Jack Plug Lead

Specifications:
Conductor Size	20/0.12mm
Construction	Lap Screen
Cable Diameter	6.0mmØ

DAP Audio fully screened ¼" Jack leads suitable for interconnecting between mixers, amplifiers, wireless microphones etc. These leads are most suitable for permanent installations or for internal connections with fixed, rack mounted equipment.

Order Code		Each
560-315	¼" Mono Jack Plug - ¼" Mono Jack Plug 0.5m	4.05
FL-05-150	¼" Mono Jack Plug - ¼" Mono Jack Plug 1.5m	5.87
FL-05-3	¼" Mono Jack Plug - ¼" Mono Jack Plug 3.0m	6.97
FL-05-6	¼" Mono Jack Plug - ¼" Mono Jack Plug 6.0m	9.07
FL-05-10	¼" Mono Jack Plug - ¼" Mono Jack Plug 10.0m	11.83
FL-05-15	¼" Mono Jack Plug - ¼" Mono Jack Plug 15.0m	19.06

Specifications:
Conductor Size	20 x 0.12mm
Construction	Lap Screen
Capacitance	160pF/metre
Cable Diameter	Dark Blue 2 x 4mmØ

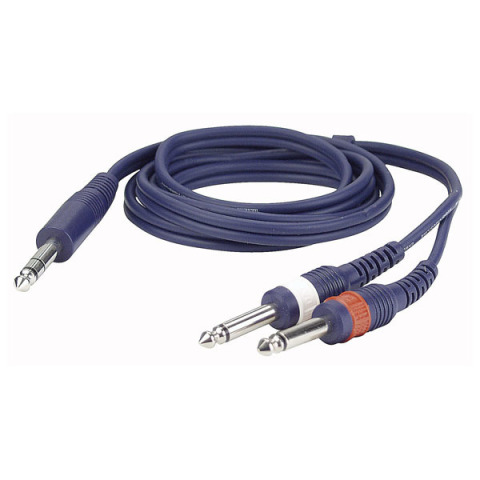

DAP Audio high quality ¼" Stereo Jack Plug to 2 x ¼" Mono Jack Plugs screened lead, suitable for use as mixer insert lead. This lead uses heavy duty moulded connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-34-150	Dap Audio 2 x ¼" Mono Jack Plugs - ¼" Stereo Jack Plug 1.5m	4.81
FL-34-3	Dap Audio 2 x ¼" Mono Jack Plugs - ¼" Stereo Jack Plug 3.0m	6.03

Dap Audio ¼" Stereo Jack Plug - 2 x RCA Plugs

Specifications:
Conductor Size	20 x 0.12mm
Construction	Lap Screen
Capacitance	160pF/metre
Cable Diameter	Dark Blue 2 x 4mmØ

Dap Audio high quality ¼" Stereo Jack Plug to 2 x RCA Plugs screened lead, suitable for use as mixer insert lead. This lead uses heavy duty moulded connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-35-150	Dap Audio ¼" Stereo Jack Plug - 2 x RCA Plugs 1.5m	4.64

Specifications:
Conductor Size	20 x 0.12mm
Construction	Lap Screen
Capacitance	160pF/metre
Cable Diameter	Dark Blue 2 x 4mmØ

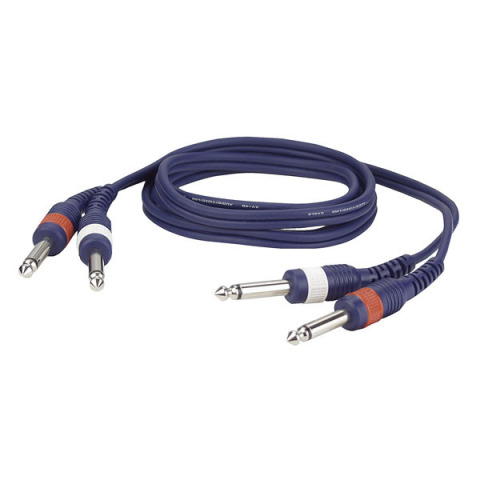

DAP Audio high quality 2 x ¼" Mono Jack Plugs to 2 x ¼" Mono Jack Plugs screened lead. This lead uses heavy duty moulded connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-22-150	Dap Audio 2 x ¼" Mono Jack Plug - 2 x ¼" Mono Jack Plugs 1.5m	5.11
FL-22-3	Dap Audio 2 x ¼" Mono Jack Plug - 2 x ¼" Mono Jack Plugs 3.0m	6.48

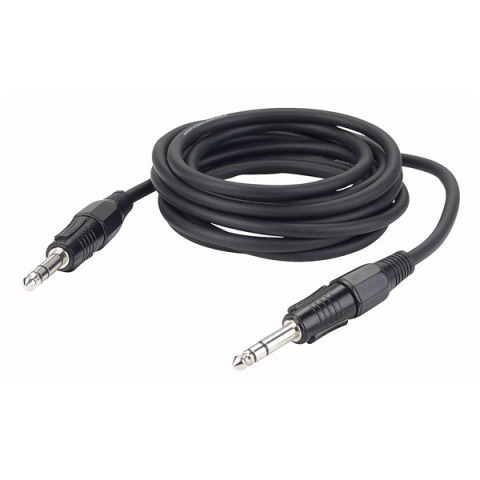

¼" Stereo Jack Plug - ¼" Stereo Jack Plug Lead

Specifications:
Conductor Size	20/0.12mm
Construction	Lap Screen
Cable Diameter	6.0mmØ

DAP Audio fully screened ¼" TRS (Tip, Ring and Sleeve) Jack lead suitable for interconnecting balanced in/outputs between mixers, amplifiers, wireless microphones etc.

Order Code		Each
FL-07-150	¼" Stereo Jack Plug - ¼" Stereo Jack Plug 1.5m	6.34
FL-07-3	¼" Stereo Jack Plug - ¼" Stereo Jack Plug 3.0m	7.65
FL-07-6	¼" Stereo Jack Plug - ¼" Stereo Jack Plug 6.0m	9.99
FL-07-10	¼" Stereo Jack Plug - ¼" Stereo Jack Plug 10.0m	13.18

Jack - XLR

Specifications:
Conductor Size	7 x 0.20mm
Construction	Lap/Plastic Foil
Capacitance	65pF/metre
Cable Diameter	Black 6mmØ

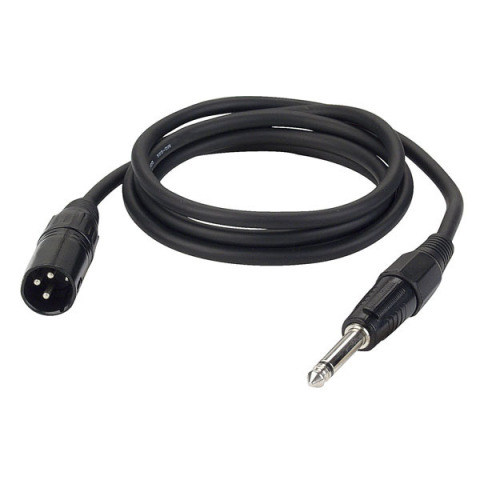

Dap Audio high quality ¼" Mono Jack Plug to male XLR screened lead, wired for un-balanced audio applications. This lead uses heavy duty professional connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-13-150	Dap Audio ¼" Mono Jack Plug - XLR Plug 1.5m	7.25

Specifications:
Conductor Size	7 x 0.20mm
Construction	Lap/Plastic Foil
Capacitance	65pF/metre
Cable Diameter	Black 6mmØ

DAP Audio high quality ¼" Mono Jack Plug to female XLR screened lead, wired for un-balanced audio applications. This lead uses heavy duty professional connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-02-150	Dap Audio ¼" Mono Jack Plug - XLR Socket 1.5m	6.34
FL-02-3	Dap Audio ¼" Mono Jack Plug - XLR Socket 3.0m	7.56
FL-02-6	Dap Audio ¼" Mono Jack Plug - XLR Socket 6.0m	10.15

Specifications:
Conductor Size	7 x 0.20mm
Construction	Lap/Plastic Foil
Capacitance	65pF/metre
Cable Diameter	Black 6mmØ

S

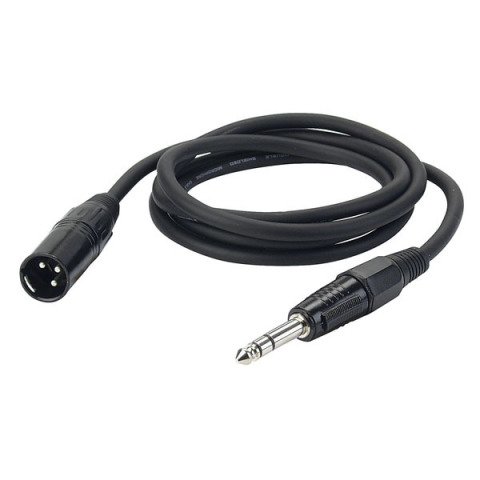

Dap Audio high quality ¼" TRS Jack Plug to male XLR screened lead, wired for balanced audio applications. This lead uses heavy duty professional connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-04-150	Dap Audio ¼" Stereo Jack Plug - XLR Plug 1.5m	6.64
FL-04-3	Dap Audio ¼" Stereo Jack Plug - XLR Plug 3.0m	9.86
560-303	¼" Stereo Jack Plug - XLR Plug 6.0m	8.50
560-305	¼" Stereo Jack Plug - XLR Plug 12.0m	15.93

Specifications:
Conductor Size	7 x 0.20mm
Construction	Lap/Plastic Foil
Capacitance	65pF/metre
Cable Diameter	Black 6mmØ

DAP Audio high quality ¼" TRS Jack Plug to female XLR screened lead, wired for balanced audio applications. This lead uses heavy duty professional connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-03-150	Dap Audio ¼" Stereo Jack Plug- XLR Socket 1.5m	6.64
FL-03-3	Dap Audio ¼" Stereo Jack Plug- XLR Socket 3.0m	8.15

Specifications:
Conductor Size	20 x 0.12mm
Construction	Lap Screen
Capacitance	160pF/metre
Cable Diameter	Dark Blue 2 x 4mmØ

DAP Audio high quality 2 x ¼" Mono Jack Plugs to 2 x female XLR screened lead, wired for un-balanced audio applications. This lead uses heavy duty professional connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-43-150	Dap Audio 2 x ¼" Mono Jack Plugs - 2 x XLR Sockets 1.5m	6.28
FL-43-3	Dap Audio 2 x ¼" Mono Jack Plugs - 2 x XLR Sockets 3.0m	7.56

Specifications:
Conductor Size	20 x 0.12mm
Construction	Lap Screen
Capacitance	160pF/metre
Cable Diameter	Dark Blue 2 x 4mmØ

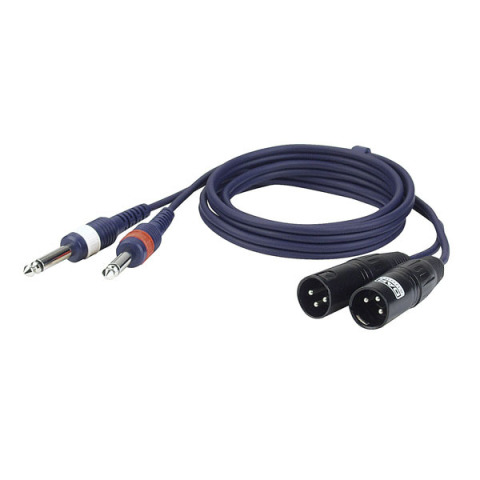

DAP Audio high quality 2 x ¼" Mono Jack Plugs to 2 x male XLR screened lead, wired for un-balanced audio applications. This lead uses heavy duty professional connectors and high quality low noise oxygen free cable.

Order Code		Each
FL-44-150	Dap Audio 2 x ¼" Mono Jack Plugs - 2 x XLR Plugs 1.5m	6.48
FL-44-3	Dap Audio 2 x ¼" Mono Jack Plugs - 2 x XLR Plugs 3.0m	14.33
