Desk Console Cases

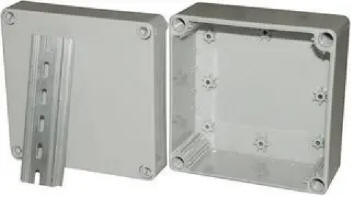

ABS Enclosure with DIN rail, Grey Lid ABS Box with DIN Rail
Specifications:
Material ABS and Aluminium
DN12E 125 x 125 x 75mm
DN13E 125 x 125 x 100mm
DIN14E 175 x 125 x 75mm
DIN15E 175 x 125 x 100mm
DIN16E 175 x 125 x 120mm
DIN17E 175 x 125 x 150mm
Grey RAL7035 IP66, IK08 general purpose ABS enclosure with internal mounting stand-offs. Supplied complete with 35mm DIN rail section for internal component mounting. The ABS lids are secured by captive plastic screws once inserted into the lid.
Order Code   Each
400-410 DN12E  IP66 ABS Enclosure with DIN rail, Grey Lid 9.41
400-411 DN13E  IP66 ABS Enclosure with DIN rail, Grey Lid 10.28
400-412 DN14E  IP66 ABS Enclosure with DIN rail, Grey Lid 11.53
400-413 DN15E  IP66 ABS Enclosure with DIN rail, Grey Lid 12.70
400-414 DN16E  IP66 ABS Enclosure with DIN rail, Grey Lid 14.15
400-415 DN17E  IP66 ABS Enclosure with DIN rail, Grey Lid 15.49

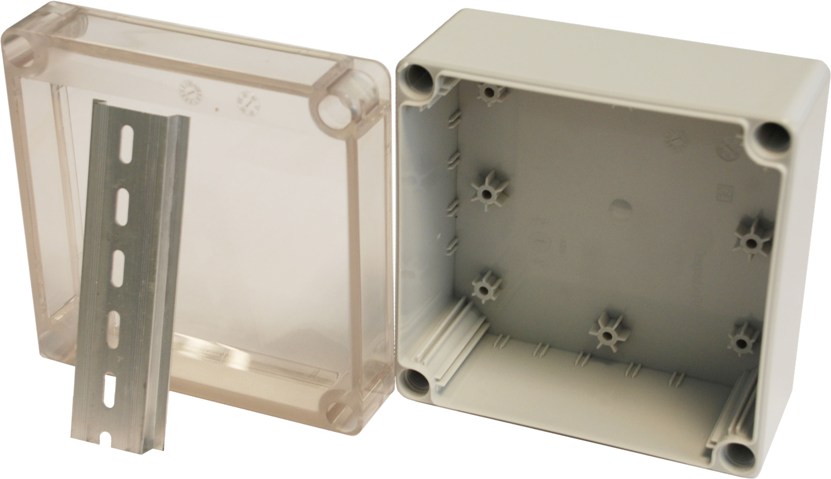

ABS Enclosure with DIN rail, Clear Lid ABS Box with DIN Rail
Specifications:
Material ABS and Aluminium
DN12T 125 x 125 x 75mm
DN13T 125 x 125 x 100mm
DIN14T 175 x 125 x 75mm
DIN15T 175 x 125 x 100mm
DIN16T 175 x 125 x 120mm
DIN17T 175 x 125 x 150mm
Grey RAL7035 IP66, IK08 general purpose ABS enclosure with internal mounting stand-offs. Supplied complete with 35mm DIN rail section for internal component mounting. The clear polycarbonate lids are secured by captive plastic screws once inserted into the lid.
Order Code   Each
400-420 DN12T  IP66 ABS Enclosure with DIN rail, Clear Lid 11.03
400-421 DN13T  IP66 ABS Enclosure with DIN rail, Clear Lid 12.11
400-422 DN14T  IP66 ABS Enclosure with DIN rail, Clear Lid 13.57
400-423 DN15T  IP66 ABS Enclosure with DIN rail, Clear Lid 14.98
400-424 DN16T  IP66 ABS Enclosure with DIN rail, Clear Lid 16.65
400-425 DN17T  IP66 ABS Enclosure with DIN rail, Clear Lid 18.55



  Call in By Phone Order by Post Order Online





sales@esr.co.uk

Tel: 0191 251 4363




• Orders accepted subject to our Terms and Conditions •

All Prices are in Pounds Sterling and Exclude VAT
