Instrument Cases

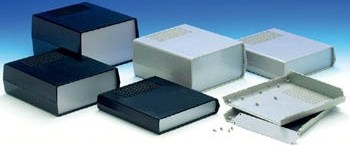

Two Part Grey Enclosure
Specifications:
Material High Impact Polystyrene
TKAUS12G 198 x 178 x 54mm
TKAUS22G 198 x 178 x 72mm
TKAUS23G 198 x 178 x 90mm
TKAUS33G 198 x 178 x 108mm
This range of enclosure is ideally suited to a variety of electronic desktop applications. The enclosures have a vented cover and base, front and rear panels in 1mm-thick aluminium. The top and bottom have integral PCB guides and mounting studs. Finished with a light grey matt surface, eight screws close the housing.
Order Code   Each
401-812 TKAUS12G Two Part Grey Instrument Case 15.21
401-814 TKAUS22G Two Part Grey Instrument Case 19.20
401-816 TKAUS23G Two Part Grey Instrument Case 19.20
401-818 TKAUS33G Two Part Grey Instrument Case 20.70

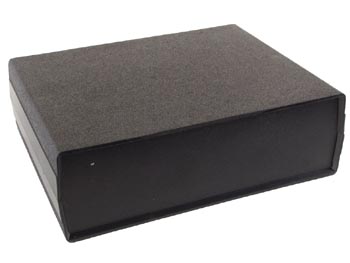

Specifications:
Material ABS Plastic
Colour Black
Dimensions 200 x 160 x 65mm External

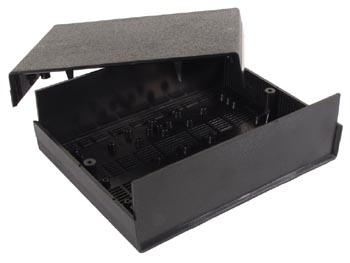

Enclosure manufactured from ABS, the box has vertical grooves on the inside to allow for the securing of PCB's. Can be easily drilled or punched, lids are retained by self tapping screws.
Order Code   Each
400-597 WCAH2505 Black ABS Box 17.86

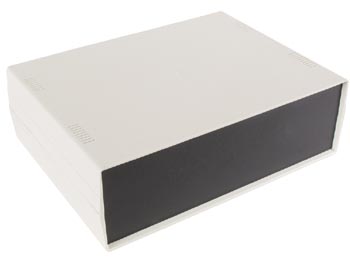

Specifications:
Material ABS Plastic
Colour Grey
Dimensions 250 x 190 x 80mm External

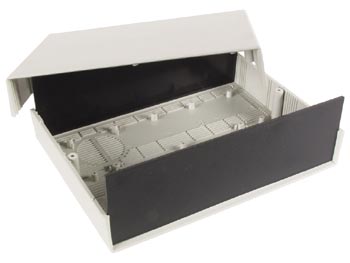

Enclosure manufactured from ABS, the box has vertical grooves on the inside to allow for the securing of PCB's. Can be easily drilled or punched, lids are retained by self tapping screws.
Order Code   Each
400-599 WCAH2507 Black ABS Box 21.84
