Coaxial Plugs

Co-Axial Line Plug
Specifications:
Contacts Nickel-plated body
Connection Screw/Claw
Cable Size 8mmØ


Conventional high quality TV coax plug, constructed from plated brass, with claw type cable grip.
Order Code   Each
098-211 Co-Axial Line Plug 0.87

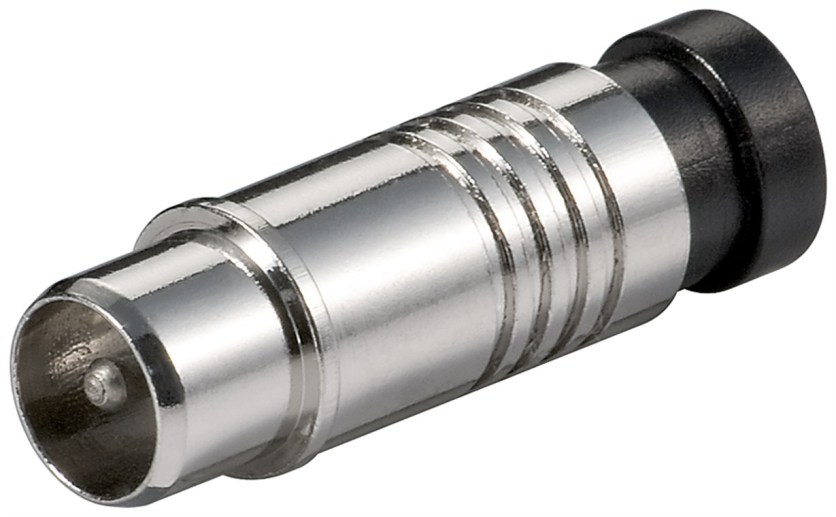

Co-Axial Plug - Compression fitting
Specifications:
Contacts Nickel-plated body
Connection Compression
Cable Size 7mmØ


Compression fitting coax plug, constructed from nickel plated brass. Suitable for cables with an outer diameter of 7mmØ and dielectric up to 4.9mm
Order Code   Each
098-213 Co-Axial Line Plug - Compression fitting 0.68



Co-Axial Line Plug - Twist-on
Specifications:
Contacts Nickel-plated body
Connection Twist on
Cable Size 7mmØ


Twist on TV coax plug, constructed from nickel plated brass.
Order Code   Each
098-214 Co-Axial Line Plug - Twist-on 0.52



Specifications:
Contacts Nickel-plated
Connection Screw
Cable Size 9.5mmØ


High quality 90º TV coax plug, constructed from cast metal components.
Order Code   Each
098-215 Co-Axial 90º Plug 2.76



Specifications:
Contacts Nickel-plated body
Connection Screw/Claw
Cable Size 8mmØ


TV coaxial socket, screw connection for centre conductor, with claw type cable grip.
Order Code   Each
098-230 Co-Axial Line Socket - solder 0.90

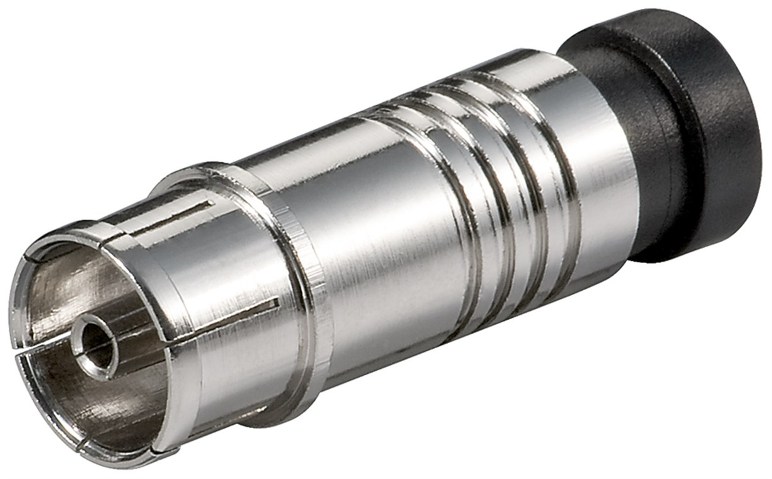

Co-Axial Socket - Compression fitting
Specifications:
Contacts Nickel-plated body
Connection Compression
Cable Size 7mmØ


Compression fitting coax socket, constructed from nickel plated brass. Suitable for cables with an outer diameter of 7mmØ and dielectric up to 4.9mm
Order Code   Each
098-233 Co-Axial Line Socket - Compression fitting 0.68



Co-Axial Chassis Plug
Specifications:
Contacts Nickel-plated
Body Metal

Panel Cut-out mmØ

Chassis mounted TV coaxial plug (male), round hole fixing.
Order Code   Each
098-240 Co-Axial Chassis Plug 0.63



Co-Axial Chassis Socket - Round Fixing
Specifications:
Contacts Nickel-plated
Body Metal

Panel Cut-out mmØ

Chassis mounted TV coaxial socket (female), round hole fixing.
Order Code   Each
098-250 Co-Axial Chassis Socket - Round Fixing 0.43



Coaxial Cable Joiner
Specifications:
Contacts Nickel-plated
Connection Screw/Claw
Body Plastic
Cable Size 7mmØ

In line cable joiner, for permanent joins in TV coax cable. (Indoor use only)
Order Code   Each
098-200 Coaxial Cable Joiner 1.70
