Terminal Strip

5A 12 Way Nylon Terminal Strip
Specifications:
Contacts Nickel-plated
Body Nylon
Connection Screw


Nylon terminal strip, easy to cut.
Order Code   Each
133-113 3A 12 Way Nylon Terminal Strip 1.30
133-115 6A 12 Way Nylon Terminal Strip 1.70
133-125 15A 12 Way Nylon Terminal Strip 1.80
133-143 30A 12 Way Nylon Terminal Strip 2.00



12 Way Pluggable Terminal Strip
Specifications:
Contacts Nickel-plated
Body Nylon
Connection Screw


Pluggable, male-female industrial quality terminal strip.. Supplied in a strip of 12, can easily be cut with knife. (Supplied as pair)
Order Code   Each
133-126 6A 12 Way Pluggable Terminal Strip 3.47



PCB Terminals

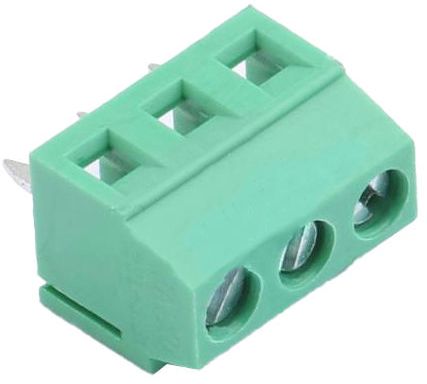

3-Way 3.5mm Pitch Terminal
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating 240v 10A
Pitch 3.5mm

Vertical PCB Terminals available in 2 and 3 way. Can be interlocked together to give any number of combinations.
Order Code   1 10+ 25+
133-212 2 Way 10A PCB Terminal Block - 3.5mm Pitch, Vertical 0.26 0.2092 0.1883

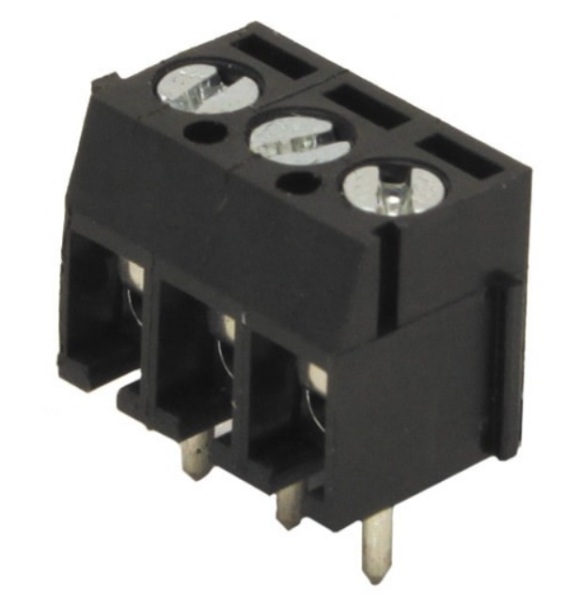

133-213 3 Way 10A PCB Terminal Block - 3.5mm Pitch, Vertical 0.36 0.2846 0.2561

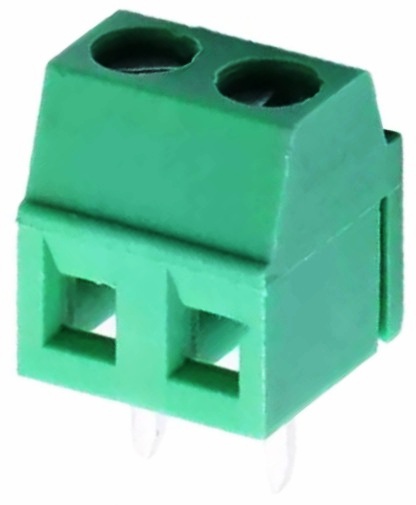

2 Way 7A PCB Terminal Block - 3.81mm Pitch, Vertical
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating 240v 7A
Pitch 3.81mm

Vertical PCB 2-way Terminals. Can be interlocked together to give any number of combinations.
Order Code   Each
133-222 2 Way 7A PCB Terminal Block - 3.81mm Pitch, Vertical



2 Way 16A PCB Terminal Block - 5mm Pitch, Vertical 3 Way 16A PCB Terminal Block - 5mm Pitch, Vertical
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating 240v 16A
Pitch 5mm

Vertical PCB Terminals available in 2 and 3 way. Can be interlocked together to give any number of combinations.
Order Code   Each
133-232 2 Way 16A PCB Terminal Block - 5mm Pitch, Vertical 0.17
133-233 3 Way 16A PCB Terminal Block - 5mm Pitch, Vertical 0.20





2 Way 16A PCB Terminal Block 3 Way 16A PCB Terminal Block
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating 240v 16A
Pitch 5mm

Horizontal PCB Terminals (Solder connection 90º). These 2 and 3 way blocks can be easily stacked to increase the number of ways.
Order Code   1 10+ 25+
133-242 2 Way 16A PCB Terminal Block - 5mm Pitch, Horizontal 0.32 0.27 0.22
133-243 3 Way 16A PCB Terminal Block - 5mm Pitch, Horizontal 0.48 0.40 0.32





2 Way 17.5A PCB Terminal Block 3 Way 17.5A PCB Terminal Block
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating 240v 17.5A
Pitch 7.5mm

Heavy duty PCB terminals available in 2 or 3 way. Blocks can be combined to give a larger number of terminals.
Order Code   1 10+ 25+
133-252 2 Way 17.5A PCB Terminal Block - 7.5mm Pitch, Vertical 0.49 0.44 0.39
133-253 3 Way 17.5A PCB Terminal Block - 7.5mm Pitch, Vertical 0.78 0.70 0.62



2 Way Pluggable Terminal Block Socket with Screws  2 Way Pluggable PCB Plug - R/A 2 Way 7A Pluggable PCB Plug - Vertical
Specifications:
Contacts Tinned Brass
Connection Screw
Current Rating 250v 7A
Dimensions mm
Pitch 3.81mm

A 2-way straight female pluggable terminal block with screw terminals for direct wiring on to cable (Max 1.5mm²). And a male 90º PCB mounting plug. Constructed from polyamide plastic with a UL94V-0 flammability rating. Cable mounted socket and PCB mounted plug sold separately.
Order Code   Each

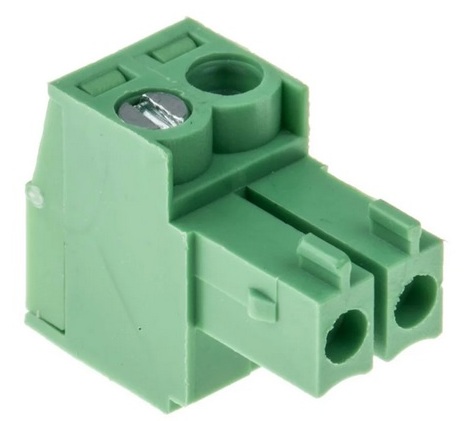

133-362 2 Way 7A Pluggable Terminal Block Socket with Screws 0.54

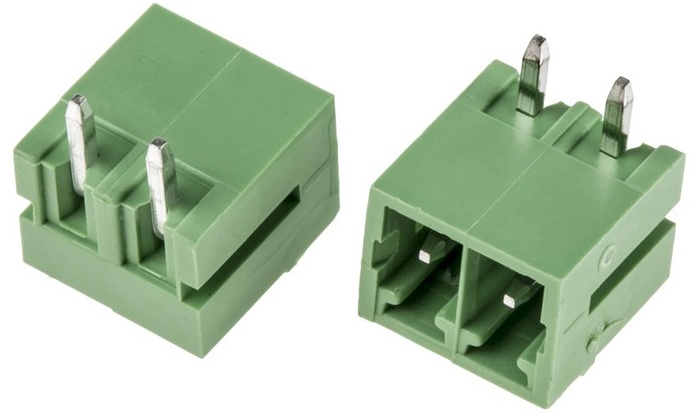

133-342 2 Way 7A Pluggable PCB Plug - R/A 0.23

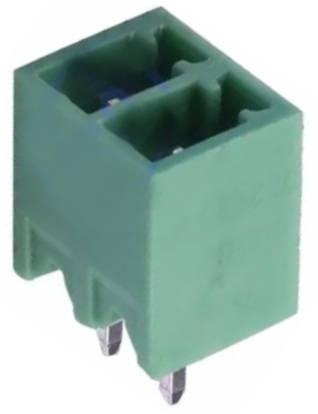

133-352 2 Way 7A Pluggable PCB Plug - Vertical

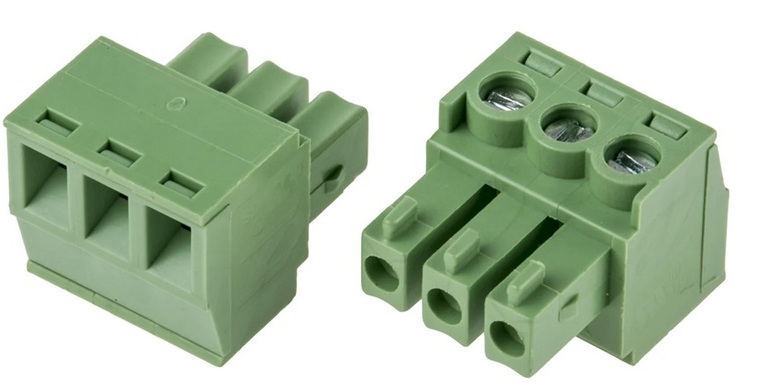

3 Way Pluggable Terminal Block Socket with Screws
Specifications:
Contacts Tinned Brass
Connection Screw
Current Rating 250v 7A
Dimensions mm
Pitch 3.81mm

A 3-way straight female pluggable terminal block with screw terminals for direct wiring on to cable (Max 1.5mm²). And a male 90º PCB mounting plug. Constructed from polyamide plastic with a UL94V-0 flammability rating. Cable mounted socket and PCB mounted plug sold separately.
Order Code   Each
133-363 3 Way 7A Pluggable Terminal Block Socket with Screws 0.83

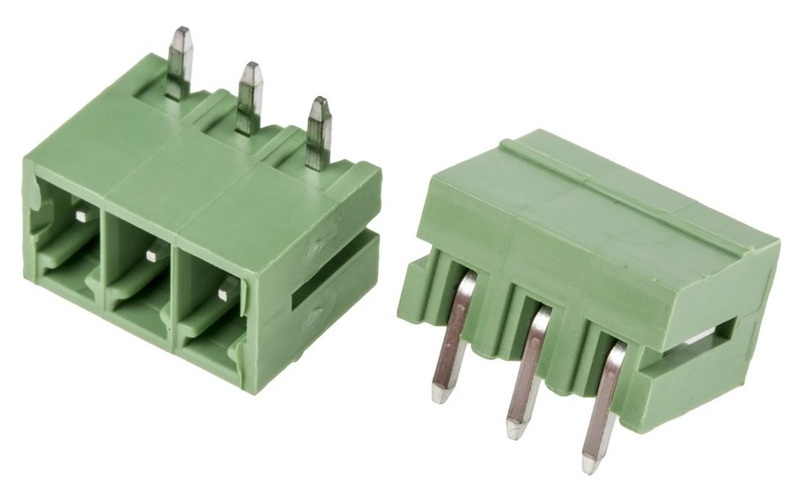

133-343 3 Way 7A Pluggable PCB Plug - R/A 0.30



2 Way Pluggable Terminal Block 2 Way PCB Socket
Specifications:
Contacts Tinned Brass
Connection Screw
Current Rating 300v 15A
Dimensions mm
Pitch 5.08mm

A 2-way straight female pluggable terminal block with screw terminals for direct wiring on to cable (Max 2.5mm²). And a male 90º PCB mounting plug. Constructed from polyamide plastic with a UL94V-0 flammability rating. Cable mounted socket and PCB mounted plug sold separately.
Order Code   1 10+ 25+

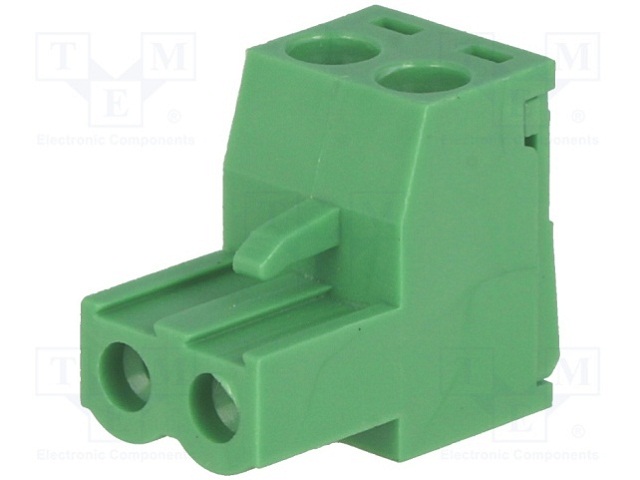

133-302 2 Way 15A Pluggable Terminal Block Socket with Screws 0.49 0.3924 0.3434

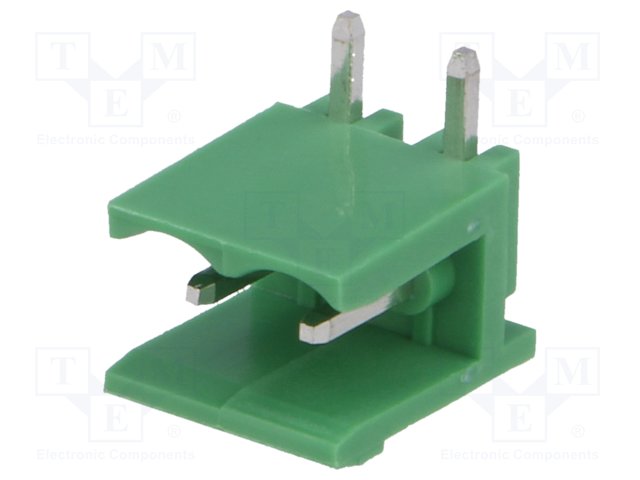

133-322 2 Way 15A Pluggable PCB Plug - R/A 0.21 0.1658 0.1451



3 Way Pluggable Terminal Block 3 Way PCB Plug
Specifications:
Contacts Tinned Brass
Connection Screw
Current Rating 300v 15A
Dimensions mm
Pitch 5.08mm

A 3-way straight female pluggable terminal block with screw terminals for direct wiring on to cable (Max 2.5mm²). And a male 90º PCB mounting plug. Constructed from polyamide plastic with a UL94V-0 flammability rating. Cable mounted socket and PCB mounted plug sold separately.
Order Code   1 10+ 25+

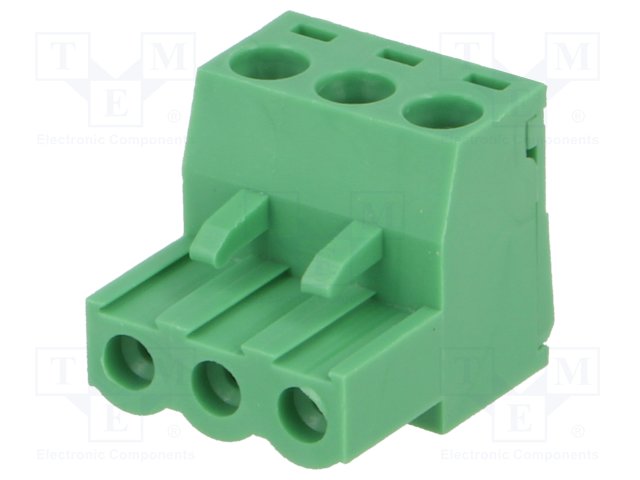

133-303 3 Way 15A Pluggable Terminal Block Socket with Screws 0.73 0.5882 0.5147

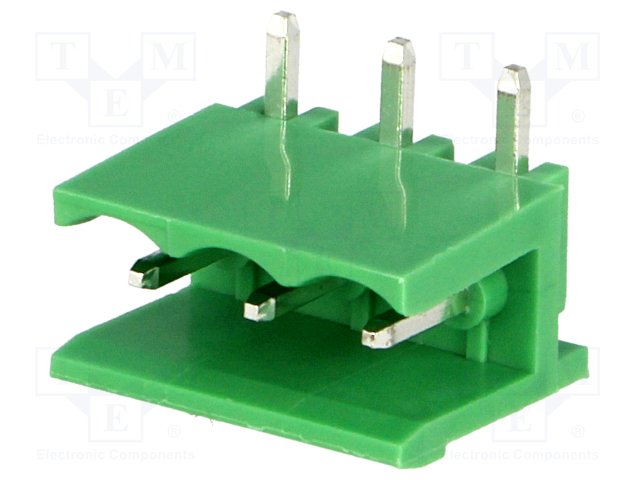

133-323 3 Way 15A Pluggable PCB Plug - R/A 0.40 0.319 0.2792



4 Way Pluggable Terminal Block 4 Way PCB Plug
Specifications:
Contacts Tinned Brass
Connection Screw
Current Rating 300v 15A
Dimensions mm
Pitch 5.08mm

A 4-way straight female pluggable terminal block with screw terminals for direct wiring on to cable (Max 2.5mm²). And a male 90º PCB mounting plug. Constructed from polyamide plastic with a UL94V-0 flammability rating. Cable mounted socket and PCB mounted plug sold separately.
Order Code   1 10+ 25+
133-304 4 Way 15A Pluggable Terminal Block Socket with Screws 0.98 0.7816 0.6839

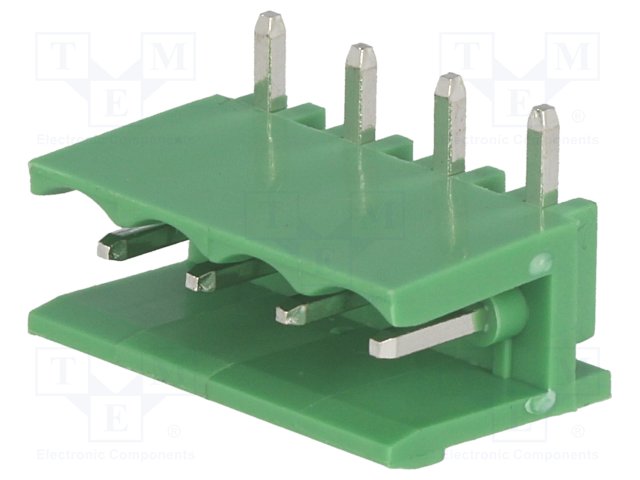

133-324 4 Way 15A Pluggable PCB Plug - R/A 0.50 0.5938 0.6432



5 Way Pluggable Terminal Block 5 Way PCB Plug
Specifications:
Contacts Tinned Brass
Connection Screw
Current Rating 300v 15A
Dimensions mm
Pitch 5.08mm

A 5-way straight female pluggable terminal block with screw terminals for direct wiring on to cable (Max 2.5mm²). And a male 90º PCB mounting plug. Constructed from polyamide plastic with a UL94V-0 flammability rating. Cable mounted socket and PCB mounted plug sold separately.
Order Code   1 10+ 25+

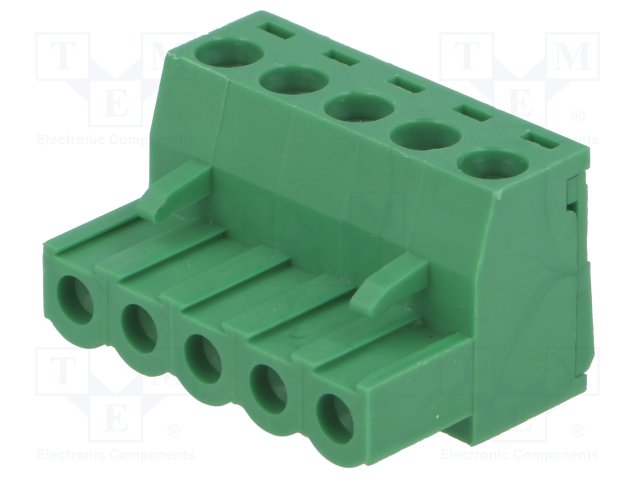

133-305 5 Way 15A Pluggable Terminal Block Socket with Screws 1.22 0.979 0.8567

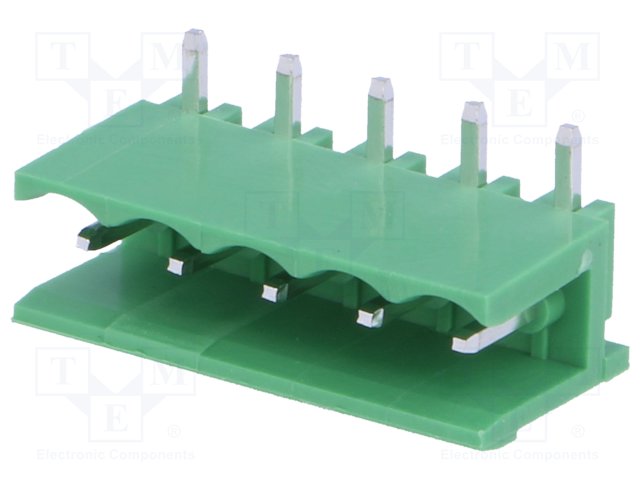

133-325 5 Way 15A Pluggable PCB Plug - R/A 0.40 0.3154 0.276



8 Way Pluggable Terminal Block 8 Way PCB Plug
Specifications:
Contacts Tinned Brass
Connection Screw
Current Rating 300v 15A
Dimensions mm
Pitch 5.08mm

A 8-way straight female pluggable terminal block with screw terminals for direct wiring on to cable (Max 2.5mm²). And a male 90º PCB mounting plug. Constructed from polyamide plastic with a UL94V-0 flammability rating. Cable mounted socket and PCB mounted plug sold separately.
Order Code   1 10+ 25+

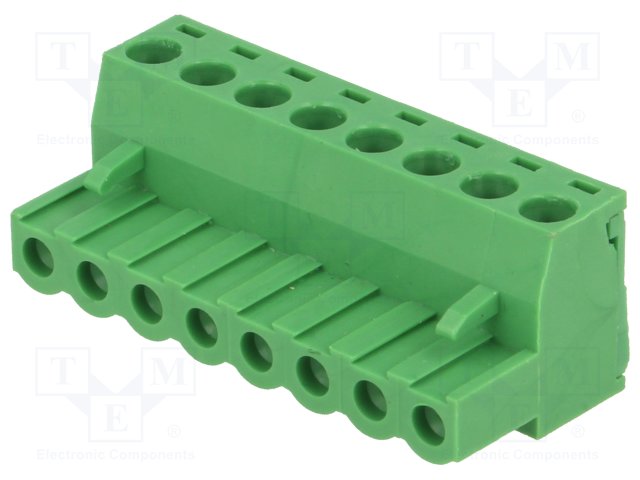

133-308 8 Way 15A Pluggable Terminal Block Socket with Screws 2.03 1.62 1.4175

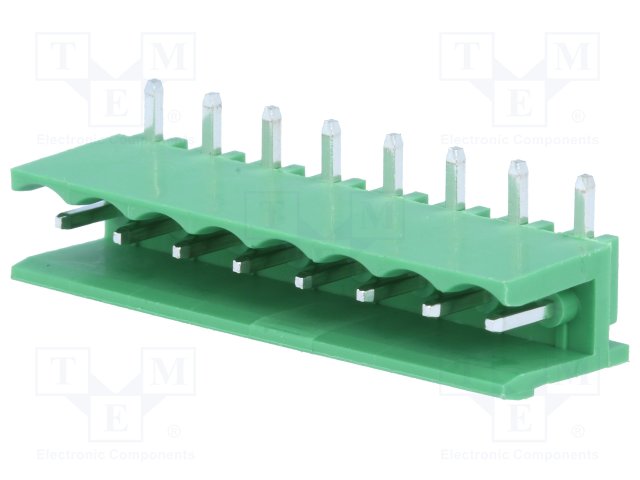

133-328 8 Way 15A Pluggable PCB Plug - R/A 0.87 0.6972 0.6101



AC/DC Power Distribution Unit
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Screw
Dimensions 90 x 45 x 11mm
Weight 30g

This module has been designed to power conventional filament lamps, LED lighting and distribution of power anywhere on your model railway layout or dolls house. Power is supplied to the module via the 2.1mm DC socket or the terminal block. This distribution board will work with AC or DC power supplies. It is a compact unit and provides 16 pairs of outputs, it is an extremely versatile little module and it has many uses for low voltage power distribution.

The power distribution board has 16 pairs of screw terminals 8 on each side. They are marked + and -. There is a single pair of terminals on the right hand side of the board these can be connected to your power supply as an input source or can be used as an output to another distribution board. A single 2.1mm DC power socket is fitted to the left hand side of the PCB this has the centre pin +
Order Code   Each
PDU AC/DC Power Distribution Unit -



15A 1 Way Porcelain Terminal Strip
Specifications:
Contacts Nickel-plated
Body Porcelain
Connection Screw



Order Code   1 10+ 25+
133-413 15A 1 Way Porcelain Terminal Strip 0.75 0.60 0.54
