Speakon Plugs and Sockets

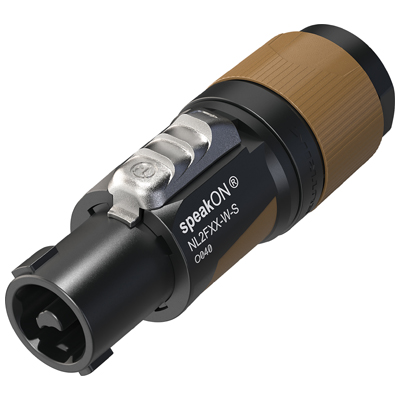

Neutrik NL2FX 2 Pole Speakon Plug
Specifications:
ContactsNickel-plated
ConnectionScrew
Current RatingA
Cable Size6-10mmØ


Neutrik Connecting the World

Neutrik NL2FX 2 pole Speakon plug with latch ring. Suitable for PA and Disco speaker leads.
Order Code 110+
091-020Neutrik NL2FX 2 Pole Speakon Plug2.051.98

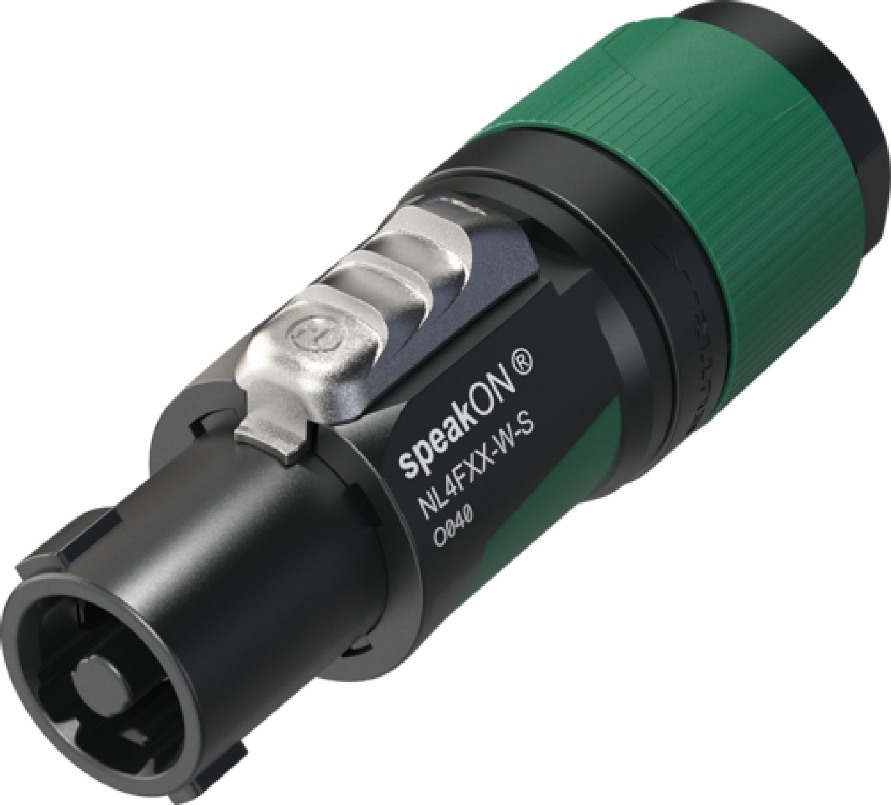

Neutrik NL4FX 4 Pole Speakon Plug
Specifications:
ContactsNickel-plated
ConnectionScrew
Current Rating240v 6A
Cable Size6-10mmØ


Neutrik Connecting the World

Neutrik NL4FX 4 pole Speakon plug with latch lock. Suitable for professional PA speaker leads.
Order Code 110+
091-040Neutrik NL4FX 4 Pole Speakon Plug3.323.08

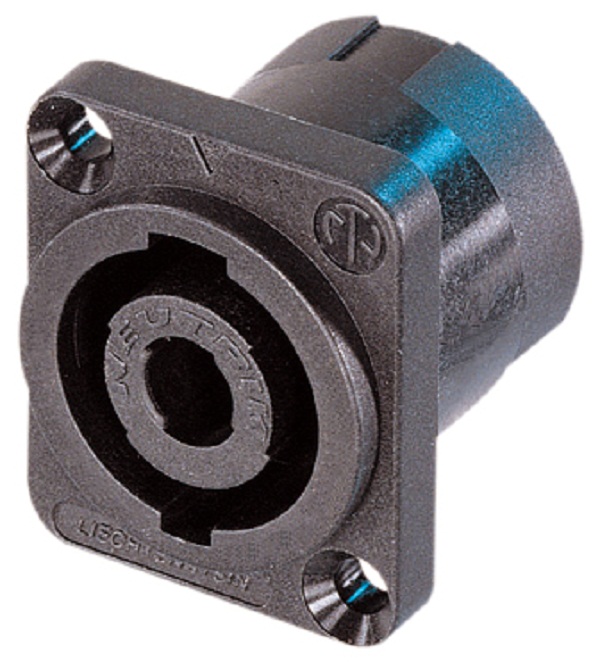

Neutrik NL4MP 4 Pole Speakon Chassis Socket
Specifications:
ContactsNickel-plated
ConnectionSolder/Crimp
Current Rating240v 6A
Dimensions25 x 30mm
Panel Cut out23.0mmØ

Neutrik Connecting the World

Neutrik 4-pole Speakon chassis socket, can be used with 2 and 4-Pole Plugs. Suitable for high power PA speaker cabinets. For suitable fixing use Neutrik MFD M3 rear mounting plate 406-885.
Order Code 110+
091-140Neutrik NL4MP 4 Pole Speakon Chassis Socket1.371.27



Neutrik NL4MPR 4 Pole Round Speakon Chassis Socket
Specifications:
ContactsNickel-plated
ConnectionSolder/Crimp
Current RatingA
Dimensions51mmØ
Panel Cut out23mmØ

Neutrik Connecting the World

Neutrik 4 pole Speakon chassis socket. (Round hole fixing) Suitable for high power PA speaker cabinets.
Order Code 110+
091-145Neutrik NL4MPR 4 Pole Round Speakon Chassis Socket2.401.92

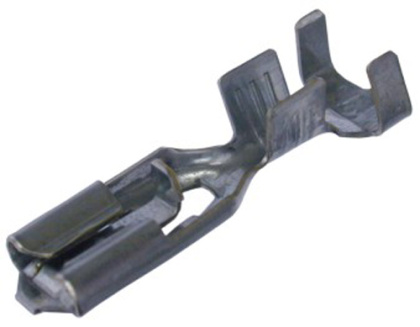

Neutrik NLFASTON terminal
Specifications:
ContactsNickel-plated
ConnectionCrimp
Wire Size0.8 - 2mm²
Max Insulation Size2.5mmØ
Rating30A 250Vac
Neutrik NLFASTON receptacle for both 2 and 4 way Speakon chassis sockets. Tabs with 'positive lock' fit 4.75 x 0.51mm. Supplied individually or a pack of 100. (Suitable crimping pliers 259-585)
Order Code EachPack (100)
139-000Neutrik NLFASTON crimp terminal 4.75 x 0.51mm0.1611.69

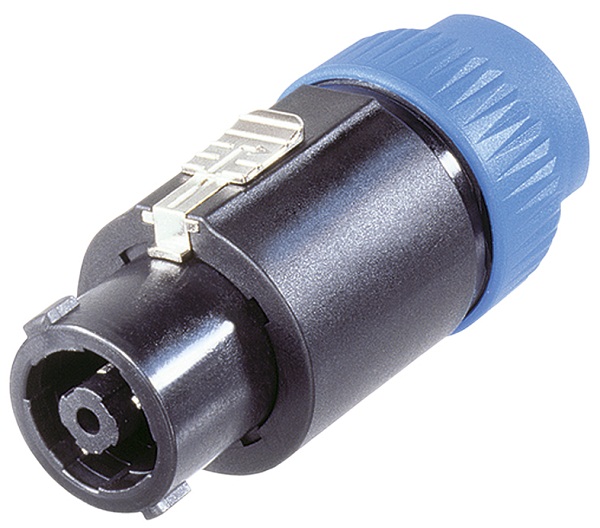

Neutrik NL8FC 8 Pole Speakon Plug
Specifications:
ContactsNickel-plated
ConnectionScrew
Current RatingA
Cable Size8-20mmØ


Neutrik Connecting the World

Neutrik 8 pole Speakon plug with latch lock. Suitable for professional PA speaker leads.
Order Code 110+
091-080Neutrik NL8FC 8 Pole Speakon Plug10.539.75



Neutrik NL8MPR 8 Pole Speakon Round Chassis Socket
Specifications:
ContactsNickel-plated
ConnectionSolder/Crimp
Current RatingA
Panel Cut out30mmØ
Fixing Holes29 x 29mm
Dimensions38 x 38mm

Neutrik Connecting the World

Neutrik 8 pole Speakon chassis socket. (Round hole fixing) Suitable for high power PA speaker cabinets.
Order Code 110+
091-185Neutrik 8 Pole Speakon Round Chassis Socket NL8MPR7.396.94
