RCA Plugs and Sockets

Black Plastic Phono Plug Red Plastic Phono Plug Yellow Plastic Phono Plug White Plastic Phono Plug
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Cable Size 4mmØ

Low cost plastic Phono (RCA) plugs, available in four colours.
Order Code   Each
090-010 Plastic Phono Plug - Black 4mm entry 0.28
090-012 Plastic Phono Plug - Red 4mm entry 0.28
090-014 Plastic Phono Plug - Yellow 4mm entry 0.28
090-019 Plastic Phono Plug - White 4mm entry 0.28



Plastic 90° Phono Plug Plastic 90° Phono Plug
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Cable Size 4mmØ

Right angle plastic Phono (RCA) plugs, available in black and red.
Order Code   1 10+ 25+
090-110 Plastic 90° Phono Plug - Black 4mm entry 0.35 0.32 0.28
090-112 Plastic 90° Phono Plug - Red 4mm entry 0.35 0.32 0.28

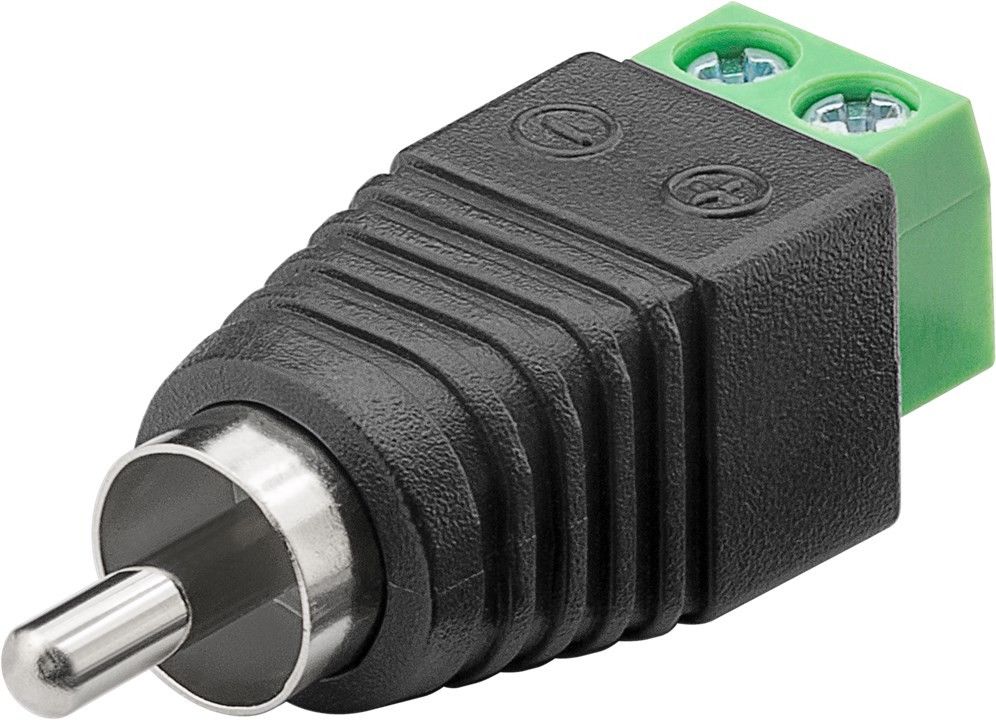

RCA Plug with Screw Terminals
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Screw
Terminal Pitch 5mm

RCA Plug with screw terminals for fast wiring with stripped cable ends, can be used for DIY, alarm technology or in the AV field or test setups.
Order Code   1 10+ 25+
090-150 Phono Plug with screw terminal block 0.39 0.325 0.26

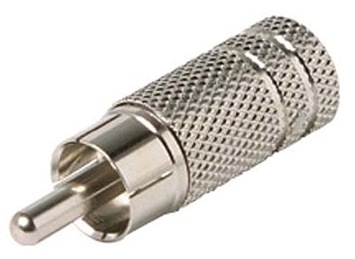

Metal RCA Plug
Specifications:
Contacts Nickel plated
Body Metal
Connection Solder
Cable Size 7mmØ

Nickel plated all metal Phono plug with large diameter cable entry.
Order Code   1 10+ 25+
090-040 Metal Phono Plug 0.56 0.45 0.41



Gold Plated Phono Plug Black Gold Plated Phono Plug Red
Specifications:
Contacts Gold plated
Body Metal
Connection Solder
Cable Size 6mmØ

High quality gold plated Phono (RCA) plugs suitable for cable up to 6mmØ. Available in red and black.
Order Code   1 10+ 25+
090-050 Gold Plated Phono Plug Black 0.92 0.82 0.74
090-052 Gold Plated Phono Plug Red 0.92 0.82 0.74



Gold Plated Phono Plug Black Gold Plated Phono Plug Red
Specifications:
Contacts Gold plated
Body Metal
Connection Solder
Cable Size 7mmØ

High quality gold plated Phono (RCA) plugs suitable for cable up to 7mmØ. Available in red and black. For suitable screened cable see or Cable Section
Order Code   1 10+ 25+
090-060 Gold Plated Phono Plug Black 1.23 0.98 0.88
090-062 Gold Plated Phono Plug Red 1.23 0.98 0.88



Black Phono Plug Red Rean RCA Plug Yellow Rean RCA Plug Green Phono Plug White RCA Plug
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder
Cable Size 6mmØ

Rean RCA plug, black shell, gold plated contacts, rubber boot for best anti-kink protection, chuck type strain relief for cable diameters from 3.5 to 6.1 mm.
Order Code   Each

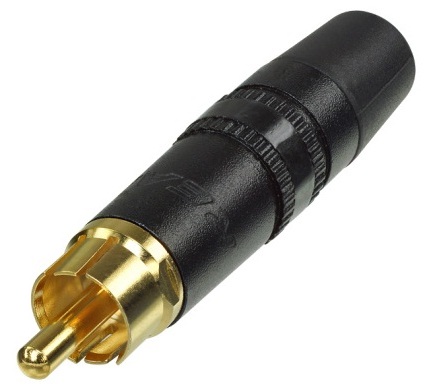

090-080 Rean NYS373 Gold Plated Black Plug 1.79

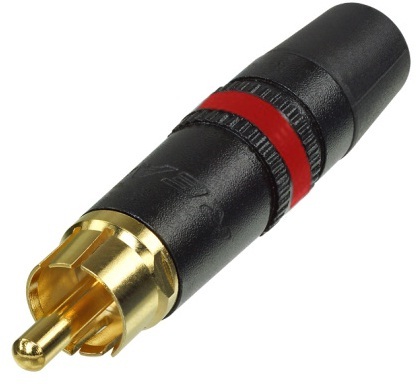

090-082 Rean NYS373 Gold Plated Red Plug 1.79

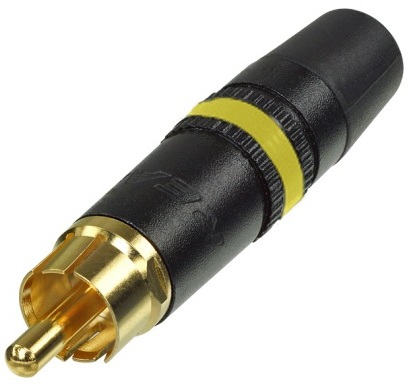

090-084 Rean NYS373 Gold Plated Yellow Plug 1.79

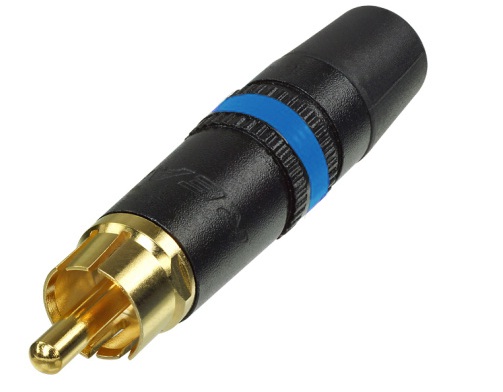

090-086 Rean NYS373 Gold Plated Blue Plug 1.79

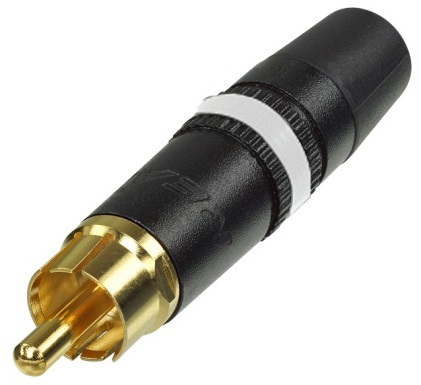

090-089 Rean NYS373 Gold Plated White Plug 1.79



Black Plastic Phono Line Socket Red Plastic Phono Line Socket Yellow Plastic Phono Line Socket White Plastic Phono Line Socket
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Cable Size 4mmØ

Low cost plastic Phono (RCA) cable sockets, available in four colours.
Order Code   Each
090-210 Plastic Phono Line Socket - Black 0.29
090-212 Plastic Phono Line Socket - Red 0.29
090-214 Plastic Phono Line Socket - Yellow 0.29
090-219 Plastic Phono Line Socket - White 0.29



Metal Phono Line Socket
Specifications:
Contacts Nickel plated
Body Metal
Connection Solder
Cable Size 7mmØ

Nickel plated all metal Phono socket with large diameter cable entry.
Order Code   1 10+ 25+
090-240 Metal Phono Line Socket with sleeve 0.84 0.7578 0.6736

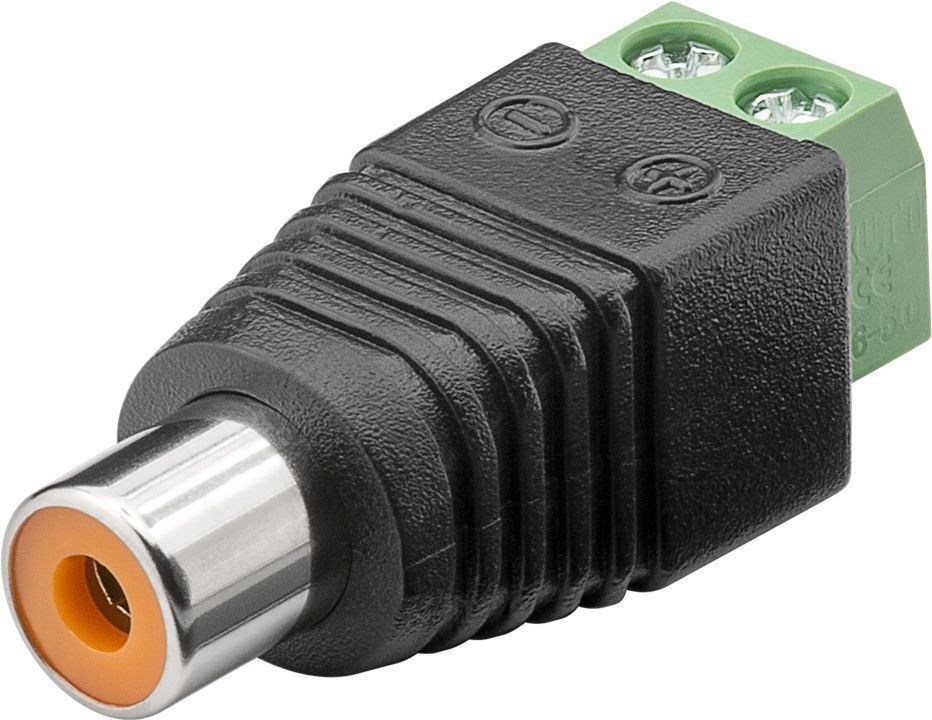

RCA Socket with Screw Terminals
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Screw
Terminal Pitch 5mm

RCA Socket with screw terminals for fast wiring with stripped cable ends, can be used for DIY, alarm technology or in the AV field or test setups.
Order Code   1 10+ 25+
090-250 Phono Plug with screw terminal block 0.39 0.325 0.26



Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Panel Cut out 6.0mmØ

Chassis mounting Phono (RCA) sockets, available in four colours.
Order Code   Each
090-540 Phono Chassis Socket - Black 0.54
090-542 Phono Chassis Socket - Red 0.54
090-544 Phono Chassis Socket - Yellow 0.62
090-549 Phono Chassis Socket - White 0.62



Gold Plated RCA Chassis Socket Black Gold Plated RCA Chassis Socket Red
Specifications:
Contacts Gold Plated
Body Metal
Connection Solder
Panel Cut out 8.0mmØ


Fully insulated phono sockets (RCA) suitable for use with pre-punched rack panels. Maximum panel thickness 8.0mm.
Order Code   Each
090-530 Gold Plated RCA Chassis Socket Black 1.05
090-532 Gold Plated RCA Chassis Socket Red 1.05

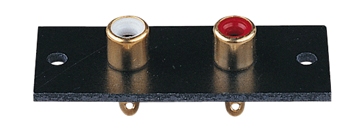

1 Pair Phono Sockets on mounting plate 2 Pairs Phono Sockets
Specifications:
Contacts Nickel-plated
Connection Solder
Dimensions
Pair mm
2 Pairs mm
Phono sockets ready mounted on plastic base, ideal for fitting on to wooden panels.
Order Code   1 10+ 25+
090-555 1 Pair Phono Sockets on mounting plate 0.60 0.45 0.30
090-556 2 Pairs Phono Sockets on mounting plate 0.68 0.51 0.34



Black PCB Phono socket Red PCB Phono socket Yellow PCB Phono socket White PCB Phono socket
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Dimensions mm

Right angle PCB mounting phono sockets, available in black, red, yellow and white.
Order Code   1 10+ 25+
090-720 Phono PCB Switched Socket, 90° - Black 0.52 0.4658 0.4399
090-722 Phono PCB Switched Socket, 90° - Red 0.52 0.4658 0.4399
090-724 Phono PCB Switched Socket, 90° - Yellow 0.52 0.4658 0.4399
090-729 Phono PCB Switched Socket, 90° - White 0.52 0.4658 0.4399
