PCB Headers (0.1")

10 Way 0.1" Locking Header - Straight
Specifications:
ContactsTin-plated brass
ConnectionSolder
BodyNylon 66, UL94V-0
Pitch2.54mm
Rating3A 250Vac

A PCB connection system comprising of multi-way male headers and cable mounting female sockets, all connectors are end to end stackable.

Male Straight PCB mounting header which incorporates a friction lock.

Order Code 125+50+
103-2122 Way 0.1" Locking Header - Straight0.070.040.03
103-2133 Way 0.1" Locking Header - Straight0.120.070.05
103-2144 Way 0.1" Locking Header - Straight0.150.090.06
103-2155 Way 0.1" Locking Header - Straight0.180.110.07
103-2166 Way 0.1" Locking Header - Straight0.190.150.10
103-2177 Way 0.1" Locking Header - Straight0.280.170.11
103-2188 Way 0.1" Locking Header - Straight0.260.160.11
103-2199 Way 0.1" Locking Header - Straight0.360.320.15
103-22010 Way 0.1" Locking Header - Straight0.320.190.13
103-22212 Way 0.1" Locking Header - Straight0.500.330.30
103-22515 Way 0.1" Locking Header - Straight0.600.400.36



10 Way 0.1" Locking Header - Right Angled
Specifications:
ContactsTin-plated brass
ConnectionSolder
BodyNylon 66, UL94V-0
Pitch2.54mm
Rating3A 250Vac

A PCB connection system comprising of multi-way male headers and cable mounting female sockets, all connectors are end to end stackable.

Male Right angled PCB mounting header which incorporates a friction lock.

Order Code 125+50+
103-2322 Way 0.1" Locking Header - Right Angled0.090.06780.0452
103-2333 Way 0.1" Locking Header - Right Angled0.140.1020.068
103-2344 Way 0.1" Locking Header - Right Angled0.140.090.06
103-2355 Way 0.1" Locking Header - Right Angled0.180.110.08
103-2366 Way 0.1" Locking Header - Right Angled0.320.190.13
103-2377 Way 0.1" Locking Header - Right Angled0.310.190.13
103-2388 Way 0.1" Locking Header - Right Angled0.300.180.12
103-2399 Way 0.1" Locking Header - Right Angled0.530.320.21
103-24010 Way 0.1" Locking Header - Right Angled0.440.270.18
103-24212 Way 0.1" Locking Header - Right Angled0.530.320.21
103-24515 Way 0.1" Locking Header - Right Angled0.720.430.29



10 Way 0.1" Latching Female Housing
Specifications:
BodyNylon 66, UL94V-0
Pitch2.54mm




A PCB connection system comprising of multi-way male headers and cable mounting female sockets, all connectors are end to end stackable.

Locking plastic housing for use with Straight and Right angled headers. Crimp terminals (103-200) supplied separately.

Order Code 125+50+
103-2522 Way 0.1" Latching Female Housing0.090.05380.043
103-2533 Way 0.1" Latching Female Housing0.110.070.05
103-2544 Way 0.1" Latching Female Housing0.180.13440.0896
103-2555 Way 0.1" Latching Female Housing0.100.070.04
103-2566 Way 0.1" Latching Female Housing0.250.18990.1266
103-2577 Way 0.1" Latching Female Housing0.170.14970.1328
103-2588 Way 0.1" Latching Female Housing0.200.140.12
103-2599 Way 0.1" Latching Female Housing0.170.100.07
103-26010 Way 0.1" Latching Female Housing0.260.170.15
103-26212 Way 0.1" Latching Female Housing0.220.130.09
103-26515 Way 0.1" Latching Female Housing0.250.170.15



0.1" Crimp Terminals Pins
Specifications:
ContactsNickel-plated
ConnectionCrimp
Wire Size0.055 - 0.33mm²
Max Insulation Size1.55mmØ
Rating3A 250Vac
These crimp terminals feature double cantilever contacts which are designed to provide high uniform contact pressure and clean off any oxides when connection is made. Supplied as a pack of 10 or a pack of 100. (Suitable crimping pliers 259-517)
Order Code Pack of 10Pack of 100
103-200Pack of 0.1" Crimp Terminals Pins0.241.41



Housing with 200mm cable
Specifications:
BodyNylon 66, UL94V-0
Pitch2.54mm




Locking plastic housing for use with Straight and Right angled headers. Supplied fitted with terminals and 200mm of cable.

Order Code 125+50+
103-2722 Way 0.1" Female Housing0.570.480.38
103-2733 Way 0.1" Female Housing0.700.580.45
103-2744 Way 0.1" Female Housing0.780.640.49
103-2755 Way 0.1" Female Housing0.830.670.51
103-2766 Way 0.1" Female Housing0.900.720.54
103-2788 Way 0.1" Female Housing1.100.880.66
103-28010 Way 0.1" Female Housing1.371.080.86
103-28212 Way 0.1" Female Housing1.511.200.95
103-28515 Way 0.1" Female Housing1.911.651.31

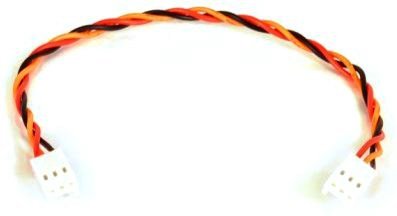

TinkerKit Cables
Specifications:
BodyNylon 66, UL94V-0
Pitch2.54mm




Ready made leads, 3-way with a socket at each end. Available in three lengths 200, 500 and 1000mm. Ideal for use with Arduino TinkerKit Shields.

Order Code 125+50+
103-2933 Way 0.1" Female Housing with 200mm cable (T020060)0.750.680.63
103-2943 Way 0.1" Female Housing with 500mm cable (T020070)1.080.970.90
103-2953 Way 0.1" Female Housing with 1000mm cable (T020080)1.521.421.31



4-Way TinkerKit Leads
Specifications:
BodyNylon 66, UL94V-0
Pitch2.54mm




Ready made leads, 4-way with a socket at each end. Available in three lengths 250, 550 and 1050mm. Ideal for use with Arduino TinkerKit Shields.

Order Code 125+50+
103-2964 Way 0.1" Female Housing with 250mm cable (T020160)1.281.161.01
103-2974 Way 0.1" Female Housing with 550mm cable (T020170)1.561.421.31
103-2984 Way 0.1" Female Housing with 1050mm cable (T020180)2.061.851.71
