BNC Connectors

BNC 50R Line plug - Solder (5mm)
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionSolder
Cable Size5mmØ

High quality 50Ω BNC plug with clamp type termination. Suitable for RG58 coaxial cable.
Order Code 110+25+
097-010BNC 50R Line plug - Solder (5mm)1.080.720.65



BNC 50R Line plug - Crimp 5mm
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionCrimp
Cable Size5mmØ

High quality 50Ω BNC plug crimp type terminations. Suitable for RG58 coaxial cable.
Order Code 110+25+
097-012BNC 50R Line plug - Crimp (5mm)0.640.480.40



BNC 50R Line socket - Solder
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionSolder
Cable Size5mmØ

High quality 50Ω BNC socket with clamp type termination. Suitable for RG58 coaxial cable.
Order Code 110+25+
097-030BNC 50R Line socket - Solder (5mm)0.920.690.46



Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionSolder
Cable Size5mmØ

High quality 50Ω BNC socket crimp type terminations. Suitable for RG58 coaxial cable.
Order Code 110+25+
097-032BNC 50R Line socket - Crimp (5mm)0.960.860.82



BNC Strain Relief BlackBNC Strain Relief Red
Specifications:
Cable Size5mmØ




Strain relief boots for BNC and TNC 50Ω crimp plugs. Available in either Black or Red.
Order Code 110+25+
097-080BNC Strain Relief Black - RG580.150.120.11
097-082BNC Strain Relief Red - RG580.240.220.20



BNC 75R Line plug - Solder (7mm)
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionSolder
Cable Size7mmØ

High quality 75Ω BNC plug with clamp type termination. Suitable for RG6 coaxial cable.
Order Code 110+25+
097-110BNC 75R Line plug - Solder (7mm)1.080.720.65



BNC 75R Line plug - Crimp (7mm)
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionCrimp
Cable Size7mmØ

High quality 75Ω BNC plug crimp type terminations. Suitable for RG59 coaxial cable.
Order Code 110+25+
097-112BNC 75R Line plug - Crimp (7mm)0.960.720.60



 90º BNC Plug
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionCrimp
Cable Size7mmØ

High quality 90º 75Ω BNC plug crimp type terminations. Suitable for RG59 coaxial cable.
Order Code 110+25+
097-113BNC 75R 90º Line plug - Crimp (7mm)1.431.19380.955

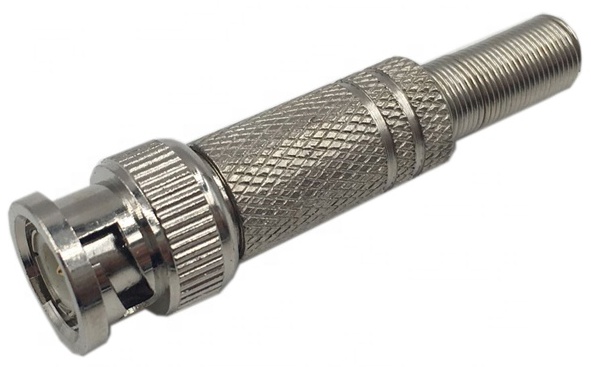

BNC 75R Line plug - Solder
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionSolder
Cable Size7mmØ

High quality 75Ω BNC plug, easy to use with solder terminations. Suitable for RG59 coaxial cable.
Order Code 110+25+
097-116BNC 75R Line plug - Solder (7mm)1.200.800.72

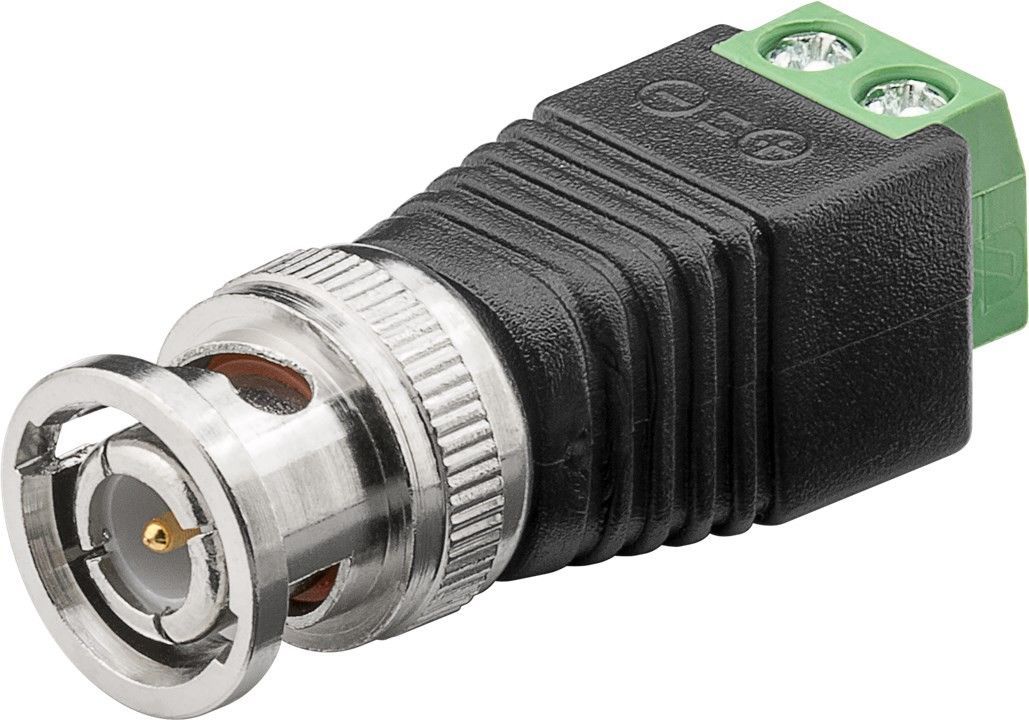

BNC 75R Line plug - Screw
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionScrew
Cable Size7mmØ

High quality 75Ω BNC plug with screw terminals. Ideal for DIY CCTV installations. Suitable for RG59 coaxial cable.
Order Code 110+25+
097-118BNC 75R Line plug - Screw (7mm)1.060.710.63



BNC 75R Line plug - Twist-On (7mm)
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
Connection-
Cable Size7mmØ

High quality twist on 75Ω BNC plug. Suitable for RG59 coaxial cable.
Order Code 110+25+
097-114BNC 75R Line plug - Twist-On (7mm)1.040.830.75



BNC Line Socket
Specifications:
ContactsNickel-plated body
 Gold plated centre pin
ConnectionClampp
Cable Size7mmØ

High quality 75Ω BNC socket clamp type terminations. Suitable for RG59 coaxial cable.
Order Code 110+25+
097-130BNC 75R Line socket - Clamp (7mm)0.930.830.66



BNC Strain Relief Black
Specifications:
Cable Size7mmØ




Black strain relief boot for BNC and TNC 75Ω crimp plugs.
Order Code 110+25+
097-180BNC Strain Relief Black - RG590.130.110.09



BNC Chassis Socket - Round Hole FixingBNC Insulated Chassis Socket - Round Hole Fix
Specifications:
ContactsNickel-plated
BodyMetal

Panel Cut-out9.5mmØ

Chassis mounting BNC socket with round hole fixing. (Non-Insulated)Chassis mounting BNC socket with round hole fixing. (Insulated)
Order Code 110+25+
097-050BNC Chassis Socket - Round Hole Fixing0.910.780.59
097-051BNC Insulated Chassis Socket - Round Hole Fix1.381.241.10



BNC Chassis Socket -Square Flange
Specifications:
ContactsNickel-plated
BodyMetal

Panel Cut-out10mmØ
Fixing Holes14 x 14mm (3mmØ)
Dimensions (Flange)20 x 20 x 27mm
Weight9g
Chassis mounting BNC socket with square flange and four hole fixing.
Order Code 110+25+
097-055BNC Chassis Socket -Square Flange 1.040.940.83



BNC Chassis Socket - 'D' Type Housing
Specifications:
ModelBFC101
ContactsNickel-plated
ConnectionSolder
BodyMetal (Black)
Panel Cut-out23mmØ
Chassis mounting BNC socket, mounted in the universally accepted 'D' Type chassis body. For suitable fixing use Neutrik MFD M3 rear mounting plate 406-885.
Order Code 110+25+
097-155BFC101 BNC Chassis Socket - 'D' Type Housing2.161.941.80



50 Ohm BNC Terminator Plug75 Ohm BNC Terminator Plug
Specifications:
ContactsNickel-plated body
 Gold plated centre pin



BNC terminators available in 50Ω and 75Ω impedance
Order Code 110+25+
097-09050 Ohm BNC Terminator Plug0.920.690.46
097-19075 Ohm BNC Terminator Plug1.170.780.70
