3.5mm Stereo Jack Plugs

3.5mm Stereo Plastic Plug3.5mm Stereo Plastic Line Socket
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyBlack Plastic
Maximum Cable5mm

High quality stereo 3.5mm jack plug and line socket with a soft black plastic cover and integral cable strain relief.
Order Code 110+25+
077-0103.5mm Stereo Plastic Plug0.350.280.21
077-2103.5mm Stereo Plastic Line Socket0.270.200.14



3.5mm Stereo Metal Plug
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyMetal
Maximum Cable5mm

High quality stereo 3.5mm jack plug with metal cover and protective cable spring.
Order Code 110+25+
077-0403.5mm Stereo Metal Plug0.600.400.36



3.5mm Stereo Gold-plated Plug
Specifications:
ContactsGold Plated
ConnectionSolder
BodyMetal
Maximum Cable5mm

High quality gold plated stereo 3.5mm jack plug with metal cover and protective cable spring.
Order Code 110+25+
077-0503.5mm Stereo Gold-plated Plug with spring cable protector1.401.261.19



3.5mm Stereo Plastic Plug - Right Angled
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyPlastic
Maximum Cable5mm

Stereo 3.5mm 90 jack plug with integral cable strain relief.
Order Code 110+25+
077-1003.5mm Stereo Plastic Plug - Right angled0.450.340.23



3.5mm Stereo 'Screwlock' Jack Plug
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyMetal
Maximum Cable4mm
High quality 'Screwlock' stereo 3.5mm jack plug with metal cover and protective cable spring. This jack plug has locking ring which mates with line socket or chassis socket.
Order Code 110+25+
077-0653.5mm Stereo 'Screwlock' Jack Plug1.681.591.51

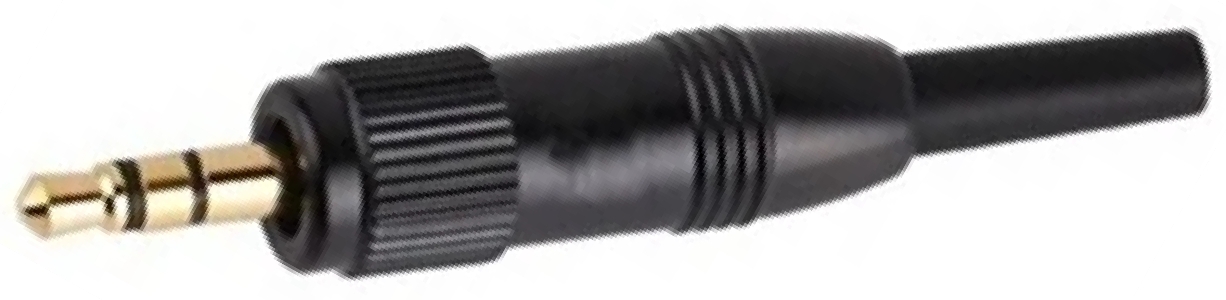

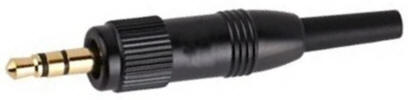

3.5mm Stereo Locking Plug
Specifications:
ContactsGold-plated
ConnectionSolder
BodyMetal Black finish
Maximum Cable5mm
High quality all metal 3.5mm stereo jack plug. This stereo jack plug has integral locking ring which fits standard chassis mounting sockets. Ideal for use with radio microphone belt backs and motorcycle intercoms.
Order Code 110+25+
077-0603.5mm Stereo Locking Plug1.791.611.52

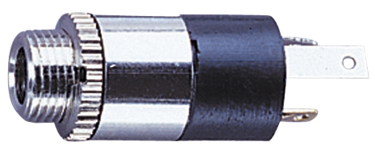

3.5mm Chassis Socket
Specifications:
ContactsNickel-plated
ConnectionSolder
MetalPlastic
Panel Cut-out7mm
Stereo mounting 3.5mm chassis socket. Supplied with locking ring
Order Code 110+25+
077-5203.5mm Stereo Chassis Socket0.530.440.35



3.5mm Stereo Chassis Socket
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyPlastic
Panel Cut-outmm
Stereo 3.5mm chassis socket. Supplied with locking ring
Order Code 110+25+
077-5103.5mm Stereo Chassis Socket0.480.360.24



3.5mm Stereo 'Screwlock' Jack Socket
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyMetal
Maximum Cable4mm
High quality 'Screwlock' stereo 3.5mm inline jack socket with metal cover and protective cable spring. This jack plug has locking ring which mates with jack plug.
Order Code 110+25+
077-2653.5mm Stereo 'Screwlock' Jack Socket1.100.990.94



3.5mm Stereo 'Screwlock' Chassis Socket
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyMetal
Panel Cut-outmm
High quality 'Screwlock' stereo 3.5mm chassis socket. Suitable for use with 077-065 stereo jack plug. (Standard plugs will fit).
Order Code 110+25+
077-5653.5mm Stereo 'Screwlock' Chassis Socket2.081.851.66



3.5mm Stereo switched chassis/PCB socket
Specifications:
ContactsNickel-plated
ConnectionSolder
BodyPlastic
Panel Cut-outmm
Stereo 3.5mm PCB or chassis socket with integral switch
Order Code 110+25+
077-5153.5mm Stereo switched chassis/PCB socket0.390.310.28
