Battery Holders

Specifications:
Battery Size	PP3
Number of Cells	1
Material	Plastic
Connection	Leads

Three styles of PP3 battery snap connectors, two are manufactured from heavy duty ABS plastic, the other from cardboard covered in soft plastic. These can also be used to connect with our rage of battery housings.

Order Code		1	10+	25+
010-013	PP3 Battery Clip, Heavy Duty 'T' Shape	0.25	0.20	0.162
010-014	PP3 Battery Clip, Heavy Duty with 150mm Leads	0.26	0.23	0.207
010-015	PP3 Battery Clip, soft plastic cover with 150mm Leads	0.13	0.102	0.0918

Specifications:
Battery Size	PP3
Number of Cells	1
Material	Plastic
Connection	leads
Dimensions	55 x 31 x 20mm

Plastic holder for housing 1 PP3 battery, ideal for fixing in a case or box.

Order Code		1	10+	25+
010-012	PP3 Battery Holder 1 x 9V with leads	0.35	0.28	0.25

Specifications:
Battery Size	PP3
Number of Cells	1
Material	Plastic
Connection	leads
Dimensions	68 x 34 x 21mm
Weight	19g

Download Drawing >

A small plastic box with slide off lid, fitted with on/off switch. Suitable for housing 1 PP3 battery. (Leads Approx 100mm)

Order Code		1	10+	25+
010-011	Single PP3 Battery Holder with Switch	1.42	1.135	0.908

Specifications:
Battery Size	PP9
Number of Cells	1
Material	Plastic
Connection	leads
Dimensions	mm

Pair of clips suitable for a PP9 battery, supplied as a pair (Red/Black) with 100mm cable

Order Code		1	10+	25+
010-016	PP9 Battery Clip (Red/Black), soft plastic cover	0.70	0.63	0.56

Specifications:
Battery Size	CR2032
Number of Cells	1
Material	Plastic
Connection	Solder
Dimensions	9 x 23mmØ

Plastic coin cell holder for direct PCB mounting, holds one CR2032 Button cell.

Order Code		1	10+	25+
010-006	CR2032 Battery Holder (19mm)	0.72	0.6507	0.5784

Specifications:
Battery Size	Various
Number of Cells	1
Material	Plastic
Connection	Solder
Dimensions	mm

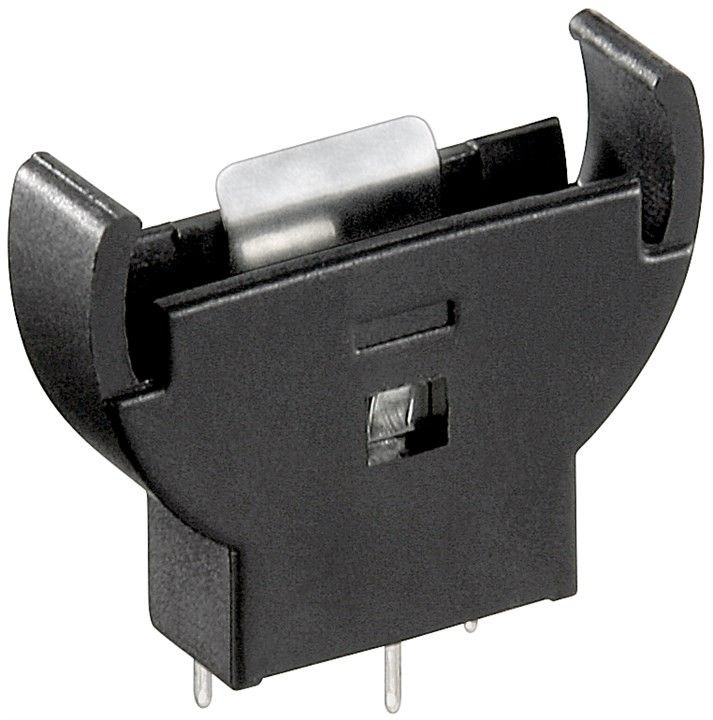

Plastic coin cell holder for direct (Vertical) PCB mounting, holds one of CR2012, CR2016, CR2020, CR2025 or CR2032.

Order Code		1	10+	25+
010-002	PCB Battery Holder (Vertical)	0.54	0.36	0.27

N Cell Holders

Specifications:
Battery Size	N
Number of Cells	1
Material	Plastic
Connection	Solder Tag
Dimensions	50 x 13 x 12mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for one N size battery.

Order Code		1	10+	25+
010-040	1 x N Battery Holder with solder tags	0.43	0.34	0.31

Specifications:
Battery Size	N
Number of Cells	2
Material	Plastic
Connection	Wires
Dimensions	40 x 30x 15mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for two N size batteries.

Order Code		1	10+	25+
010-042	2 x N Battery Holder	0.36	0.29	0.33

AAA Battery Holders

Specifications:
Battery Size	AAA
Number of Cells	1
Material	Plastic
Connection	Solder Tag
Dimensions	50 x 13 x 12mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for one AAA size battery, available with solder tags or with 150mm leads.

Order Code		1	10+	25+
010-034	1 x AAA Battery Holder with solder tags	0.34	0.27	0.22
010-043	1 x AAA Battery Holder with wires	0.39	0.33	0.26

Specifications:
Battery Size	AAA
Number of Cells	2
Material	Plastic
Connection	Snap
Dimensions	58 x 16 x 32mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for two AAA size batteries

Order Code		1	10+	25+
010-024	2 x AAA Cell Battery Holder, Solder tag	0.28	0.22	0.18

Specifications:
Battery Size	AAA
Number of Cells	3
Material	Plastic
Connection	Wires
Dimensions	53 x 38 x 13mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for three AAA size batteries.

Order Code		1	10+	25+
010-023	3 x AAA Battery Holder with 150mm Wires	0.64	0.51	0.46

Specifications:
Battery Size	AAA
Number of Cells	4
Material	Plastic
Connection	Wires 150nn
Dimensions	50 x 55 x14mm

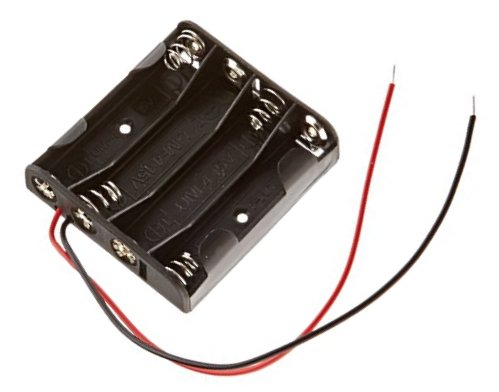

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for four AAA size batteries.

Order Code		1	10+	25+
010-026	4 x AAA Cell Battery Holder with Wires	0.44	0.40	0.35

Specifications:
Battery Size	AAA
Number of Cells	4
Material	Plastic
Connection	Solder Tag
Dimensions	53 x 27 x 25mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for four AAA size batteries

Order Code		1	10+	25+
010-025	4 x AAA Cell Battery Holder, Solder tag	0.40	0.36	0.326

Specifications:
Battery Size	AAA
Number of Cells	3
Material	Plastic
Connection	Wires
Dimensions	64 x 37 x 15mm

Download Drawing >

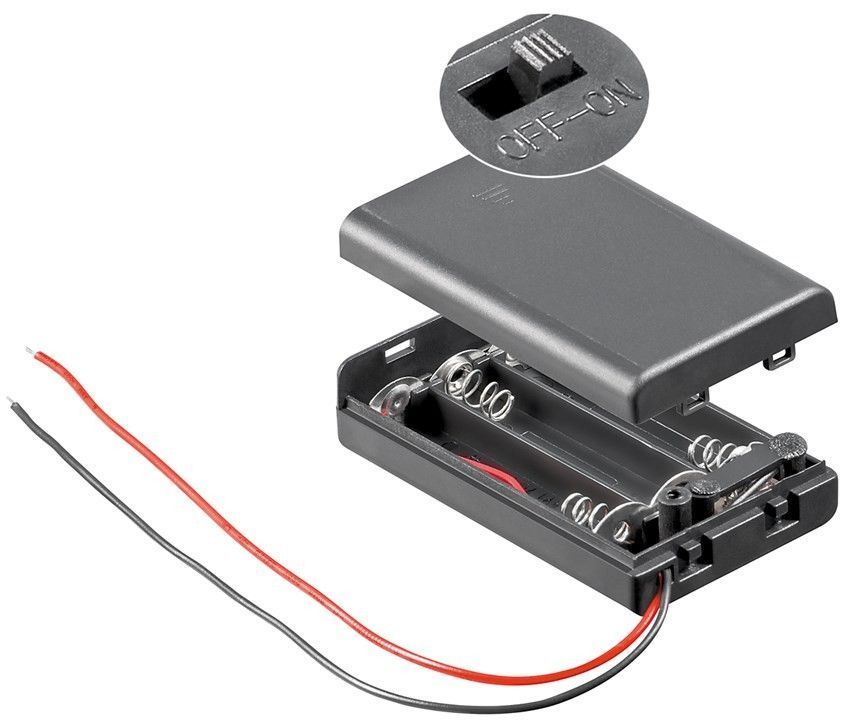

A small plastic box with clip on lid, fitted with on/off switch. Suitable for housing 3 AAA batteries. (Leads Approx 100mm)

Order Code		1	10+	25+
010-044	3 x AAA Battery Box with leads & switch	1.12	0.84	0.56

AA Battery Holders

Specifications:
Battery Size	AA
Number of Cells	1
Material	Plastic
Connection	Solder Tag
Dimensions	57 x 13 x 16mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for one AA size battery

Order Code		1	10+	25+
010-027	1 x AA Cell Battery Holder, Solder Tag	0.32	0.288	0.256

Specifications:
Battery Size	AA
Number of Cells	2
Material	Plastic
Connection	Snap
Dimensions	57 x 26 17mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for two AA size batteries.

Order Code		1	10+	25+
010-017	2 x AA Cell Battery Holder, Snap Fixing	0.43	0.3408	0.3067

Specifications:
Battery Size	AA
Number of Cells	3
Material	Plastic
Connection	Snap
Dimensions	58 x 17 x 48mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for three AA size batteries

Order Code		1	10+	25+
010-035	3 x AA Cell Battery Holder, Snap Fixing	0.30	0.27	0.24

Specifications:
Battery Size	AA
Number of Cells	4
Material	Plastic
Connection	Snap
Dimensions	58 x 28 x 31mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for four AA size batteries

Order Code		1	10+	25+
010-018	4 x AA Cell Battery Holder (Cube) Snap Fixing	0.55	0.4912	0.4421

Specifications:
Battery Size	AA
Number of Cells	4
Material	Plastic
Connection	Snap
Dimensions	64 x 16 x 58mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for four AA size batteries

Order Code		1	10+	25+
010-029	4 x AA Cell Battery Holder (Flat) Snap Fixing	0.54	0.49	0.43

Specifications:
Battery Size	AA
Number of Cells	4
Material	Plastic
Connection	Snap
Dimensions	109 x 26 x 17mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for four AA size batteries

Order Code		1	10+	25+
010-028	4 x AA Cell Battery Holder (Long) Snap Fixing	0.61	0.4868	0.4381

Specifications:
Battery Size	AA
Number of Cells	6
Material	Plastic
Connection	Snap
Dimensions	58 x 28 x 45mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for six AA size batteries

Order Code		1	10+	25+
010-030	6 x AA Cell Battery Holder, Snap Fixing	0.74	0.589	0.5153

Specifications:
Battery Size	AA
Number of Cells	8
Material	Plastic
Connection	Snap
Dimensions	63 x 29 x 58mm

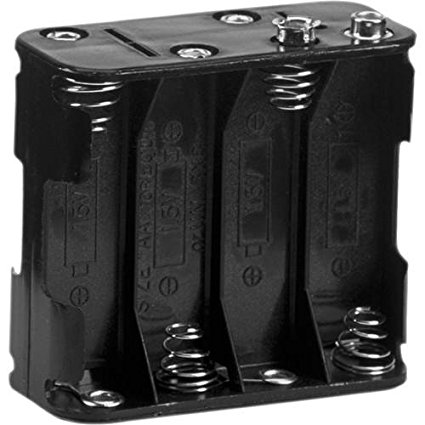

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for eight AA size batteries

Order Code		1	10+	25+
010-031	8 x AA Cell Battery Holder, Snap Fixing	0.70	0.63	0.56

Specifications:
Battery Size	AA
Number of Cells	2
Material	Plastic
Connection	Wires
Dimensions	68 x 33 x 19mm

Download Drawing >

A small plastic box with clip on lid, fitted with on/off switch. Suitable for housing 2 AA batteries. (Leads Approx 100mm)

Order Code		1	10+	25+
010-045	2 x AA Battery Box with leads & switch	1.20	0.96	0.72

Specifications:
Battery Size	AA
Number of Cells	3
Material	Plastic
Connection	Wires
Dimensions	69 x 48 x 20mm

Download Drawing >

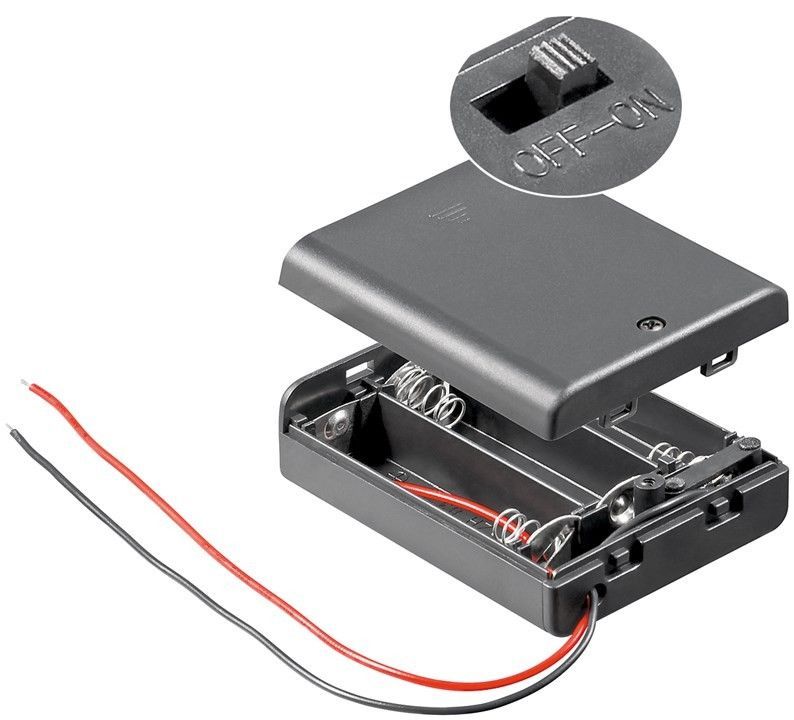

A small plastic box with clip on lid, fitted with on/off switch. Suitable for housing 3 AA batteries. (Leads Approx 100mm)

Order Code		1	10+	25+
010-046	3 x AA Battery Box with leads & switch	1.50	1.20	0.90

Specifications:
Battery Size	AA
Number of Cells	4
Material	Plastic
Connection	Wires
Dimensions	69 x 65 x 23mm

Download Drawing >

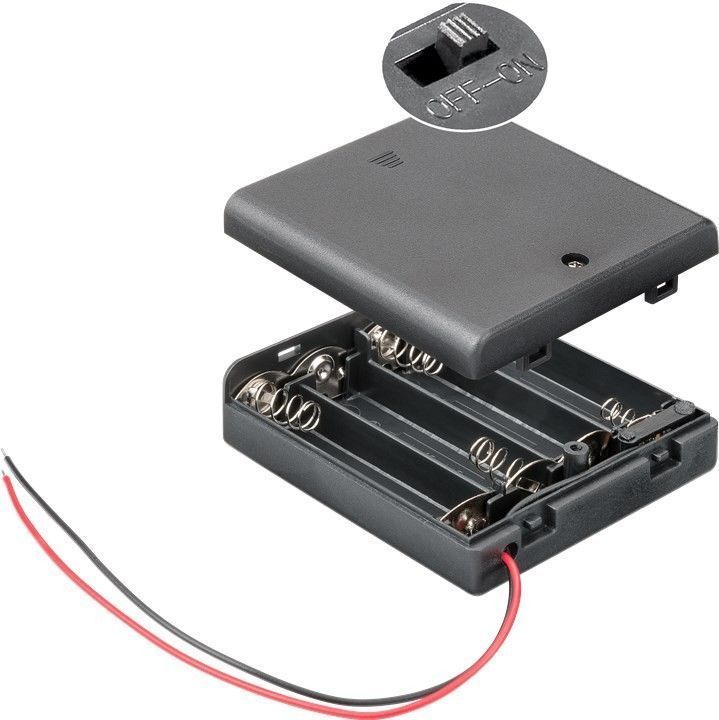

A small plastic box with clip on lid, fitted with on/off switch. Suitable for housing 4 AA batteries. (Leads Approx 100mm)

Order Code		1	10+	25+
010-047	4 x AA Battery Box with leads & switch	1.75	1.40	1.05

C Cell Holders

Specifications:
Battery Size	C
Number of Cells	1
Material	Plastic
Connection	Solder Tag
Dimensions	62 x 25 x 30mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for one C size battery

Order Code		1	10+	25+
010-032	1 x C Cell Battery Holder	0.37	0.33	0.29

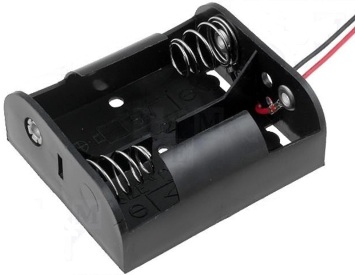

Battery Holder for 2 'C' Cells with Leads

Specifications:
Battery Size	C
Number of Cells	2
Material	Plastic
Connection	Snap
Dimensions	56 x 23 x 55mm

Battery holders moulded from thermoplastic, with nickel plated spring contacts. Suitable for two C size batteries, available with solder tags or with 150mm leads.

Order Code		1	10+	25+
010-019	2 x C Cell Battery Holder, Snap Fixing	0.63	0.42	0.336
010-036	2 x C Cell Battery Holder, with leads	0.83	0.747	0.664

Specifications:
Battery Size	C
Number of Cells	4
Material	Plastic
Connection	Snap
Dimensions	106 x 22 x 59mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for four C size batteries

Order Code		1	10+	25+
010-020	4 x C Cell Battery Holder, Snap Fixing	0.90	0.84	0.81

D Cell Holder

Specifications:
Battery Size	D
Number of Cells	1
Material	Plastic
Connection	Solder Tag
Dimensions	68 x 27 x 35mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for one D size battery

Order Code		1	10+	25+
010-033	1 x D Cell Battery Holder	0.64	0.5719	0.5083

Specifications:
Battery Size	D
Number of Cells	2
Material	Plastic
Connection	Snap
Dimensions	71 x 31 x 72mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for two D size batteries

Order Code		1	10+	25+
010-021	2 x D Cell Battery Holder, Snap Fixing	0.68	0.54	0.4725

Specifications:
Battery Size	D
Number of Cells	4
Material	Plastic
Connection	Snap
Dimensions	133 x 32 x 74mm

Battery holder moulded from thermoplastic, with nickel plated spring contacts. Suitable for four D size batteries

Order Code		1	10+	25+
010-022	4 x D Cell Battery Holder, Snap Fixing	1.23	0.98	0.784
