Lamp Socket Converters

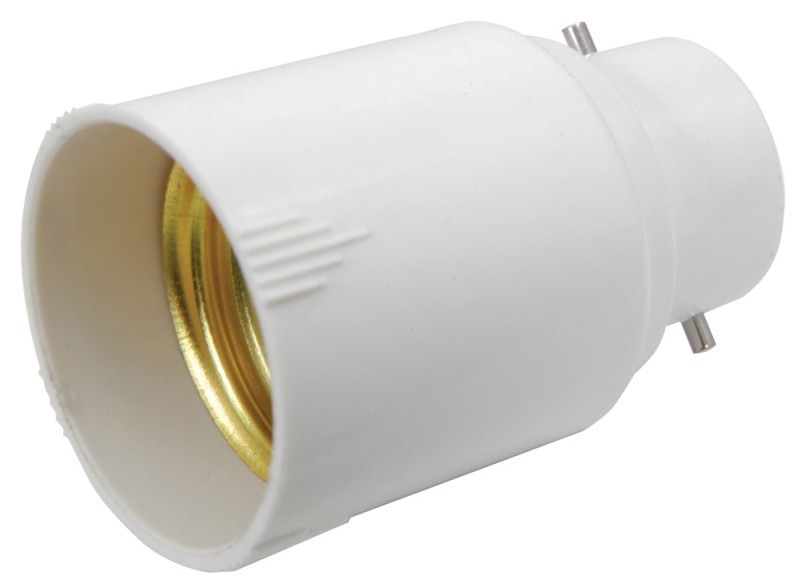

Lamp Socket Converter B22 - E27
Specifications:
Contacts Brass
Body Plastic
Maximum Load 60 Watts

Dimensions 50 x 35mmØ
Weight 18g
A lamp socket to convert a Bayonet cap fitting to an Edison screw fitting. Using this fitting will add 23mm to the total length.
  • Conforms to BS EN60238
Order Code   1 10+
605-190 Lamp Socket Converter B22 - E27 0.75 0.64

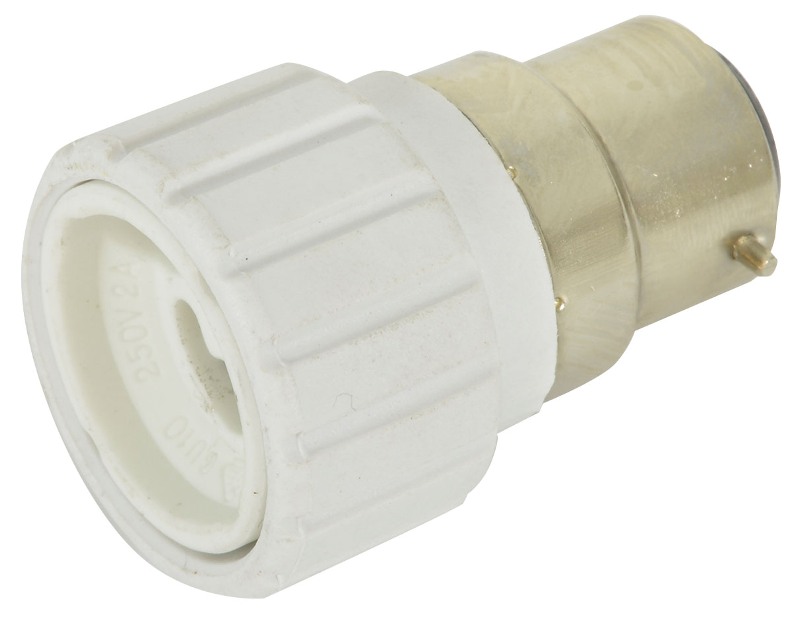

Lamp Socket Converter B22 to GU10
Specifications:
Contacts Brass
Body Ceramic
Maximum Load 60 Watts

Dimensions 54 x 35mmØ
Weight 40g
A lamp socket to convert a Bayonet cap fitting to a GU10 fitting. Using this fitting will add 39mm to the total length.
  • Conforms to BS EN60238
Order Code   1 10+
605-191 Lamp Socket Converter B22 to GU10 1.01 0.86



Lamp Socket Converter E27 to B22
Specifications:
Contacts Brass
Body Plastic
Maximum Load 60 Watts

Dimensions 50 x 32mmØ
Weight 18g
A lamp socket to convert an Edison screw fitting to a Bayonet cap fitting. Using this fitting will add 33mm to the total length.
  • Conforms to BS EN60238
Order Code   1 10+
605-193 Lamp Socket Converter E27 to B22 0.86 0.73

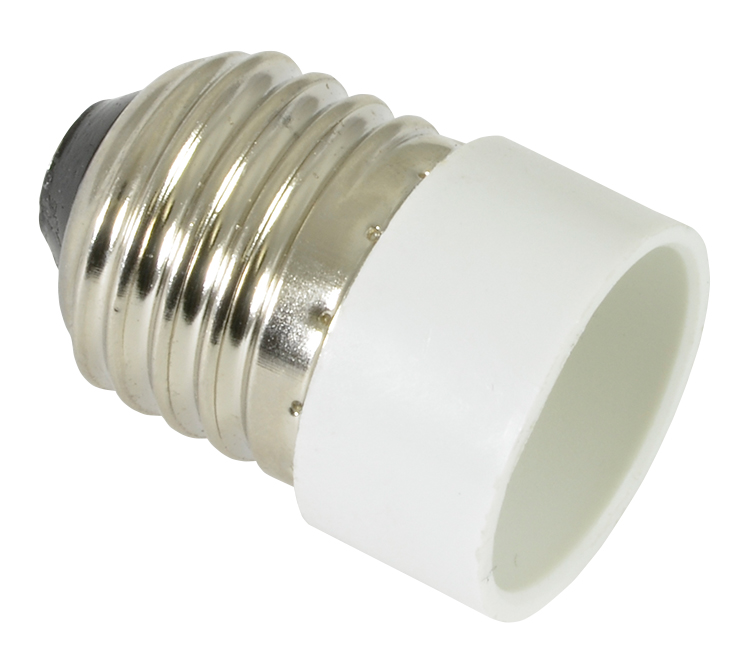

Lamp Socket Converter E27 to E14
Specifications:
Contacts Brass
Body Plastic
Maximum Load 60 Watts

Dimensions 42 x 29mmØ
Weight 15g
A lamp socket to convert a Edison screw E27 fitting to an Edison screw E14 fitting.
  • Conforms to BS EN60238
Order Code   1 10+
605-194 Lamp Socket Converter E27 to E14 0.74 0.63

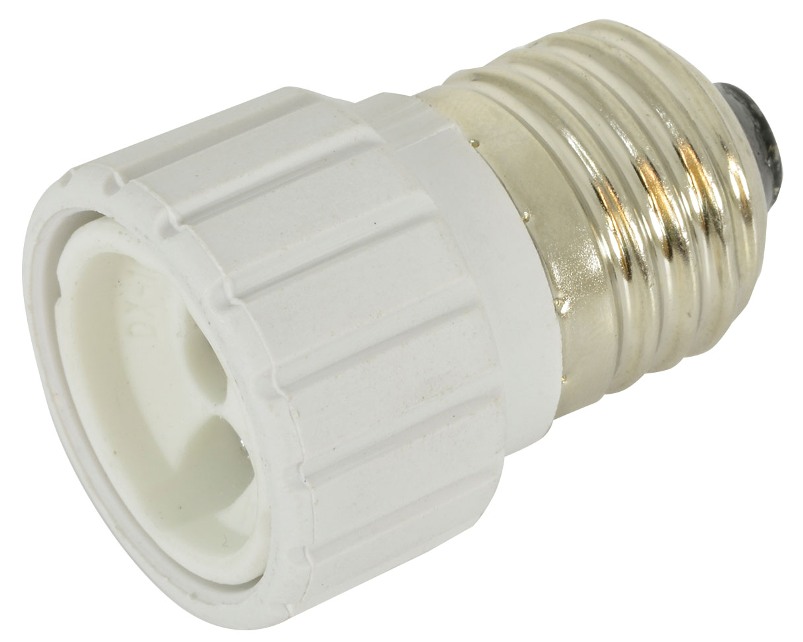

Lamp Socket Converter E27 to GU10
Specifications:
Contacts Brass
Body Ceramic
Maximum Load 60 Watts

Dimensions 54 x 35mmØ
Weight 40g
A lamp socket to convert an Edison screw fitting to a GU10 fitting. Using this fitting will add 46mm to the total length.
  • Conforms to BS EN60238
Order Code   1 10+
605-195 Lamp Socket Converter E27 to GU10 0.95 0.81

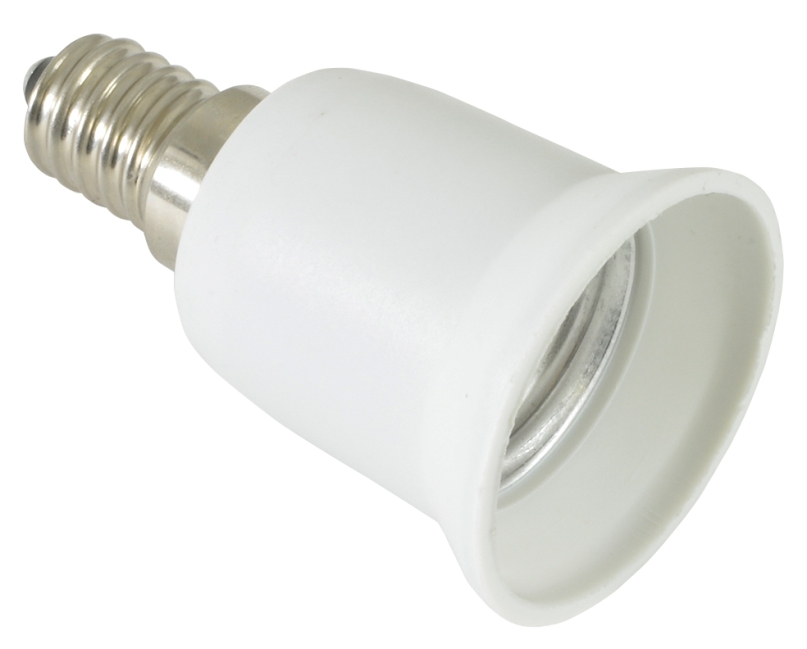

Lamp Socket Converter E14 to E27
Specifications:
Contacts Brass
Body Plastic
Maximum Load 60 Watts

Dimensions 65 x 40mmØ
Weight 20g
A lamp socket to convert a Edison screw 14 fitting to an Edison screw 27 fitting.
  • Conforms to BS EN60238
Order Code   1 10+
605-196 Lamp Socket Converter E14 to E27 0.74 0.63

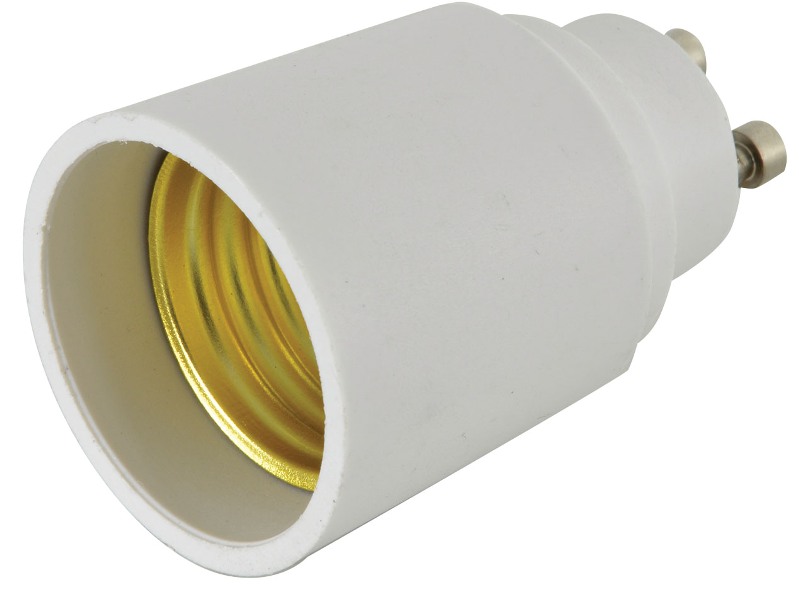

Lamp Socket Converter GU10 to E27
Specifications:
Contacts Brass
Body Plastic
Maximum Load 60 Watts

Dimensions 58 x 36mmØ
Weight 20g
A lamp socket to convert a GU10 fitting to an Edison screw fitting. Using this fitting will add 29mm to the total length.
  • Conforms to BS EN60238
Order Code   1 10+
605-198 Lamp Socket Converter GU10 to E27 0.74 0.63



GY9.5 Lamp Holder
Specifications:
Model
Rating 650W
Lamp Base GY9.5
Fixing Centres mm
Dimensions mm
Convert a GX16d ceramic lamp holder for use with GY9.5 Theatre Lamps. Used with Raylight reflectors in PAR Cans.
Order Code   Each
704-436 GY9.5 Lamp Holder 10.90
