Velleman Educational PC Oscilloscope Kit Velleman Kits

Whadda Educational PC Oscilloscope Kit

Spectrum Analyzer

Oscilloscope

Transient Recorder

Specification Features:

  • Oscilloscope:
    • bandwidth: DC to 200 kHz ± 3 dB
    • input impedance: 100 kohm / 20 pF
    • maximum input voltage: 30 V (AC + DC)
    • time base: 10 µs to 500 ms per division
    • input range: 100 mV to 5 V/division
    • input sensitivity: 3 mV display resolution
    • readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency…
    • record length: 1k samples
    • sampling frequency: 62.5 Hz to 1.5 MHz
    • sample history function
    • auto set-up function
    • pre-trigger function : on 0.1 ms/div .. 500 ms/div ranges
    • persistence options: Colour graded, Variable and Infinite
  • Spectrum analyser:
    • frequency range: 0 .. 150 Hz to 75 kHz
    • operating principle: FFT (Fast Fourier Transform)
    • FFT resolution: 512 lines

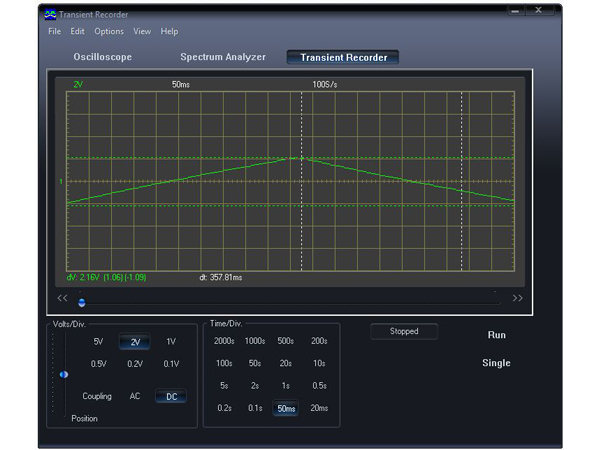

  • Transient recorder:
    • timescale: 20 ms/div to 2000 s/div
    • max. recording time: 9.4 h/screen
    • automatic storage of data
    • record and display of screens
    • automatic recording for more than 1 year
    • max. number of samples: 100/s
    • min. number of samples: 1 sample/20 s
  • General information:
    • markers for: amplitude/voltage and frequency/time
    • expert or basic mode selection in software
    • input coupling: DC and AC
    • 8 bit resolution
    • storage of display and data
    • power supply through USB: +/- 200 mA
    • uses Microsoft® human interface device (HID) driver, no external driver required
    • dimensions: 94 x 94 mm / 3.7 x 3.7"
  • Minimum system requirements:
    • IBM compatible PC
    • Windows® XP, Vista, 7, 8 *
    • SVGA display card (min. 1024 x 768)
    • mouse
    • free USB port 1.1 or 2.0

Read the fully Illustrated Manual for WSEDU09

PDF Download

Power Supply

5Vdc

Case



Dimensions

94 x 94mm

Weight

kg


Oscilloscopes are expensive and complicated instruments? Not this one! Build your own oscilloscope and use your PC to display your measurements. This small and easy to build kit has all the features of a full blown oscilloscope. Kit comes complete with detailed instructions and test leads.
Order Code   Each
WSEDU09 Whadda Educational PC Oscilloscope Kit 28.99
