Large 8.0mm LED's

Standard Diffused

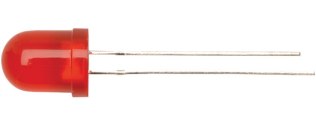

8mm Red LED

High intensity light emitting diodes of 8mm diameter in a diffused package. 2 lead devices. Anode (+ve) identified by long lead.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

RedDiffused30mA2.0V2.8V5.0V150@20mA50625nm
GreenDiffused25mA2.2V2.8V5.0V70@20mA50565nm
YellowDiffused30mA2.1V2.8V5.0V70@20mA50590nm



Order Code 125+50+100+
710-730Red 625nm0.130.100.090.08
711-730Green 565nm0.130.100.090.08
712-730Yellow 590nm0.130.100.090.08



Extra Bright

Extra Bright Red LED

Red Water Clear 8mm Led

A range of light emitting diodes of 8mm diameter. with very high luminous intensity in diffused or clear packages.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

RedDiffused30mA1.85V2.5V5.0V350@20mA60660nm
RedClear30mA1.85V2.5V5.0V450@20mA60660nm
RedClear30mA1.85V2.5V5.0V1600@20mA40660nm
RedClear30mA1.80V2.6V5.0V10000@20mA30625nm



Order Code 125+50+100+
710-750Red 350mcd0.150.120.10980.0976
710-752Red 450mcd0.160.130.1170.104
710-760Red 1600mcd0.150.120.10980.0976
710-762Red 10000mcd0.250.20280.16220.142
