1.8mm Sub Miniature LED's

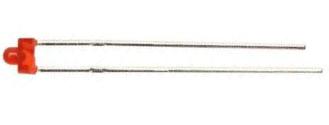

1.8mm LED

Diffused sub-miniature light emitting diodes of 1.8mm diameter, suited to through panel applications. Anode (+ve) identified by long lead.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

WhiteClear20mA2.9V3.6V3.0V5.0@20mA30
RedDiffused25mA2.0V2.5V5.0V3.2@10mA70700nm
GreenDiffused25mA2.2V2.5V5.0V20@10mA70565nm
YellowDiffused30mA2.1V2.5V5.0V20@10mA70590nm
OrangeDiffused30mA2.0V2.5V5.0V32@10mA70625nm



Order Code 125+50+100+
709-110White 0.370.32040.21360.1709
710-110Red 700nm0.150.12750.1020.0816
711-110Green 565nm0.140.11380.0910.0819
712-110Yellow 590nm0.110.09250.0740.0592
713-110Orange 625nm0.150.1220.10980.0976
