Infrared Devices

3mm Standard

Standard 3mm IR Diodes
Specifications:
Emitter Diode (720-310)
VF Max1.6V@20mA
Rise Time600ns
Radiant Power3.6mW
Peak Wavelength940nm
Photo Transistor (721-310)
VCEO Max30V
VCE Max5V
Power Dissipation Max100mW@25C
Light Current7mA@20mW/cm
Dark Current100nA@VCE=10V
Rise Time8s
Fall Time6s

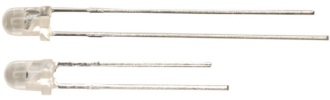

A pair of Infrared devices housed in a 3mm LED package. An emitter diode and photo transistor which can be used together and easily interfaced with logic devices. Anode (+ve) identified by long lead.
Order Code 125+50+100+
720-3103mm IR Emitter0.150.1160.10440.0928
721-3103mm IR Photo Transistor0.150.1160.10440.0928



5mm Standard

Standard 5mm Infrared Diodes
Specifications:
Emitter Diode (720-510)
VF Max1.7V
IF Max100mA
Radiant Power20mW
Power Dissipation120mW
Peak Wavelength880nm
Photo Transistor (721-592)
Breakdown (IR=100A)32V (Min)
Light Current (VR=5V)45A
Dark Current (VR=10V)2nA

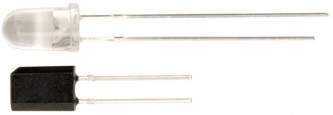

A pair of high power Infrared devices. The emitter is housed in a 5mm clear LED package and the PIN photo diode is housed in a square black epoxy moulding. Anode (+ve) identified by long lead.
Order Code 125+50+100+
720-5105mm IR Emitter0.200.180.160.14
721-5925mm IR PIN Photo Diode (Receiver)0.580.5220.4640.406

5mm Photo Transistor

5mm Infrared Diodes
Specifications:
Photo Transistor
VR Max50V
Power Dissipation100mW
Dark Current5nA
Rise/Fall Time5s
Peak Wavelength850nm
Acceptance Angle40
Infrared receiver with a medium beam angle, housed in a 5mm LED package.
Order Code 125+50+100+
721-5125mm IR PIN Photo Diode (Receiver)0.760.6840.6080.532



Infared Diode
Specifications:
ModelC-2771
Wavelength950nm
Beam Angle20 - 50
Power15mW
Current150mA
Supply Voltage1.7Vdc
Dimensions5mm
Weightg

A pack of 5mm infrared transmitter diodes. Can be used with C-7468 parabolic reflector to increase light concentration.

(Supplied as a pack of 10).

Order Code Each
721-5225mm Infrared Transmitter (Pack of 10)2.00



Photo Transistor
Specifications:
ModelC-2772
VR Max32V
Radiant Power100mW
Current6mA
Dimensions5mm
Weightg

General purpose 5mm phototransistor. Can be used with C-7468 parabolic reflector to increase light concentration.

(Supplied as a pack of 10).

Order Code Each
721-5205mm Infrared Receiver (Pack of 10)5.49
