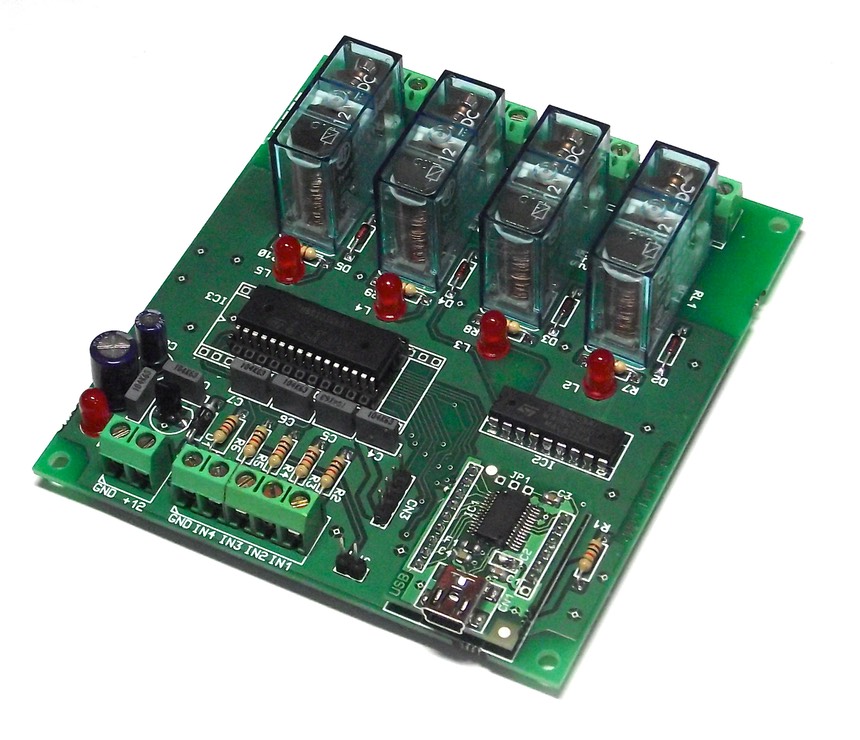

Cebek USB.T-101 USB 4-Channel Relay Board

Cebek USB.T101 Computer Controlled 4-Channel Relay Module

Cebek 4-Channel Computer Controlled Relay Module

Specifications:
Reference	USB.T101
Microcontroller	STM8S105K
USB	FT232RL



Relay Contacts	230VAC 3Amp
Power Supply	12VDC 250mA
Dimensions	98 x 107 x 27mm
Weight	188g

Technical Information >

Watch a Movie Clip >

Cebek USB.T101 is a computer controlled interface which
allow you to control four relays from your PC. It is designed to be connected to
a USB port on your computer, allowing you to remotely control four independent
single pole relays. The relays can be configured to operate in either momentary
action or latching according to your requirements. The USB.T101 also has LED's
fitted to indicate the operation of the relays.

Related Products::
Power Supply	FE-113

Downloads and Documentation:

Driver FTDI:

Link to the official website of FTDI, www.ftdichip.com. Provide users chips a simple procedure for installing the drivers for FTDI devices used under Windows. Download the driver for the OS installed on your PC.

Driver Manual FTDI:

Manual installation FTDI USB driver for operation with Cebek Interface circuits. Description detailed step by step in a Windows 7. The same procedure on different operating systems Microsoft Windows.

Program Cebek USB.T101:

The USB interface controller is an electronic circuit designed to be connected to a USB port on your computer, allowing you to remotely control the output voltage to regulate a 12Vdc lamp
