  Cebek Electronic Kits
Cebek USB.R40 Computer Controlled DC Voltage Regulator


Cebek Computer Controlled DC Voltage Regulator

Specifications:
Reference USB.R40
Microcontroller STM8S105K
USB FT232RL




Power Supply 12VDC 300mA
Dimensions 107 X 100 X 40mm
Weight 170g
Technical Information > Download the Handbook for full specifications and applications
Watch a Movie Clip >

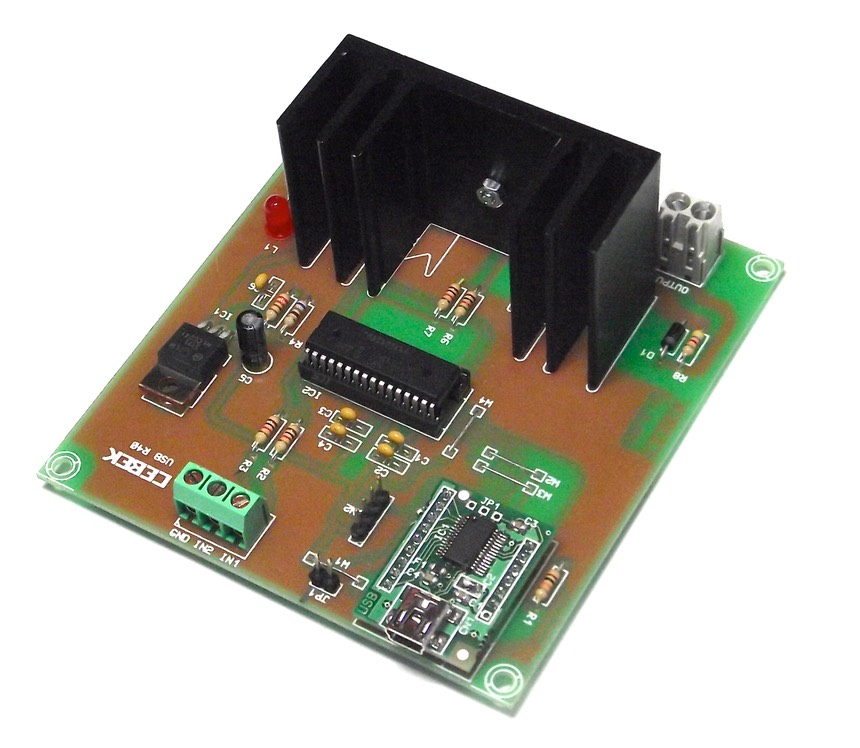

Cebek USB.R-40 is a computer controlled interface to enable you to control a DC voltage. It is designed to be connected to a USB port on your computer, allowing you to remotely control the output voltage to regulate a lamp or LED tape (0 - 12Vdc). A PCB mounted LED gives indication of regulators output. The interface also has the facility to connect switches to manually control the load.

Downloads and Documentation:

Driver FTDI:

Link to the official website of FTDI, www.ftdichip.com. Provide users chips a simple procedure for installing the drivers for FTDI devices used under Windows. Download the driver for the OS installed on your PC.

Driver Manual FTDI:

Manual installation FTDI USB driver for operation with Cebek Interface circuits. Description detailed step by step in a Windows 7. The same procedure on different operating systems Microsoft Windows.

Download the Handbook for full specifications and applications

Program Cebek USB.R40:

The USB interface controller is an electronic circuit designed to be connected to a USB port on your computer, allowing you to remotely control the output voltage to regulate a 12Vdc lamp



Order Code   Each
USB.R-40 Cebek Computer Controlled DC Voltage Regulator 41.08
