 Cebek Electronic Kits

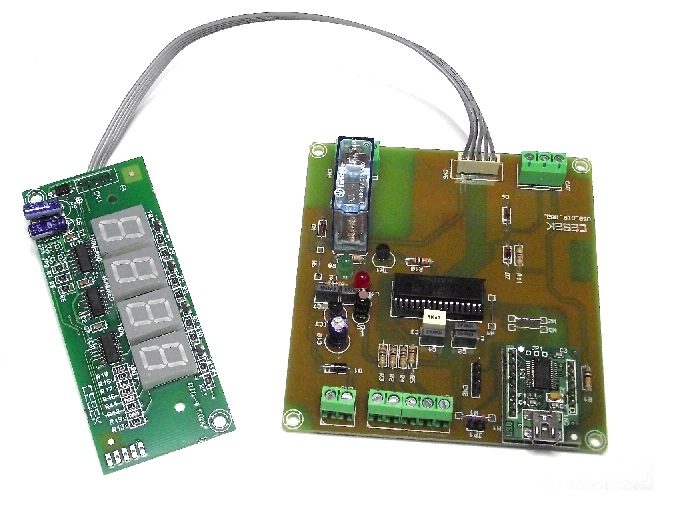

Cebek 4-Digit USB Timer/Stop Watch



Cebek 4-Digit USB Timer/Stop Watch

Specifications:
ReferenceUSB.CD-70
LED Display4-Digit
Range0 - 9999
Input5V minimum
RelaySPDT 3A
Consumption300mA
Power Supply12VDC
Dimensions (Main PCB)107 x 100 x 15mm
Weight134g
Technical Information >Download the Handbook for full specifications and applications
The Cebek USB.CD-70 module is a 4-digit Cebek USB interface is an electronic circuit designed to be connected to a USB port on your computer, allowing you to remotely control the various functions such as start / stop, the scale of work, and the password reset . The interface has some tickets for the manual control circuit. You can count up and count down from a DC voltage derived from a contact on the signal input. Count up function allows you to pre-select a number and once this number reach, the count up will be stopped and the relay is activated.
Downloads and Documentation:

Driver FTDI:

Link to the official website of FTDI, www.ftdichip.com. Provide users chips a simple procedure for installing the drivers for FTDI devices used under Windows. Download the driver for the OS installed on your PC.

Driver Manual FTDI:

Manual installation FTDI USB driver for operation with Cebek Interface circuits. Description detailed step by step in a Windows 7. The same procedure on different operating systems Microsoft Windows.

Download the Handbook for full specifications and applications

Program Cebek USB.CD-70:

The USB interface controller is an electronic circuit designed to be connected to a USB port on your computer, allowing you to remotely control the output voltage to regulate a 12Vdc lamp



Order Code Each
USB.CD-70Cebek 4-Digit Timer/Stop Watch with ½" LED Display60.04
