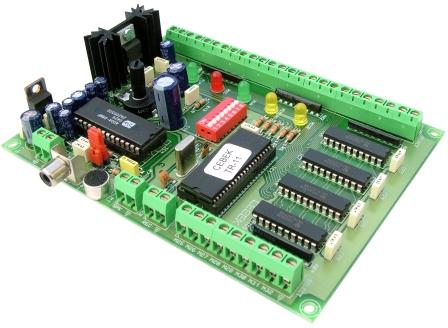

Cebek 32-Message Recorder Player with Amplifier



Cebek 32-Message Recorder Player with Amplifier

Specifications:
Reference TR-11
Rated Power (RMS) 5W

Input 30mV@56kΩ or Electret Microphone
Output Impedance 4 - 8Ω
Consumption 240mA
Power Supply 12VDC
Dimensions 72 x 100 x 30mm
Weight 190g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TR-10 is a voice, music or sound digital recorder/player module with 8 minutes as maximum capacity to store in its no volatile memory.  It allows to share the total time in a maximum of 32 messages of 15 seconds or to maintain a single message of 8 minutes. It includes the normal and the repetitive playing functions and the record can be done through a microphone or RCA input. It also includes power stage, volume control and indicator Leds.

Related Products::




Order Code   Each
TR-11 Cebek 32-Message Recorder Player with Amplifier 107.42
