  Cebek Electronic Kits

Cebek 8-Channel Infrared Transmitter



Cebek 8-Channel Infrared Transmitter

Specifications:
Reference TL-71
Number of Channels 8
LED's 4
Consumption 15mA
Power Supply 12VDC (23A Battery)
Dimensions 106 x 61 x 24mm
Weight 108g
Technical Information > Download the Handbook for full specifications and applications

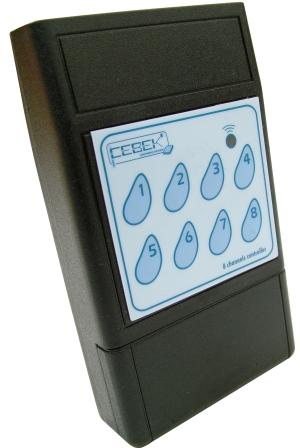

The Cebek TL-71 is a 8 Channels Infrared transmitter for remote control applications, allowing you to activate and deactivate devices. According to the model, and aiming at the corresponding receiver, you can control a maximum of 8 different outputs with a standard, flip flop or timed operating mode. It includes transmission indicator LED and battery.
Will Operate with the following Receivers
Four Channel Latching/Momentary or Timed TL-72
Eight Channel Latching/Momentary or Timed TL-73

Related Products::
Battery 23A


Order Code   Each
TL-71 Cebek 8-Channel Infrared Transmitter 32.43
