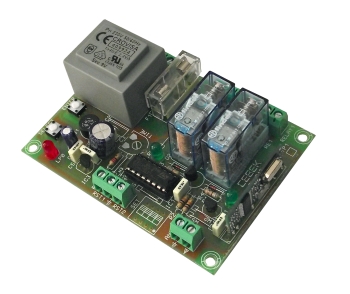

Cebek 2-Channel 230VAC RF Receiver


Cebek 2-Channel 230V RF Receiver
Specifications:
Reference TL-616
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 2
Relay Output SPDT 3A/230Vac
Consumption 2.4VA
Power Supply 230VAC
Dimensions 99 x 72 x 30mm
Weight 185g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-616 is a dual channel, receiver which incorporates feedback from the transmitter. The Receiver and Transmitter communicate with each other every 10 seconds. Should this link be broken the receiver will automatically revert to a 'safe' setting. This combination of Receiver/Transmitter is ideal were the receiver must have radio contact with the transmitter. (i.e. Remotely activated lights in a warehouse switch off if the link between receiver and transmitter are broken.) It is a Group 3 receiver and operates on a carrier frequency of 433.92MHz.
Will Operate with the following Transmitters
Two Channel 100m TL-327
Two Channel 300m TL-328

Related Products::
  FE-103
  FE-2

Order Code   Each
TL-616

Cebek 2-Channel 230V RF Receiver

37.32
