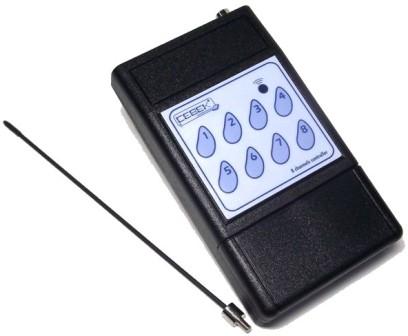

Cebek 8-Channel 300 metre RF Transmitter



Cebek 8-Channel 300 metre RF Transmitter

Specifications:
Reference TL-31
Group 2
Carrier Frequency 433.92 MHz
Number of Channels 8
Range 300m
Consumption 13mA
Power Supply 12VDC 23A Battery
Dimensions 106 x 61 x 24mm
Weight 114g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-30 is a powerful eight channel RF transmitter module with a range of approximately 300 metres for use with Cebek RF remote control receivers. Through the Certified radio frequency signal of 433.92 MHz. the transmitter will emit a coded signal to the receivers, allowing it to switch off or on the receivers relay. To personalise remote controls you have more than 13,122 combinations to select from, the required code is easily selected thanks to the DIL switch fitted on the PCB. Supplied with battery, case and antenna.
Will Operate with the following Receivers
Four Channel (12Vdc) Momentary Action TL-22
Four Channel (12Vdc) Latching Action TL-23
Single Channel (12Vdc) Latching/Momentary TL-26
Two Channel (12Vdc) Latching/Momentary TL-27

Related Products::
Battery 23A

Order Code   Each
TL-31 Cebek 8-Channel 300 metre RF Transmitter 55.50
